Imex LX3DG Green Beam Cross Line Laser Level - 3 x 360° Lines
ref: LX3DG
Strengths and benefits

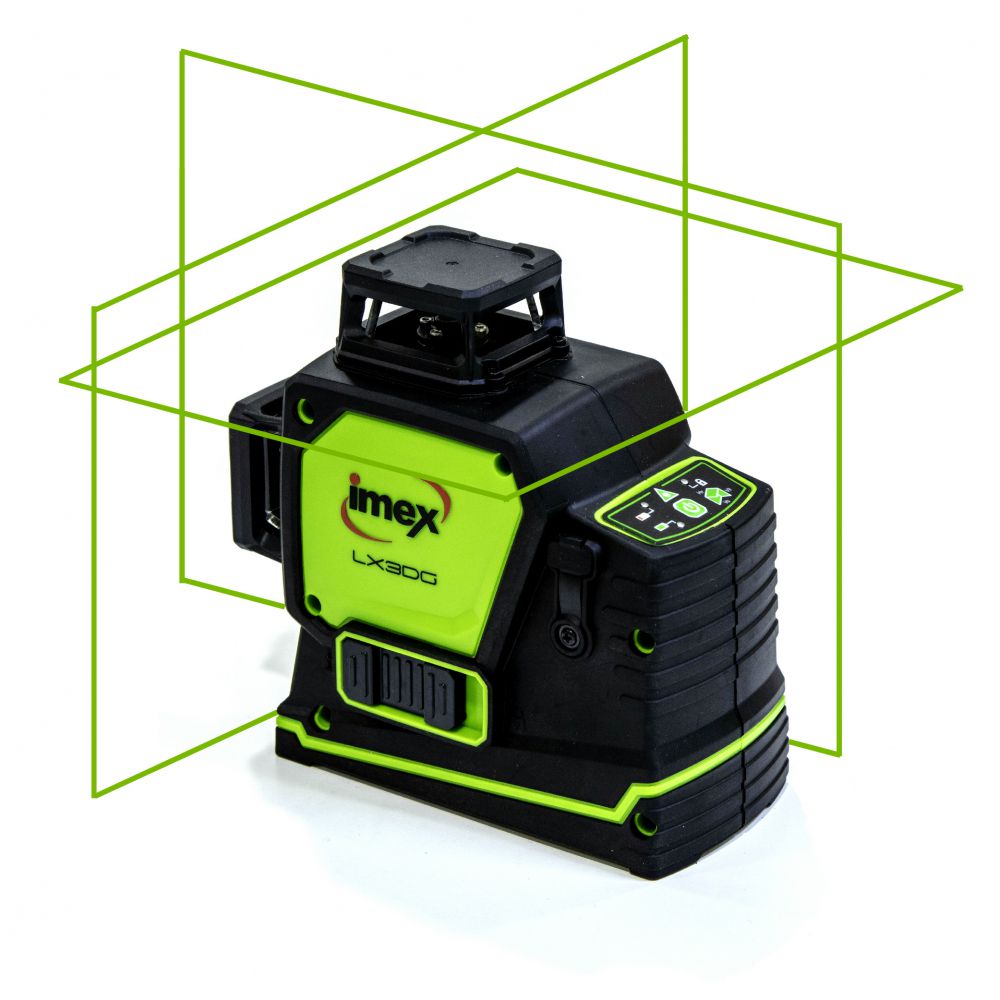

The Imex 3-Dimensional, self levelling line lasers are the most popular and most versatile lasers in the range. The laser lines give a full 360° horizontal line and two 360° vertical lines 90° to each other offering ultimate levelling capability combined with powerful hyper-bright laser line technology.
The LX3D laser has been designed to run on Li-Ion battery power, giving the users the flexibility to charge the laser on site or when not in use. Also included in the LX3D kit is a second battery pack unit where standard alkaline batteries can be used in the laser when needed.
The outdoor mode gives a greater laser working range and application flexibility. When used with the Imex LD1/G1 laser detector, users can extend their working range up to 80m outdoors where the line is no longer visible. Press and hold the power button to switch the laser to outdoor mode enabling the use of the detector.

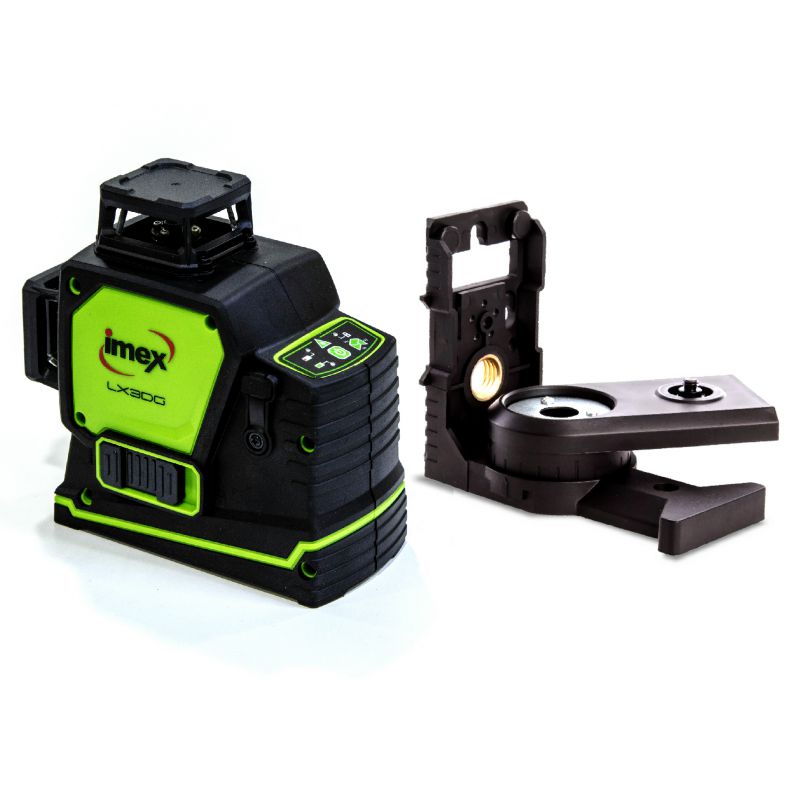

Included as standard in the LX3D kit is the ceiling bracket. When used with the standard magnetic base bracket, users can mount their line laser in elevated positions, the perfect solution to suspending ceiling installs. The ceiling bracket is fully adjustable increasing accuracy and flexibility.
Key Features
22 hours single beam run time, 8 hours all beams Lion Battery
7 hours single beam run time, 3 hours all beams Alkaline Battery
Lockable pendulum to protect the laser diodes while on the move
Pulse mode can be used with a receiver (you can also take it off pulse mode so it’s brighter for use without the receiver)
1m drop test winner
Long-range, 30m indoors, 80m outdoors with detector
70° oven test winner
Lithium batteries – 7200AH – long run time
USB Charging Port
Hyper bright lines
Magnetic bracket
Self-levelling
Lock mode for fixed angles
Hard Case Included
Applications
Shopfitting and cabinet installation
Wall and floor tiling
Wall Partitions
Electrical switch and light placement
Steel fabrication alignment and set out
Interior decorating
Window and door placement
Specification
Light Source diode: 520nm Green diodes
Output: Laser Class II
Accuracy: +/-2mm @ 10m
Beams: 1 x horizontal – 360° 2 Vertical – 360°
Damping type: Self Levelling - Magnetic
Hours of continuous use: Approximately 20 hours - all lasers
