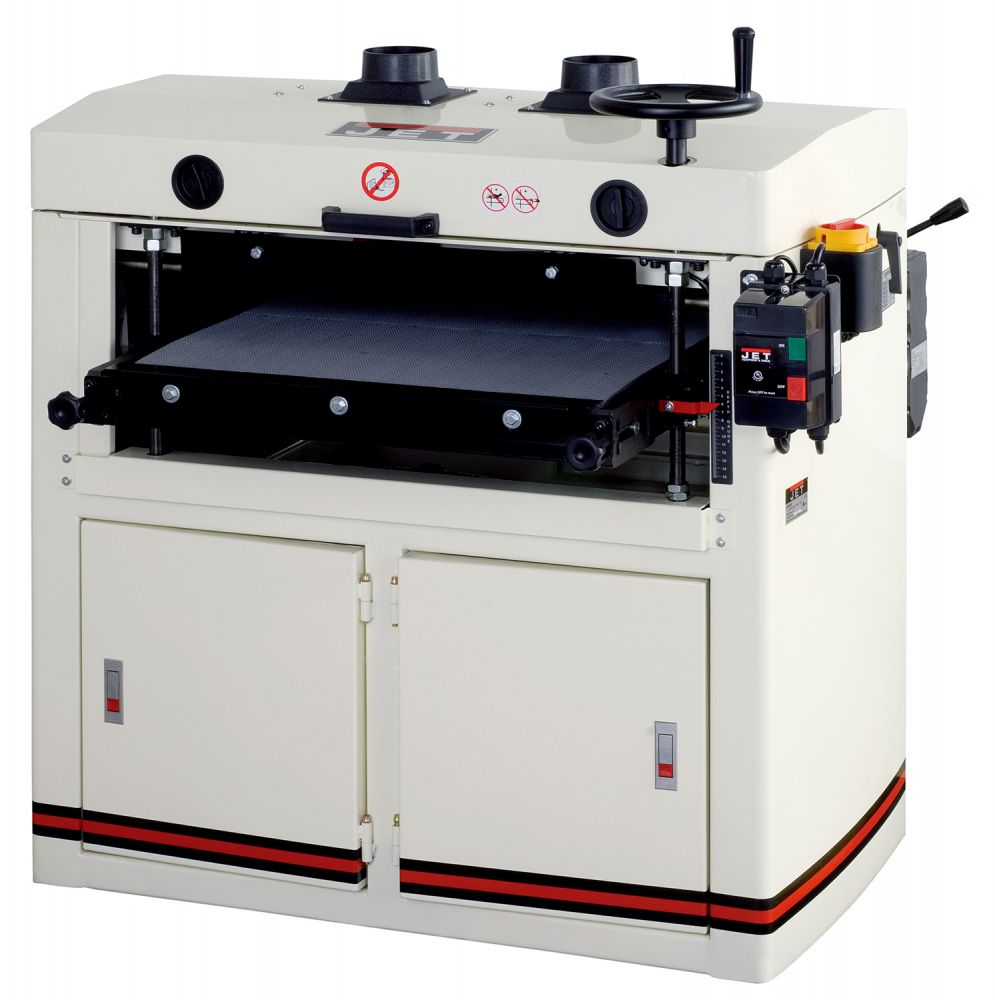

Jet DDS-225-T DUAL DRUM SANDER

JET DUAL DRUM SANDER
Ref: DDS-225-T

• 5.5kW 415 volt 3phase motor for high removal rate
• Heavy-duty construction suitable for continuous commercial operation
• Steel drums with hard rubber coating for completely level, smooth surfaces

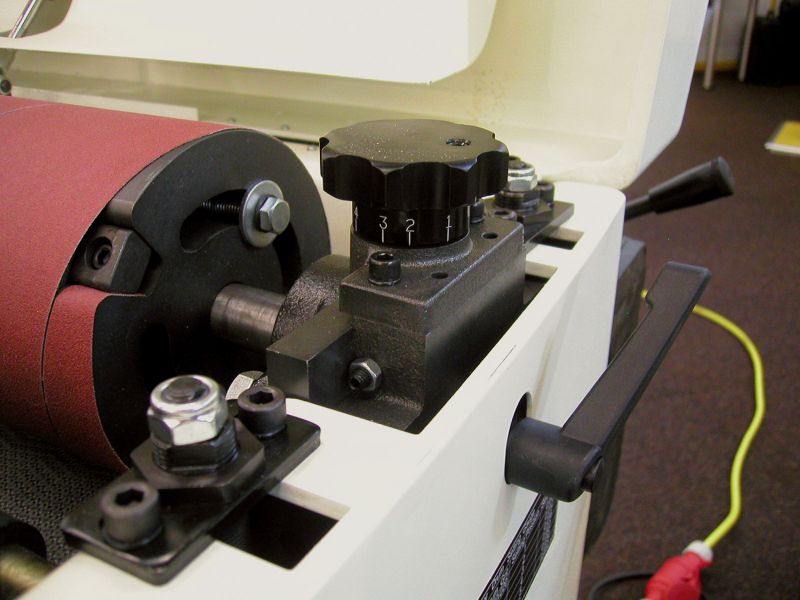

• Independently adjustable rear drum for controlled chip removal independent of the abrasive block diameter

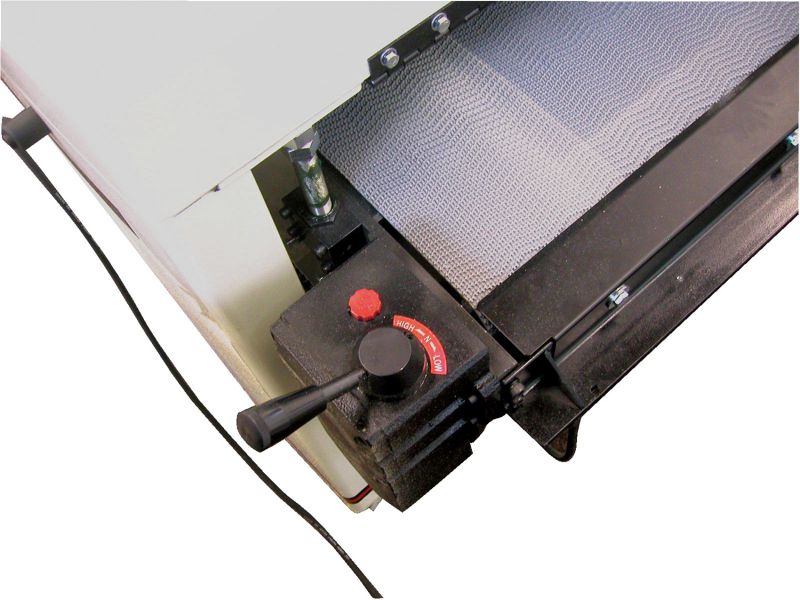

• Two-speed feed gear adjustable to different types of wood
• Heavy cast iron feed bed, accurately guided in four spindles
• Drum hood with dual extractor outlet and guide plates for efficient dust removal
• Digital height display, quick and easy adjustment to the required measurement
• Sanding belts with widths of 75mm or 100mm can be used

• Motor (V/kW): 400v/5.5hp
• Drum speed (rpm): 1'400
• Drum dimensions (ø-mm): 152×635
• Sanding speed (m/s): 11.1
• Feed speed (m/min): 2+3
• Maximum sanding width (mm): 635
• Minimum sanding length (mm): 230
• Max./min. sanding strength (mm): 133/0.8
• Dust port (ø-mm): 2×100
• Dimensions (mm): 1'230×1'140×1'150
• Weight (kg): 332

• Motor KW: 400v/5.5hp
• Feed Speed: 2+3
• Dimensions L x W x H: 1'230×1'140×1'150
