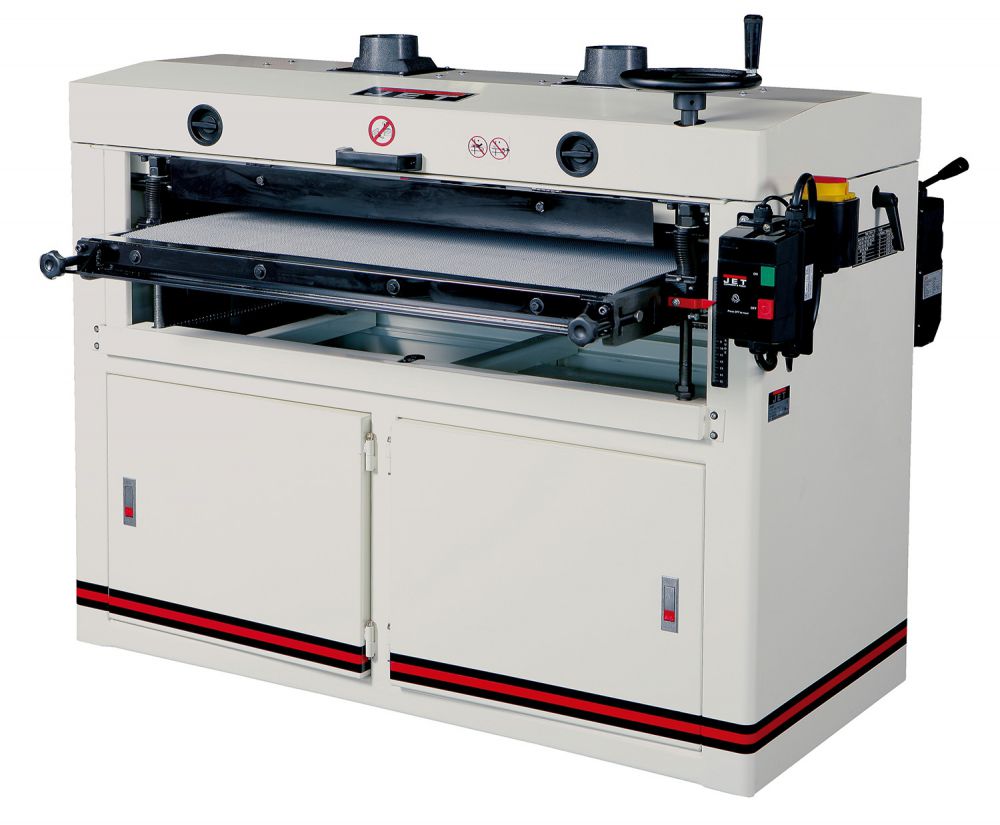

Jet DDS-237-T DOUBLE DRUM SANDER

JET DUAL DRUM SANDER
Ref: DDS-237-T

• 8.5kW motor for high removal rate
• Heavy-duty construction suitable for continuous commercial operation

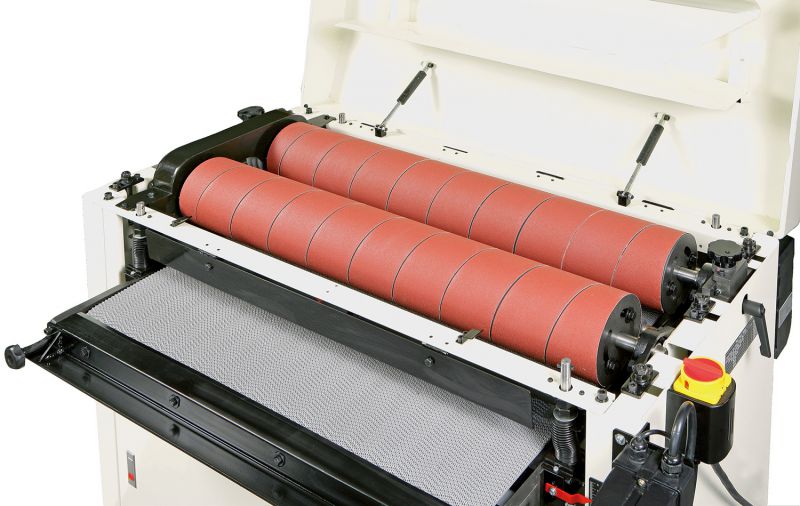

• Steel drums with hard rubber coating for completely level, smooth surfaces
• Independently adjustable rear drum for controlled chip removal independent of the abrasive block diameter
• Two-speed feed gear adjustable to different types of wood
• Heavy cast iron feed bed, accurately guided in four spindles
• Drum hood with dual extractor outlet and guide plates for efficient dust removal

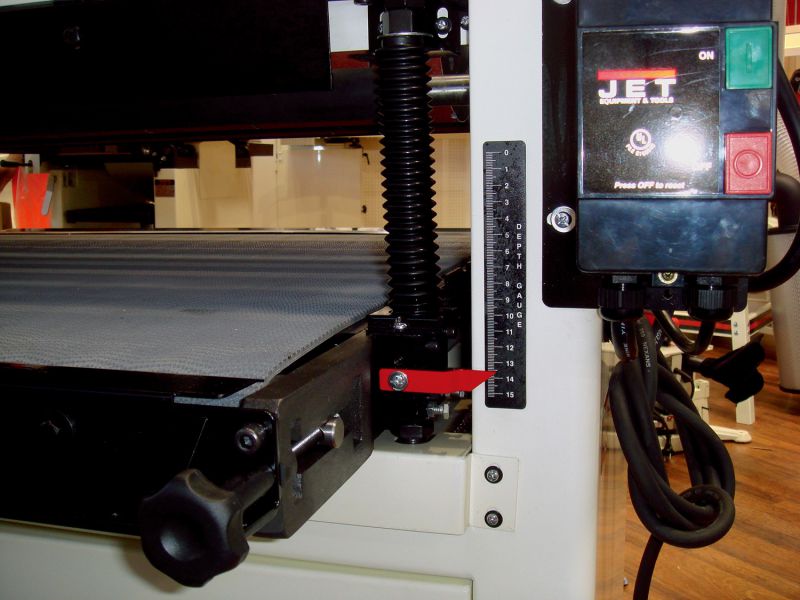

• Digital height display, quick and easy adjustment to the required measurement
• Sanding belts with widths of 75mm or 100mm can be used

• Main Motor (V/kW/hp): 400/8.5kw/11.5hp input S6 40%
• Main Motor (V/kW/hp): 400/5.5kw/7.5hp output S1
• Drum speed (rpm): 1'400
• Drum dimensions (ø-mm): 152×940
• Conveyor Motor 0.18kw/0.25hp S1
• Sanding speed (m/s): 11.1
• Feed speed (m/min): 2 and 3
• Maximum sanding width (mm): 940
• Minimum sanding length (mm): 230
• Max. /min. sanding strength (mm): 133/0.8
• Dust port (ø-mm): 2×100
• Dimensions (mm): 1'520×1'140×1'150
• Weight (kg): 437

Jet DDS-237 Drum Sander Manual
