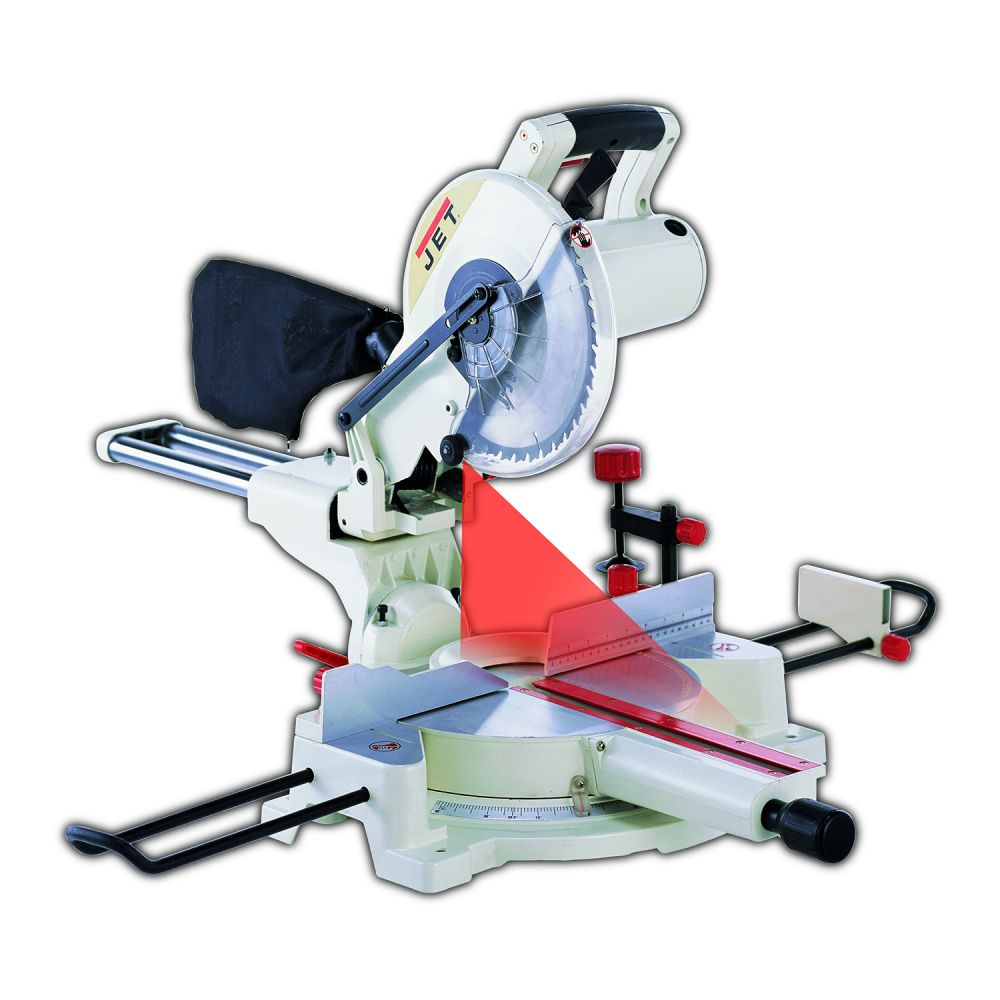

Jet JSMS-10L-M Slide Compound Mitre Saw 230V

JET SLIDE COMPOUND MITRE SAW 230V
Ref: JSMS-10L-M

• Powerfull 1.5kW motor with brake system
• Table extensions up to 1'030mm
• Integrated spindle lock for easy blade change
• Lightweight die cast aluminum design for easy transport
• Hold-down clamp tightens securely to the work piece to ensure an accurate cut
• Innovative XACTA Laser™ provides high visibility for precision cutting
• Integrated bevel stops at 0° and 45°

• Motor (V/kW): 230/1.5
• Blade speed (U/min): 4'500
• Blade-size/bore (ø-mm): 254/30
• Max. cutting depth/height at 90° /45° (mm): 90/42
• Max. length of cut at 90° /45° (mm): 305/215
• Miter gauge angle: 0°–45°, right und left
• Index options: 0° /15° /22.5° /30°
• Saw blade tilt: 0°–45°, left
• Dimensions (mm): 1'047×911×597
• Weight (kg): 18

• Motor KW: 230/1.5
• Blade Speeds: 4'500
• Blade Size: 254/30
• Dimensions L x W x H: 1'047×911×597
