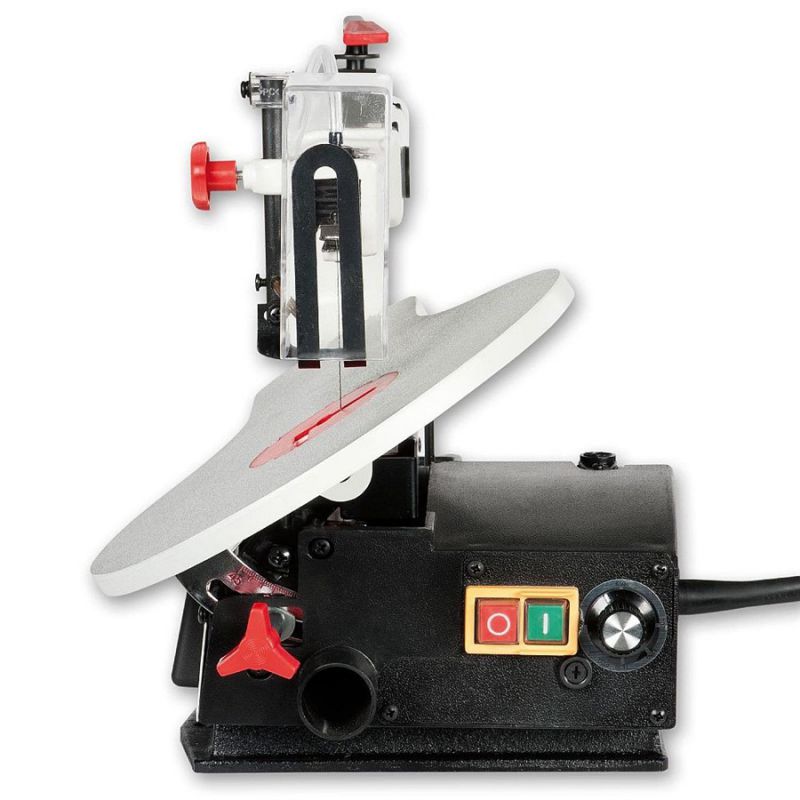

Jet JSS-16A-M Scroll Saw Bench Top Variable Speed 230V

JET Bench Top Variable Speed Scroll Saw 230V
Ref - JSS-16A-M

• Table tilts up to 45°.
• Table blow out for an easier and more accurate cut.
• Strong commutator motor.
• A cast-iron base for improved stability and low vibrations.

• The JET Electric Scroll Saw comes equipped with a powerful commutator DC motor with a variable regulation of speed (550-1600 / min). That is why it can handle a wide range of materials up to 50 mm thick. The dust extraction outlet is 35 mm. The generously large table (410 x 254 mm) has a maximum width of cut 510 mm and may be tilted to up to 45°. The saw comes equipped with a pin clamping of saws. The release control wheel allows for a quick and simple swap. The ventilator keeps your workspace clean and well visible. The heavy cast-iron base offers stability and minimizes vibration.

• Type: JSS-16
• Rating: Hobby
• Power Input (230 V): 90 W
• Vibration speed: 550 - 1600 / min
• Saw blade length: 127 mm
• Saw blade travel: 15 mm
• Saw blade width: min. / max. 0,5 mm / 2,8 mm
• Maximum width of cut: 510 mm
• Max height of cut at 90°: 50 mm
• Table size: 410 x 253 mm
• Table tilt: 0° to 45°
• Dust extraction: 35 mm
• Length x width x height: 620 x 285 x 325 mm
• Weight: 11.5 kg

Jet JSS-16 Scroll Saw Owners Manual
