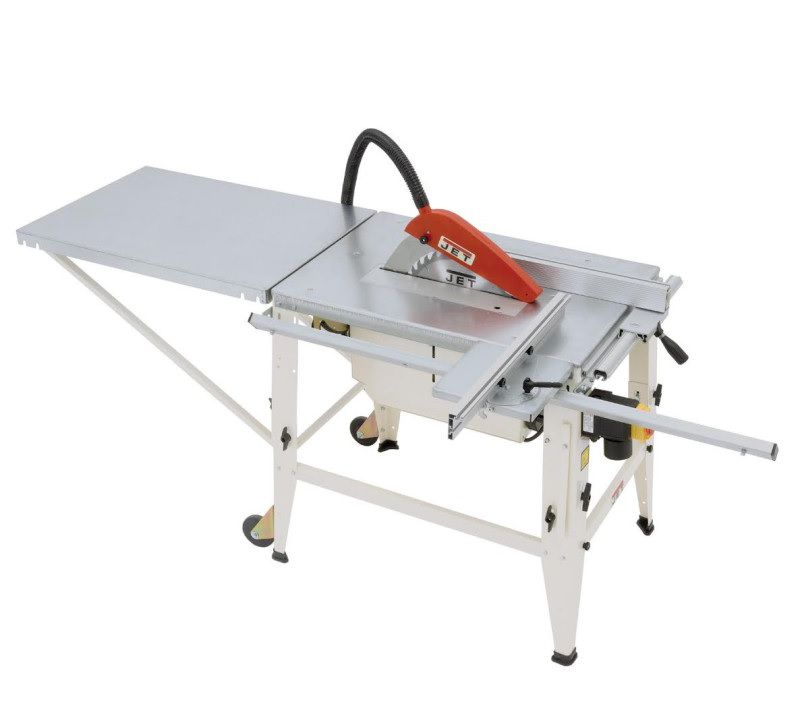

Jet JTS-315SP-M TABLE SAW - 230V - with Sliding Table

JET TABLE SAW 230V
Ref: JTS-315SP-M

• Foldable legs and bayonet mounted rear table extension facilitate quick machine start-up
• Powerful motor with brake, suitable for continuous operation
• Galvanized steel machine table withstands corrosion and wear
• Anodized aluminium table insert
• Sliding table with ball bearings moves accurately for straight and angled cuts
• Convenient blade tilt up to 47° via hand wheel, adjustable stop at 0°
• Transport device facilitates simple change of positions
• Left Hand sliding table is included with this item
• Right Hand Rip Table Extension not included

• Motor (V/kW) 230/2.2
• Blade speed (U/min) 2'950
• Blade-size/bore (ø-mm) 315/30
• Mitre capacity 0 – 47°
• Max. cutting depth at 0° /45° (mm) 90/60
• Max. cutting width (mm) 310
• Table size (mm) 800×550
• Extension size (mm) 800×550
• Precision sliding table (mm) 250×230
• Max. length of cut (mm) 600
• Dimensions (mm) 2'050×970×1'000
• Weight (kg) 69

• Motor KW: 230/2.2
• Table Size: 800×550
• Blade Speeds: 2'950
• Blade Size: 315/30
• Dimensions L x W x H: 2'050×970×1'000
