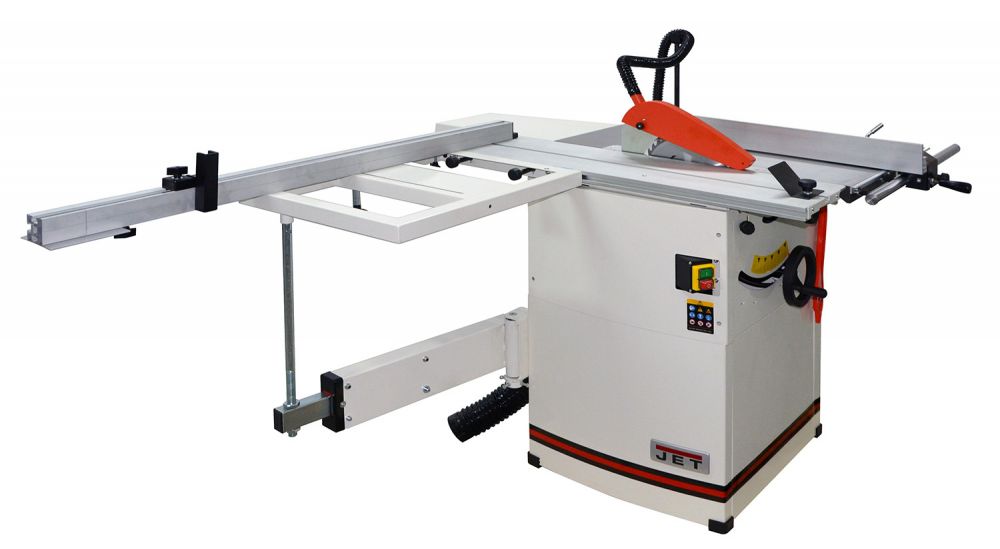

Jet JTS-600X-M TABLE SAW - 230V

JET TABLE SAW 230V
Ref: JTS-600X-M

• Cast iron table guarantees accurate cuts
• Format sliding table made of extruded aluminum, precision machined and anodized
• Sturdy rip fence with integrated micro-adjustment on round-bar guide
• Large grey cast hand wheels for easy operation
• Outrigger table 460×600mm with pull-out mitre fence 2'200mm

• Motor (V/kW): 230/2.1
• Blade speed (U/min): 4'000
• Blade-size/bore (ø-mm): 250/30
• Mitre capacity: 0° – 45°
• Max. cutting depth at 0° /45° (mm): 80/54
• Max. cutting width (mm): 610
• Table size (mm): 800×350
• Extension size (mm); 415×350
• Table extension right (mm): 800×270
• Precision sliding table (mm): 1'000×255
• Max. length of cut (mm): 610
• Dimensions (mm): 1'400×2'200×1'100
• Weight (kg): 145

• Motor KW: 230/2.1
• Table Size: 800×350
• Blade Speeds: 4'000
• Blade Size: 250/30
• Dimensions L x W x H: 1'400×2'200×1'100
