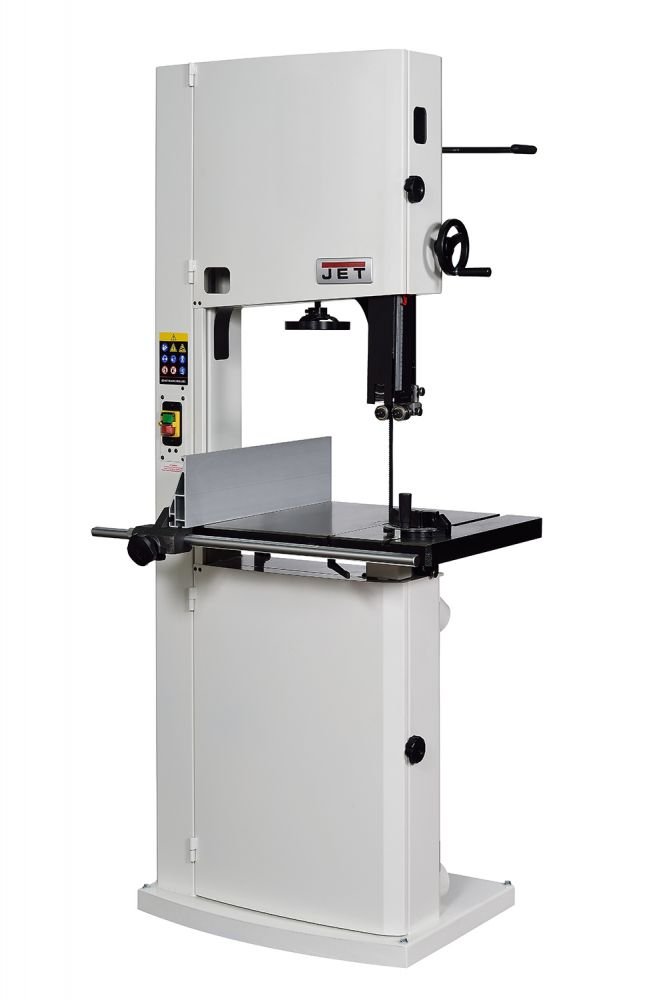

Jet JWBS-18-T BANDSAW 460mm 400V

JET BANDSAW 460MM 400V - JWBS-18-T

• The powerful 3.7kW (5hp) motor provides reserves for difficult crosscuts and in continuous operation
• Precision-planed cast iron table for added stability and workpiece support
• Saw blade quick release and tensioning system
• Two cutting speeds (640, 1'200m/min) for working efficiently with hard and soft woods
• Electro-mechanical motor brake
• Tool-free, independently adjustable ball bearing guide system for quick and easy adjustments and smooth operation
• Sturdy parallel fence with integrated fine-tuning, operated on a round rod
• Heavy-duty guide post adjusted via a toothed rack and handwheel for optimal saw blade support
• Solid construction, stable and torsionally rigid

• Motor (V /kW): 230 /3.7
• Wheel diameter (ø-mm): 514
• Max. cutting height /-resaw capacity (ø-mm): 406 /508
• Table tilt: 5° left, 45° right
• Table size (mm): 690 ×808
• Blade speed (m /min): 640 /1'200
• Saw blade (mm): 4'013
• Saw blade width min /max. (mm): 3 /38
• Blade guide: Ball bearing
• Table height from floor (mm): 940
• Miter t-slot (mm): 19 × 9
• Dimensions (mm): 940 ×845 ×2'235
• Weight (kg): 276
• Dust port (ø-mm): 100

• Motor KW: 230 /3.7
• Table Size: 690 ×808
• Blade Speeds: 640 /1'200
• Wheel Size: 514
• Dimensions L x W x H: 940 ×845 ×2'235
