Jet JWDS-2244OSC-M Oscillating Drum Sander

X
Product Code: JET/JWDS-2244OSC-M
Brand: JET
Available to Pre-Order
Delivery TBA - Please Call
£5,159.13 Inc. VAT
£4,299.27 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
JET

JET Oscillating Drum Sander - JWDS-2244OSC-M



Key Features

  • Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
  • Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4" collection port
  • Exclusive variable speed oscillating drum moves from left to right—minimizing visual scratch patterns in workpieces and increasing the lifespan of abrasive paper.
  • Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
  • Mobile cabinet features a heavy duty 45" x 24" footprint to increase stability and has a door to keep items stored securely
  • One rotation of the top-position hand wheel adjusts the drum height by 1/16"
  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and has 3/4" of oscillating stroke
  • Redesigned conveyor system pulls the work piece through the sander instead of pushing
  • Sandsmart™ control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
  • Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the work piece

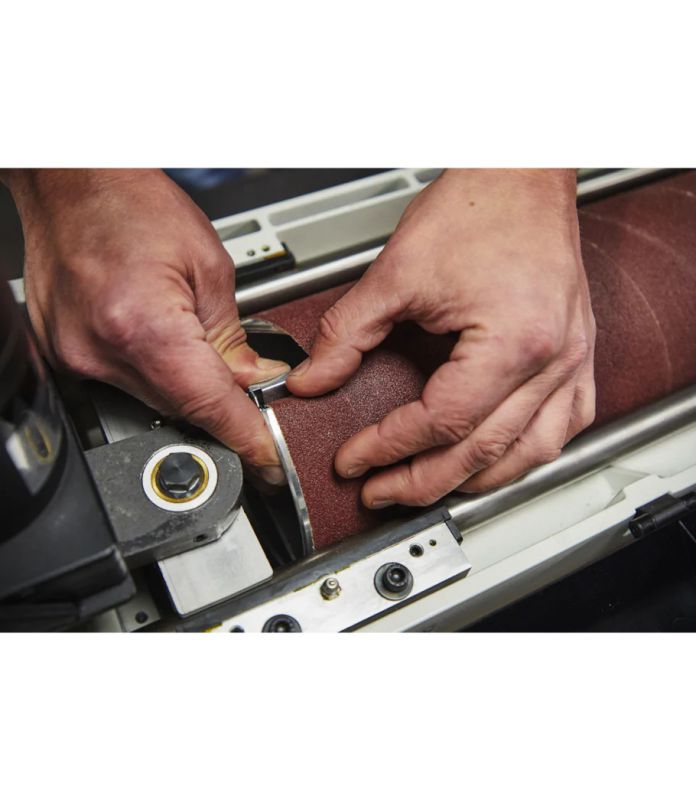

  • Tool less abrasive take-up clips make changing abrasives quick and easy



Strengths and benefits

  • The newly re-designed 2244 Oscillating Drum Sander from JET has an exclusive oscillating feature that helps create the best sanding finish with the least amount of dust.
  • When in the oscillating mode, the sanding drum head oscillates from left to right which lowers heat build-up on the sanding belt, reducing loading and burning.
  • The innovative tool-less parallelism system keeps adjustments simple.
  • The worktable is easily positioned by a turn of the parallelism dial.
  • The Sandsmart™ conveyer system continuously monitors the load on the drum motor to prevent an overload situation.
  • The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish.
  • The JET 2244 Oscillating Drum Sander delivers everything you need for an effortless finish.



Specification

  • Drum Diameter (In.): 5
  • Maximum Board Thickness (In.): 4
  • Minimum Board Length (In.): 2-3/8
  • Minimum Board Thickness (In.): 1/32
  • Weight (Lbs.): 216.0000
  • Motor Power (HP): 1-3/4
  • Dust Port Outside Diameter (In.): 4
  • Motor Amps: 15
  • Recommended Circuit Size (Amps.): 20



JWDS-2244OSC-M Operating Manual
