Jet JWL-1221VS Wood Lathe (CE)

Jet JWL-1221VS WOOD LATHE (CE)

• Heavy, extra-wide cast iron machine bed for the ultimate in smooth operation and stability when working on unbalanced pieces

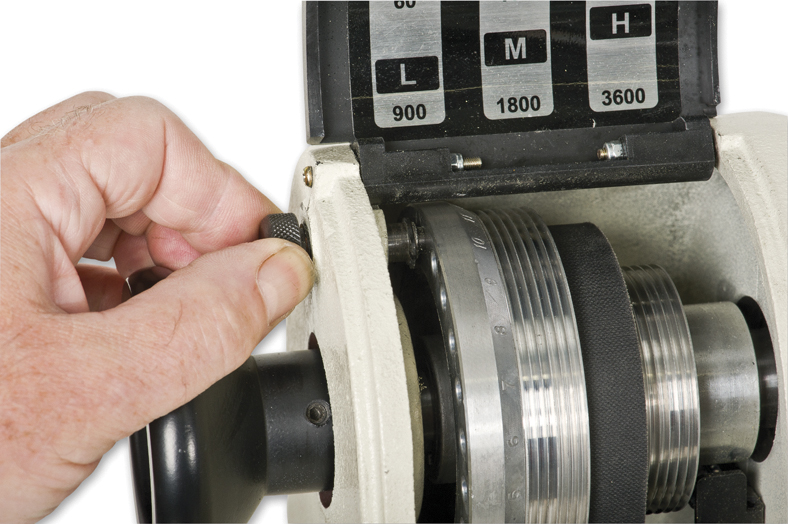

• Infinitely variable speed control with 3 belt speeds, from 60 to 3'600rpm (JWL-1221VS-M)
• Smooth shift from forward to reverse running, digital speed display
• The Smart Control electronic control system ensures maximum torque, beneficial for turning large pieces (JWL-1221VS-M)
• Smooth-running poly-v belt drive suitable for continuous operation, patented one-handed quick-tensioning belt system
• Integrated spindle indexing device 24×15° for hole patterns and decorative work
• Spindle lock on the front of the headstock to easily change the face plate and turning chuck

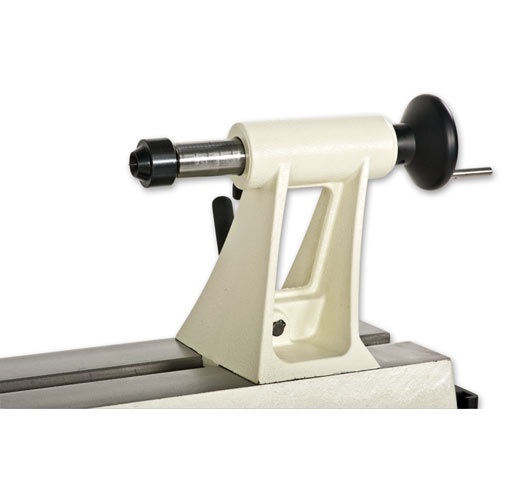

• Tailstock quill with 9mm hole allows material to be drilled through
• Three spindle speeds: 60–900/110–1'800/220–3'600 (JWL-1221VS-M)

• Motor (V/kW): 230/0.95
• Swing over bed (mm): 318
• Swing over tool rest base (mm): 240
• Centre distance (mm): 500
• Spindle speeds (rpm): 60–3'600, variable
• Spindle nose: M33×3.5
• Spindle index lock: 24×15°
• Headstock spindle taper: MT2
• Tailstock spindle taper: MT2
• Tailstock hole diameter (mm): 9

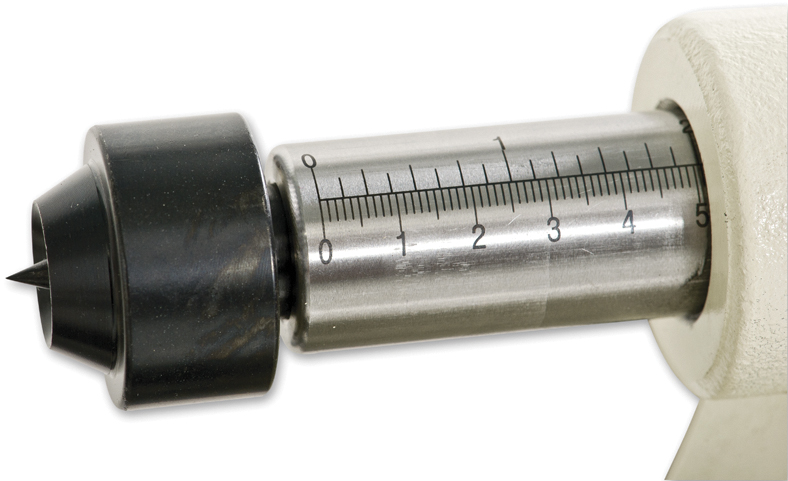

• Tailstock ram travel (mm): 57
• Steel support (ø/mm): 150+250/15.9
• Dimensions (mm): 900×360×530
• Weight (kg): 55
