Jet JWL-1640EVS-M WOOD LATHE

JET Wood Lathe - JWL-1640EVS-M

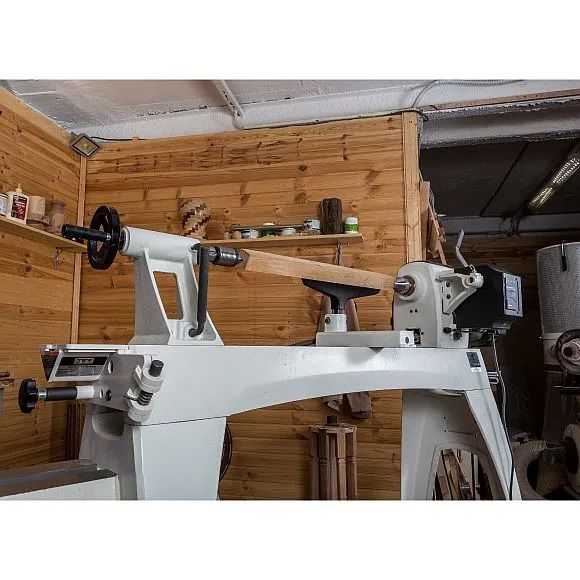

• The headstock moves across the whole machine bed and pivots by 360° for maximum versatility
• The main spindle is supported on three bearings for greater rigidity and load-bearing capacity
• Infinitely variable, adjustable speeds using a frequency converter, from 40–3'200 rpm with 2 belt speeds

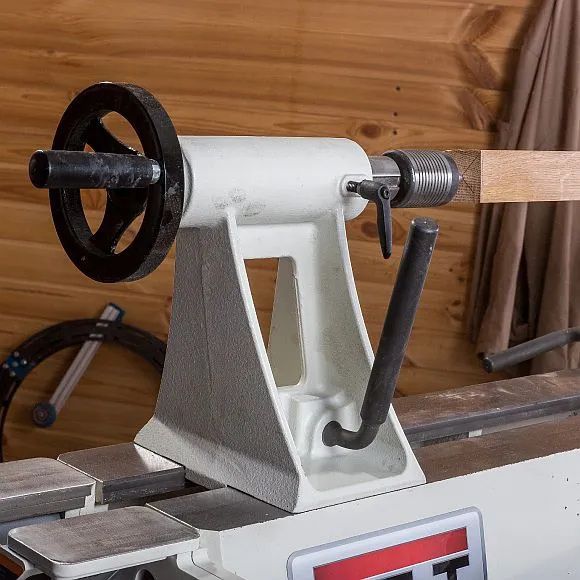

• Tailstock with heavy-duty Acme thread, quill with anti-rotation key, with mm scale
• Double-wedge clamping for tool rest and extension, load-bearing, efficient, holds position securely
• Spindle lock for two-handed changing of the faceplate and turning chuck
• Integrated spindle indexing device 36×10° for hole patterns and decorative work

• Motor (V/kW): 230/1.8
• Swing over bed (mm): 418
• Swing over tool rest base (mm): 325
• Centre distance (mm): 940 (990 with short trading grains)
• Spindle speeds (rpm): 40–3'200, variable
• Spindle nose(mm): M33×3.5
• Spindle index lock: 36×10°
• Headstock spindle taper: MT2
• Tailstock spindle taper: MT2
• Tailstock hole diameter (mm): 9
• Tailstock ram travel (mm): 108
• Steel support (ø/mm): 350/25.4
• Dimensions (mm): 1'854×508×1'334
• Weight (kg): 170
