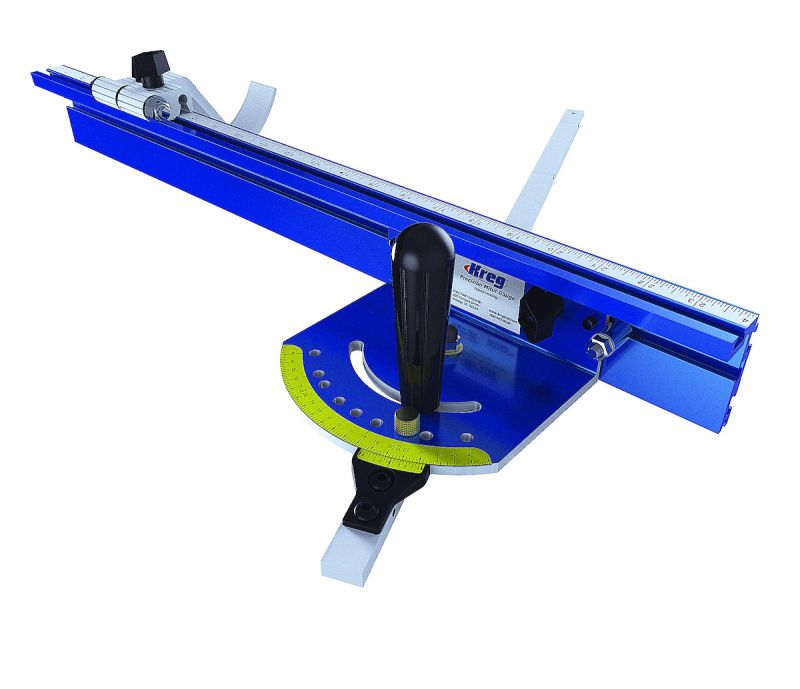

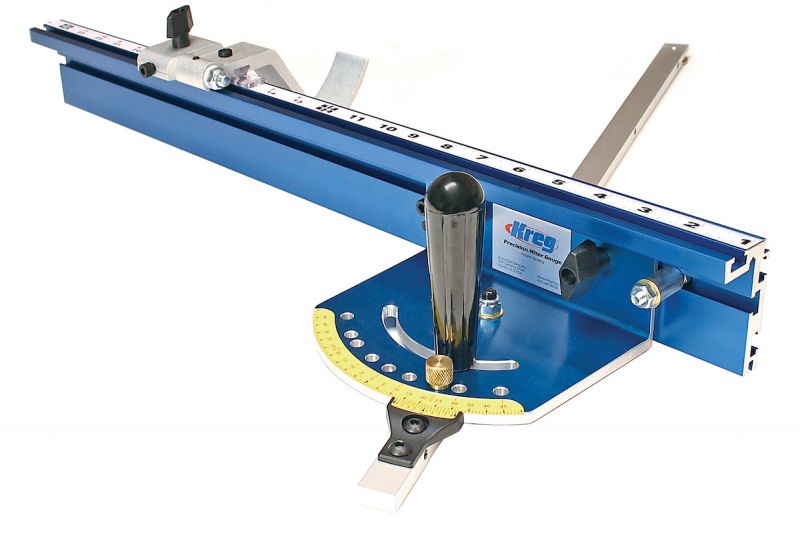

Kreg KMS7102 - Kreg Precision Mitre Gauge System

Kreg Precision Mitre Gauge System - (Ref: KMS7102)

• Factory-calibrated; perfect right out of the box
• Positive stops at 0°, 10°, 22-1/2°, 30°, and 45° (degrees)
• Brass pin allows quick changes between positive stop angles
• 24" (610mm) bar with 5 bar adjusters eliminates "play" between the bar and mitre slot
• 24" (610mm) Fence with Swing Stop and Self-Adhesive Measuring Tape

• Why spend your time calibrating a mitre gauge when you can get amazing accuracy right out of the box? Our Precision Mitre Gauge System requires no calibrating and features positive stops at 0°, 10°, 22½°, 30° and 45° to make it easy to cut accurate mitres quickly.
• Of course, when you do want to cut a more complicated angle, the easy-to-use Vernier scale allows for fast adjustments to 1/10th of a degree.
• Plus, the Precision Mitre Gauge System offers a long, anodized aluminum fence and stop system that let you easily make accurate, repeatable cuts.
• Perfect Mitres, Fast! Precision is the name of the game for this CNC-milled mitre gauge. We worked to build accuracy into every feature of this product, from the rugged aluminum fence to the solid yet versatile Swing Stop, to the easy-to-use yet amazingly accurate Vernier scale. With all of its great features, this mitre gauge will give you better, more accurate cuts to ensure project success.
• Precision Lens Cursor. Similar to the type of lens found on a quality table saw rip fence, the clear lens features a high-visibility red line that makes it easy to set the Swing Stop for precise cuts, time after time.
• No Play in the Mitre Slot. Our extremely straight 24" (610mm) anodized-aluminum bar is 3/8" (9.5mm) thick by 3/4" (19mm) wide and features five bar adjusters that you can use to eliminate “play” in the mitre slot with the turn of a screwdriver.
• The Swing Stop slides effortlessly along the fence of the Precision Mitre Gauge and locks securely into place with the turn of a knob. It also features a curved foot that lets you easily swing the stop temporarily out of the way without having to remove it. That means you can quickly square one end of a board, flip it around, and then cut it to final length without ever moving the stop.
