Kreg R3-INT Kreg R3 Pocket Hole System

Kreg R3 Pocket Hole System - Kreg R3-INT

• Build projects from wood the fast, strong, easy way using pocket-hole joinery and the Kreg Jig® R3.
• With the Kreg Jig, all you have to do is drill a hole in one of the pieces you want to join. Then drive in a Kreg Screw. The self-tapping tip draws the joint together and holds it tight, so you can create beautiful, durable projects quickly.

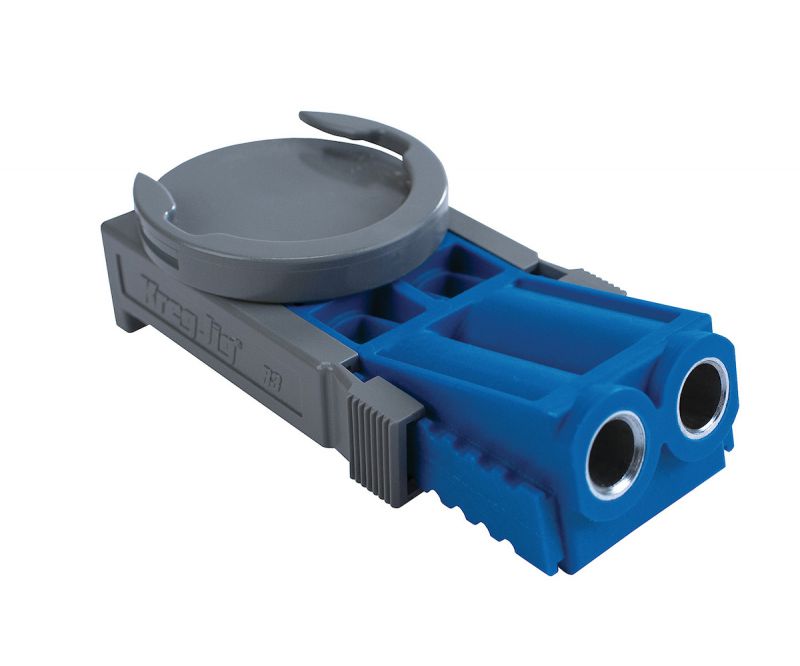

• The portable Kreg Jig R3 features two hardened-steel drill guides, built-in guides that make it easy to set up on a wide range of material thicknesses, and a clamp pad—all in a compact carrying case.

• The Kreg Jig R3-Pocket-Hole System is the home improver’s solution for building with wood
• Easily join materials from 12-38mm in 3mm increments
• Positioning sliders allow you to easily adjust within 9 depth settings
• Dual wood-chip holes keep your drill bit clear of excess wood chips
• Two hardened-steel drill bit guides

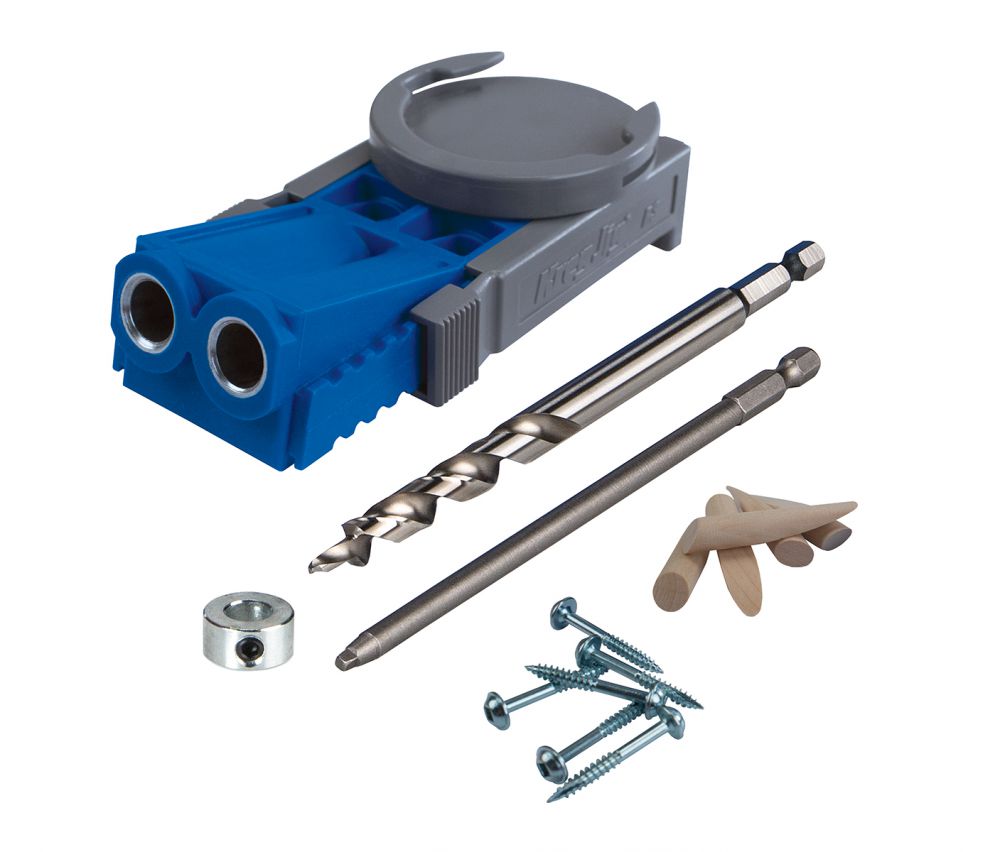

• Comes with Kreg accessories organized in a durable carrying case
• Depth-collar gauge is molded into the case for handy reference
• Easily attaches to any Kreg Face Clamp, bar clamp, or C-clamp

Kreg R3 Pocket Hole System Owners Manual

The Home Improver’s Solution for Building with Wood
With the Kreg Jig® R3, you can build bookcases, shelves, and storage projects for your home. It's also great for creating custom built-ins, and countless other home improvement projects. Plus, the Kreg Jig® R3 can be used portably to make lasting repairs around your home.

Clamp Pad Adapter

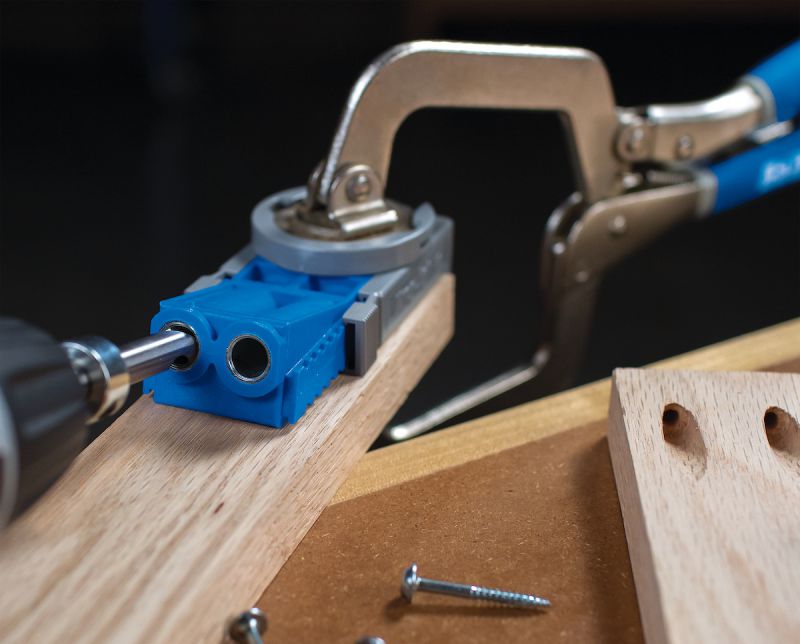

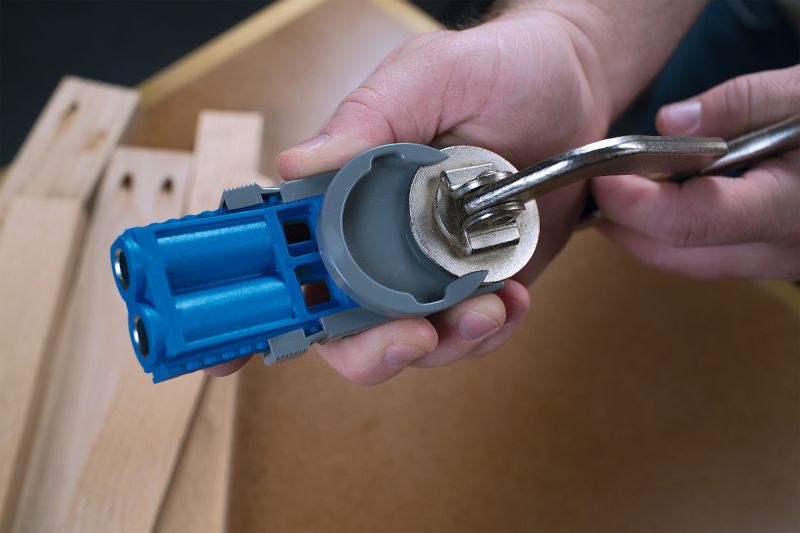

The Kreg Jig® R3 includes a Clamp Pad Adapter, which allows the R3 to be easily secured to your workpiece using any standard bar clamp, C-clamp, or Kreg Face Clamp. For faster and more repeatable pocket holes, choose a Kreg Face Clamp.

Material Thickness Setting
From thin drawer boxes and craft projects to stout 2x4s, this Kreg Jig® R3 can handle just about anything. Independent positioning sliders feature nine depth settings, allowing you to easily join materials from 1/2" to 11/2" thick in 1/8" increments.

Organized Carrying Case

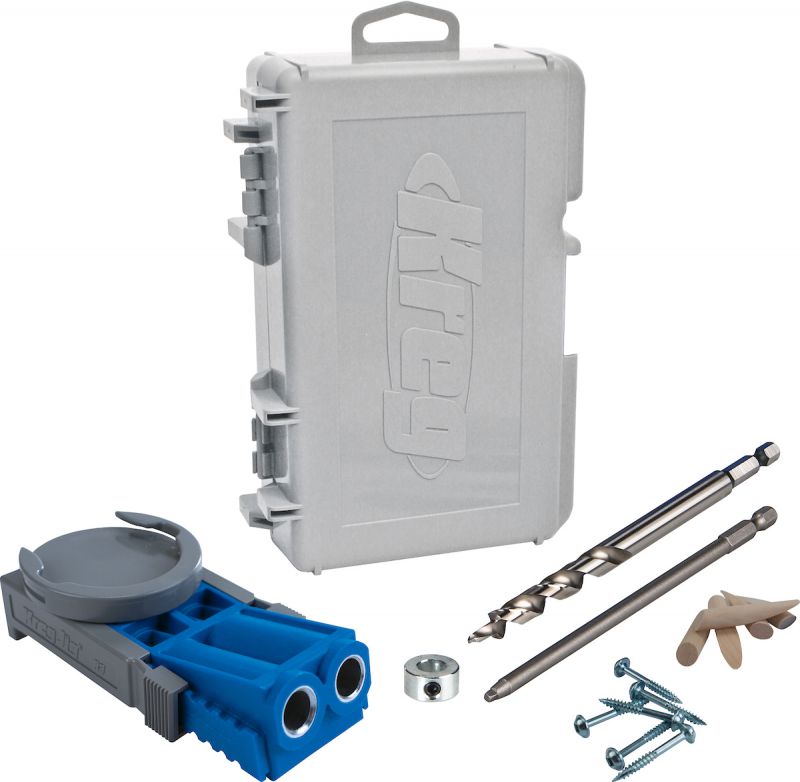

A compact yet durable carrying case is included so that you'll always have a safe place to store your Kreg Jig® R3 and organize all of the accessories it comes with. As a bonus, a depth collar gauge has been molded into the case for handy reference.

Dual Positioning Sliders
Dual positioning sliders help you properly set your jig based on the thickness of the material you are working with. Simply depress the button on the side of the jig and move the sliders so your material thickness is aligned with the arrow on the jig body. It’s that easy!

Glass-Reinforced Nylon Body
The blue body of every Kreg Jig® is made from a heavy-duty, glass-reinforced nylon. This composite material offers the resiliency and flexibility you need without sacrificing the strength and durability Kreg customers have come to expect.

Superior Angle
Unlike competing jigs with a shallower angle of approach, the Kreg Jig® R3 features an optimized drilling angle specifically designed to increase driving efficiency and minimize the overall size of the pocket hole. The result is a compact pocket hole, less than 11/2" in size.

Wood-Chip Relief
Sometimes the simplest things are the easiest to overlook. The Kreg Jig® R3 includes one wood-chip relief hole for every drill guide hole, designed to keep the drill bit clear of excess wood chips, minimizing drill-torque, increasing the longevity of your drill bits, and allowing you to complete a perfect pocket hole in just one plunge.

Hardened-Steel Core
Kreg drill guides are subject to direct contact with the drill bit every time a pocket hole is created. The core of every Kreg Jig® R3 features hardened-steel, which carries a lifetime guarantee. The Kreg Jig® R3’s core shrouds the bit and supports the workpiece through 100% of the drill-stroke. The end result is minimal bit deflection, reduced tear-out, and a clean, pluggable pocket hole fit for finish work.

Take a look at our Knowledge Centre for handy guides to pocket-hole joinery and help with choosing the correct screws.
