Mafell 917632-PK1 Mafell MT55cc Midi plunge saw 230v + rail set (204805)

X
Product Code: MAF/917632-PK1
Brand: Mafell
In Stock
£689.62 Inc. VAT
£574.68 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Mafell

Mafell MT55cc Midi Plunge Saw + rail set 230v - (Ref: 917632-PK1)



Key Features

  • The idea of developing a new plunge-cut saw is not new in itself. The novel aspect of this development, however, was the origination of a unique precision product from a set of especially designed machine components.
  • The plunge-cut saw MT 55 cc is a jack of all trades. It can execute plunge, parting, bevel and angled cuts with supreme precision and without any tearing.
  • The scoring function is quickly activated in a single movement. The MT 55 cc then cuts visible edges as cleanly as a stationary machine, even if the splinter guard is worn.
  • Continuously variable speed for a variety of materials and sawblades.
  • The cutting depth range has now been extended to 57 mm (2 1/4 in.). Thanks to the innovative tilting system, the options afforded for bevel cuts are practically unlimited as well.



Strengths and benefits

  • Facility for extremely fine adjustment of the cutting depth setting, e.g. when working with a resharpened blade or with Fermacell.
  • The closed saw blade cover and the slide bar at the saw-cut ensure a very low dust formation.
  • The MT 55 cc is equipped with a new CUprex-Compact motor for significantly elevated speeds and ample power in reserve.
  • The cutting depth can be set with millimeter precision. With or without a rail – simply turn the pointer to show the exact cutting depth.
  • For bevel cuts, the angle setting is fixed in two locations with half a turn of a single locking screw.
  • Mafell CUprex High-Performance Motor

Applications
  • Cross-cutting and rip cuts
  • Bevel cuts -1 to +48°
  • Plunge cuts
  • Compatible materials include solid wood, cement fiberboard, melamine resin panels (Trespa), OSB, gypsum fiberboard, plastics, façade boards and various board materials

Items included
  • 1 Allen key 5 mm; Ref. No. 093034
  • 1 TCT sawblade 162 x 1.2/1.8 x 20 mm, 48 alternating teeth, for universal use with board materials; Ref. no. 09258
  • 1 Mains cable 4 m (13.1 ft); Ref. No. 087323
  • Transport and storage box T-MAX
  • 2 x F 160 (Ref: 204365)
  • 1 x F-VS (Ref: 204363)
  • 2 x F-SZ 180 MM (Ref: 207770)
  • 1 x guide pocket
  • 1 x Rail Bag

Technical details
  • Cutting depth: 0 - 2 1/4 Inch / 0 - 57 mm
  • Cutting depth at 45°: 0 - 1 5/8 Inch / 0 - 40,5 mm
  • Tilt range: -1 - +48 °
  • Nominal No. of strokes – no load: 3600-6250 1/min
  • Nominal power input: 1.9 hp / 1400 W
  • Universal motor: 230 V / 50 Hz
  • Weight: 9.9 lbs / 4.5kg



Mafell MT55cc Plunge Saw Manual

Mafell MT 55 Plunge Saw Brochure

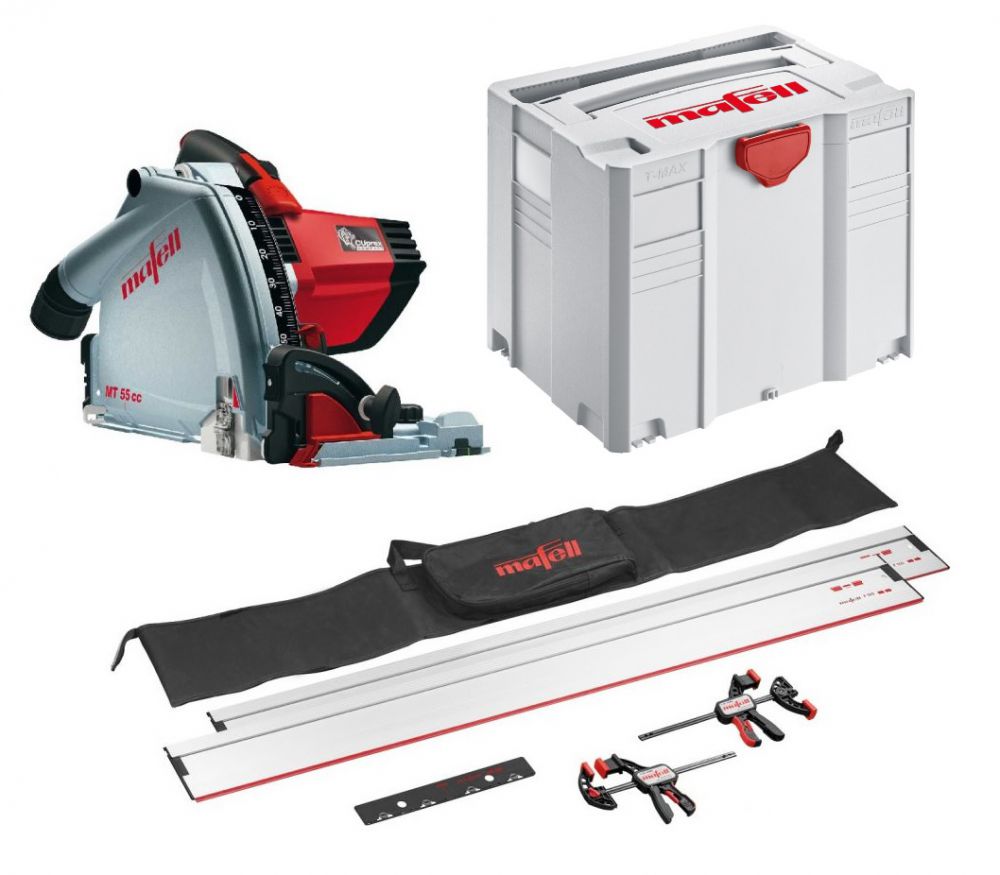

Items Included
Click For Bigger Image
1 X Mafell 204805 Guide rail set (1.6m rails x 2, Clamps x 2, Joiner and bag)
Click For Bigger Image
1 X Mafell Plunge Cut Saw MT 55 cc MidiMAX 240v, in T-Max - 917632
