Mafell 917632-PK2 Mafell MT55cc Midi plunge saw 230v + rail set (204749)
Product Code: MAF/917632-PK2
Brand: Mafell
In Stock
£769.00 Inc. VAT
£640.83 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Mafell MT55cc Midi Plunge Saw + rail set 230v
Ref: 917632-PK2
Key Features
- The idea of developing a new plunge-cut saw is not new in itself. The novel aspect of this development, however, was the origination of a unique precision product from a set of especially designed machine components.
- The plunge-cut saw MT 55 cc is a jack of all trades. It can execute plunge, parting, bevel and angled cuts with supreme precision and without any tearing.
- The scoring function is quickly activated in a single movement. The MT 55 cc then cuts visible edges as cleanly as a stationary machine, even if the splinter guard is worn.
- Continuously variable speed for a variety of materials and sawblades.
- The cutting depth range has now been extended to 57 mm (2 1/4 in.). Thanks to the innovative tilting system, the options afforded for bevel cuts are practically unlimited as well.
Strengths and benefits
- Facility for extremely fine adjustment of the cutting depth setting, e.g. when working with a resharpened blade or with Fermacell.
- The closed saw blade cover and the slide bar at the saw-cut ensure a very low dust formation.
- The MT 55 cc is equipped with a new CUprex-Compact motor for significantly elevated speeds and ample power in reserve.
- The cutting depth can be set with millimeter precision. With or without a rail – simply turn the pointer to show the exact cutting depth.
- For bevel cuts, the angle setting is fixed in two locations with half a turn of a single locking screw.
- Mafell CUprex High-Performance Motor
Applications
- Cross-cutting and rip cuts
- Bevel cuts -1 to +48°
- Plunge cuts
- Compatible materials include solid wood, cement fiberboard, melamine resin panels (Trespa), OSB, gypsum fiberboard, plastics, façade boards and various board materials
Items included
- 1 Allen key 5 mm; (Ref. No. 093034)
- 1 TCT sawblade 162 x 1.2/1.8 x 20 mm, 48 alternating teeth, for universal use with board materials; (Ref. no. 09258)
- 1 Mains cable 4 m (13.1 ft); (Ref. No. 087323)
- Transport and storage box T-MAX
- 1 x F 160 (Ref: 204365)
- 1 x F-VS (Ref: 204363)
- 2 x F-SZ 180 MM (Ref No: 207770)
- 1 x F- 80 (Ref No: 204380)
- 1 x guide pocket
- 1 x Rail Bag
Technical details
- Cutting depth: 0 - 2 1/4 Inch / 0 - 57 mm
- Cutting depth at 45°: 0 - 1 5/8 Inch / 0 - 40,5 mm
- Tilt range: -1 - +48 °
- Nominal No. of strokes – no load: 3600-6250 1/min
- Nominal power input: 1.9 hp / 1400 W
- Universal motor: 230 V / 50 Hz
- Weight: 9.9 lbs / 4.5kg
 |
Operating Instructions |
Items Included
;)

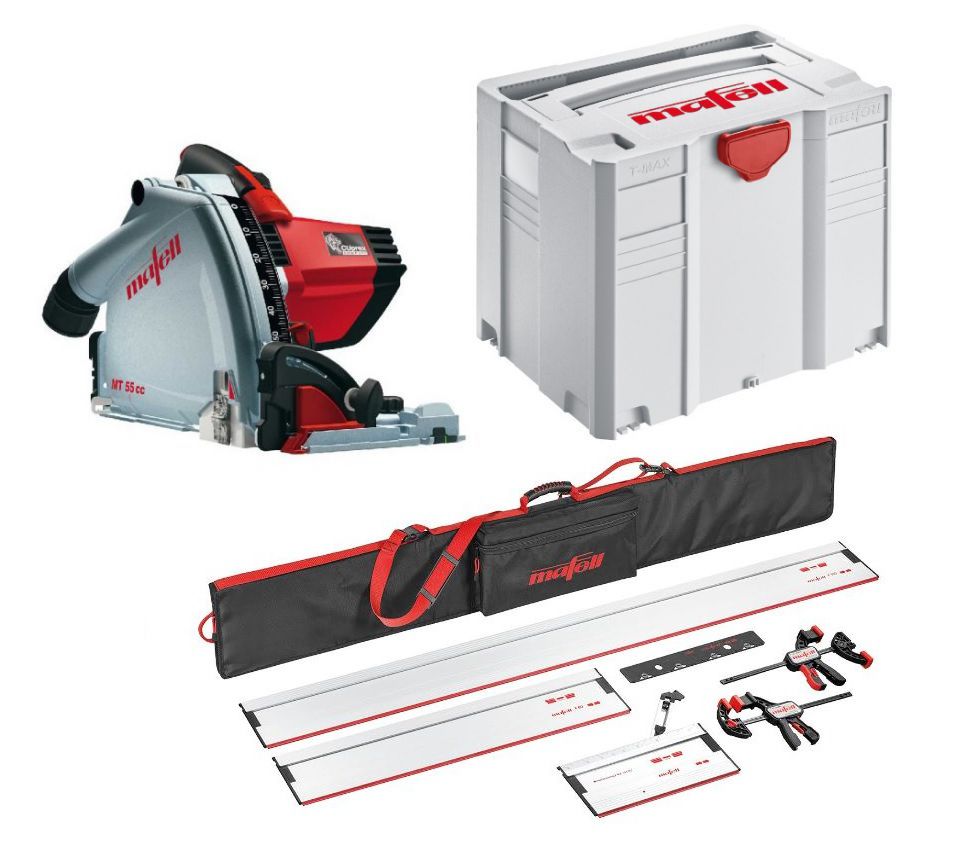

1 X Mafell Plunge Cut Saw MT 55 cc MidiMAX 240v, in T-Max - 917632
;)
1 X Mafell 204749 Guide rail set (1.6m rail x 1, 0.8m rail x 1, Clamps x 2, Joiner, Angle fence and bag)
