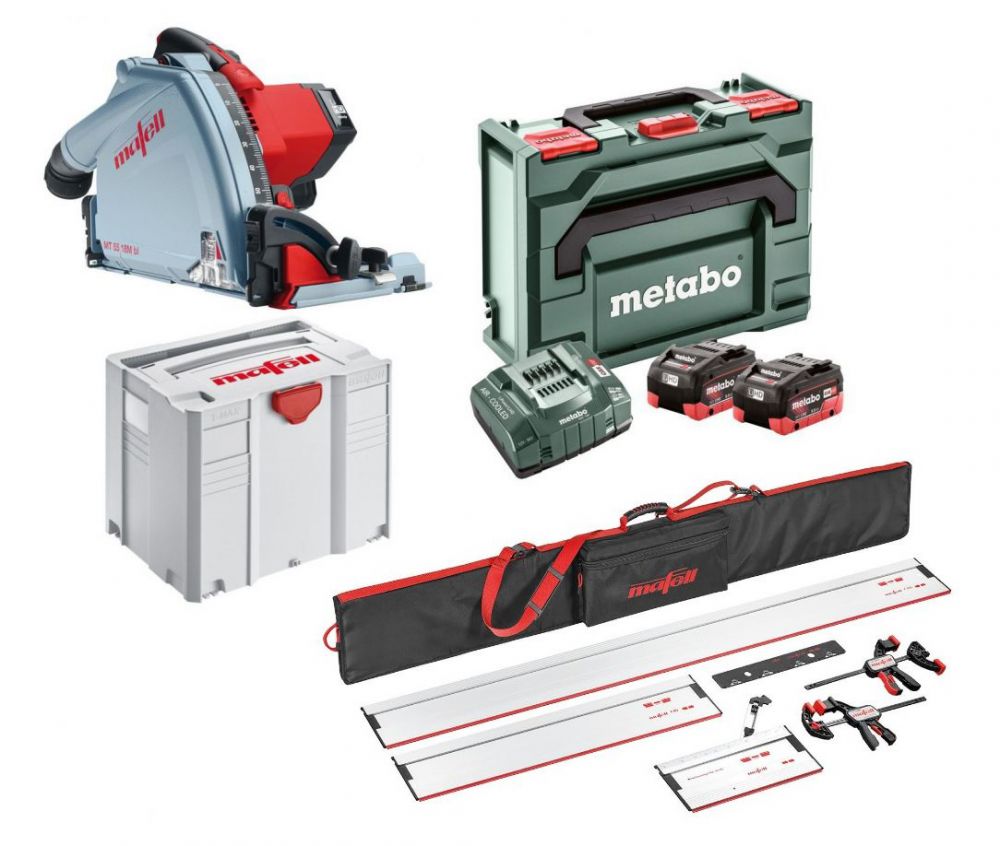

Mafell 91B402 MT 55 18 M BL Cordless Plunge Saw Package with Rails 204749 and Metabo 8ah

• Facility for extremely fine adjustment of the cutting depth setting, e.g. when working with a resharpened blade or with Fermacell.
• The closed saw blade cover and the slide bar at the saw-cut ensure a very low dust formation.
• The cutting depth can be set with millimeter precision. With or without a rail – simply turn the pointer to show the exact cutting depth.
• For bevel cuts, the angle setting is fixed in two locations with half a turn of a single locking screw.

• The idea of developing a new plunge-cut saw is not new in itself. The novel aspect of this development, however, was the origination of a unique precision product from a set of especially designed machine components.
• The plunge-cut saw MT 55 18M bl is a jack of all trades. It can execute plunge, parting, bevel and angled cuts with supreme precision and without any tearing.
• The scoring function is quickly activated in a single movement. The MT 55 18M bl then cuts visible edges as cleanly as a stationary machine, even if the splinter guard is worn.
• The cutting depth range has now been extended to 57 mm (2 1/4 in.). Thanks to the innovative tilting system, the options afforded for bevel cuts are practically unlimited as well.
• Mafell CUprex High-Performance Motor

• Cross-cutting and rip cuts
• Bevel cuts -1 to +48°
• Plunge cuts
• Compatible materials include solid wood, cement fiberboard, melamine resin panels (Trespa), OSB, gypsum fiberboard, plastics, façade boards and various board materials

• 1 Allen key 5 mm; Ref. No. 093034
• 1 Dust bag; Ref. No. 206921
• 1 TCT sawblade 162 x 1.2/1.8 x 20 mm, 48 alternating teeth, for universal use with board materials; Ref. no. 092584
• 1 Position indicator MT-PA; Ref. No. 205398
• 1 Parallel guide fence; Ref. No. 203214
• Transport and storage box T-MAX

• Cutting depth: 0 - 57 mm
• Cutting depth at 45°: 0 - 40,5 mm
• Tilt range: -1 - +48 °
• Nominal No. of strokes – no load: 4850 1/min
• Weight: 4,5 kg
• Battery: Not supplied

Mafell MT 55 18MBL Manual

Mafell MT 55 Plunge Saw Brochure

Mafell Guide Rail Set - (Ref: 204749)

• Weight  6.5 kg

• 1 x F 80 Guide rail - (Ref: 204380)
• 1 x F 160 Guide rail - (Ref: 204365)
• 1 x F-VS Connecting Piece - (Ref: 204363)
• 2 x F-SZ 180MM Clamps
• 1 x F-WA Angle Fence - (Ref: 205357)
• 1 x Canvas Rail Bag

Metabo Basic-Set 2 x 18V LiHD 8.0Ah, ASC 145 + MetaBOX - Ref: 685131590

• 2 x LiHD battery packs 18V 8.0Ah
• Quick charger ASC 145
• metaBOX 145
