Mafell 971921 Mafell Erika 85Ec pull-push precision saw system 240v
Product Code: MAF/971921
Brand: Mafell
Stock Due Soon
Please Call For Update
Please Call For Update
£3,306.74 Inc. VAT
£2,755.62 Exc. VAT

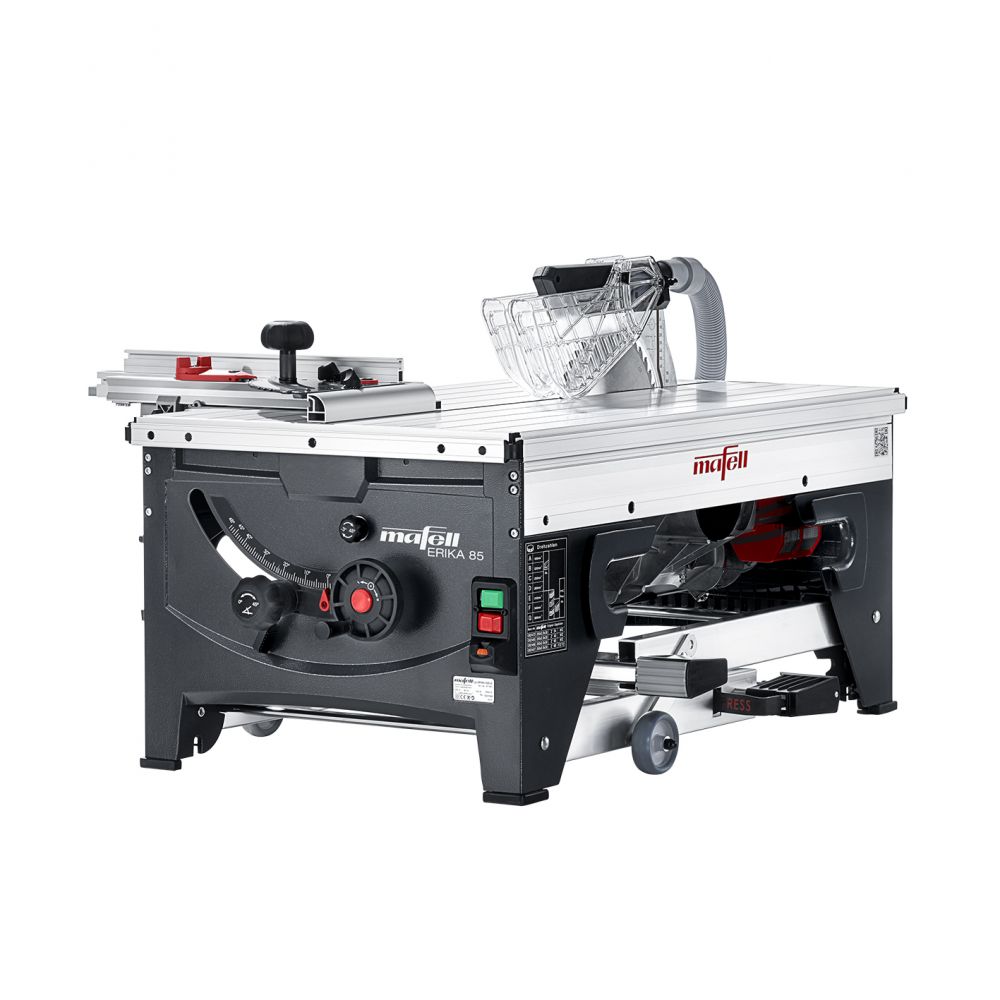

Mafell Erika 85Ec Pulls-Push Precision Saw System 240V - (Ref: 971921)
Key Features
- As the world's first pull-push saw, the ERIKA has become the epitome of mobile sawing since its introduction. After almost 40 years of experience, the current generation is now endowed with everything that users expect from a modern pull-push saw.

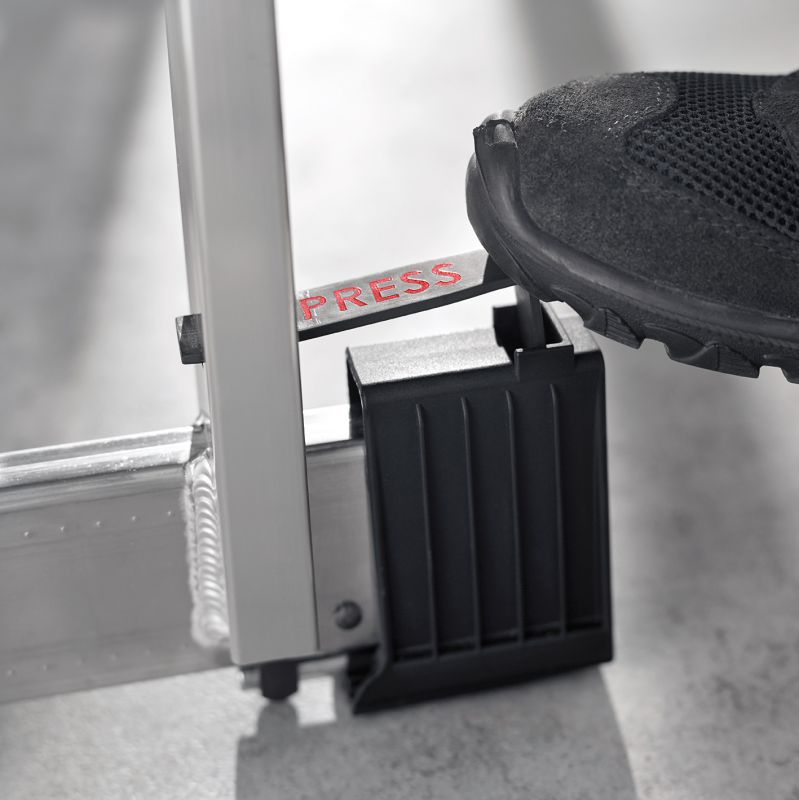

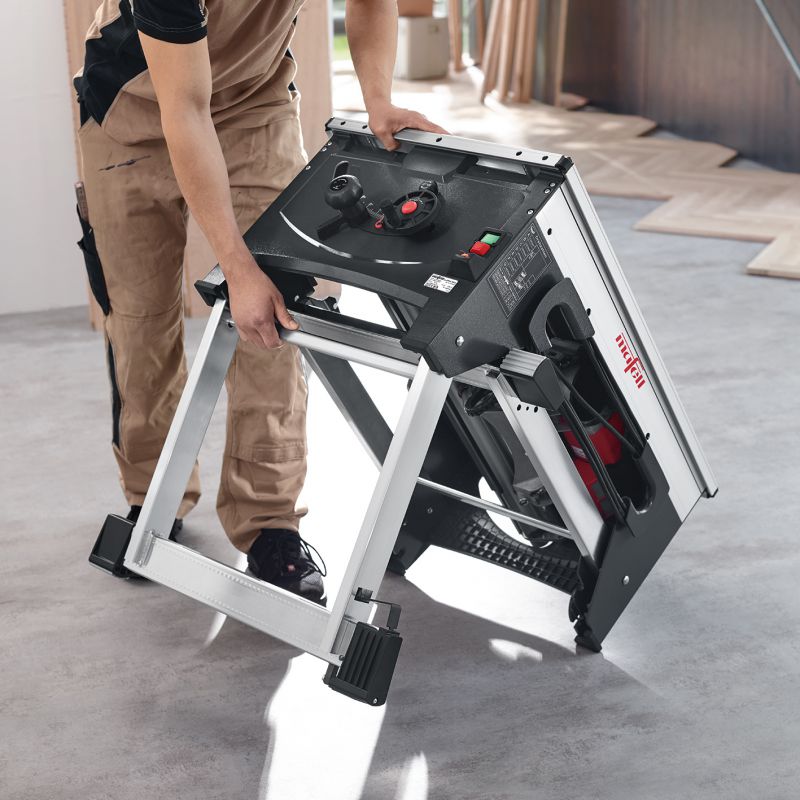

- The built-in /Quickstand sets the ERIKA on 4 stable aluminium legs within seconds. Protective rubber stoppers on the feet also prevent slipping or knocking.

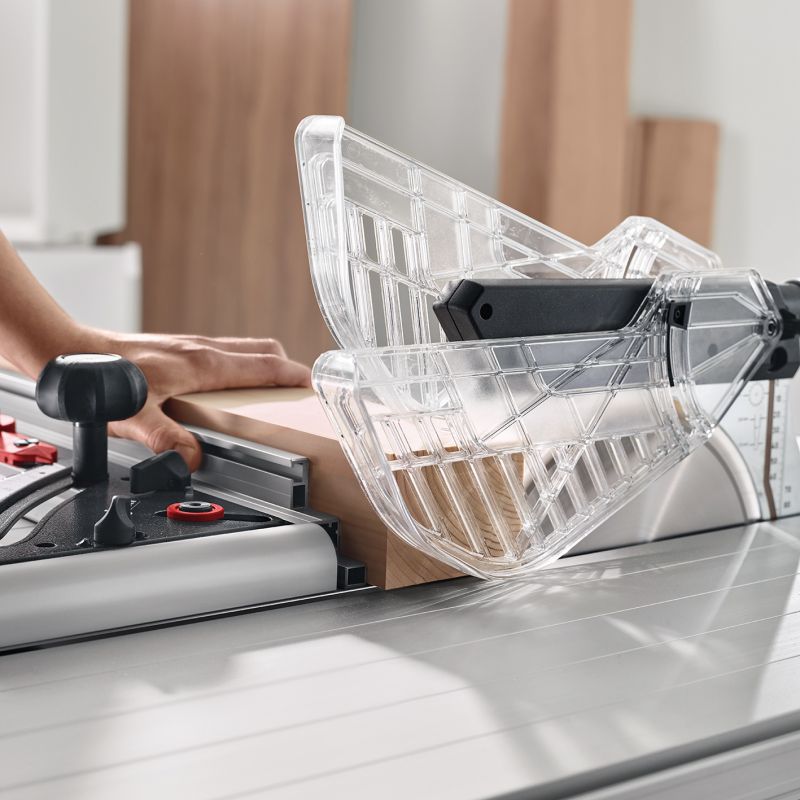

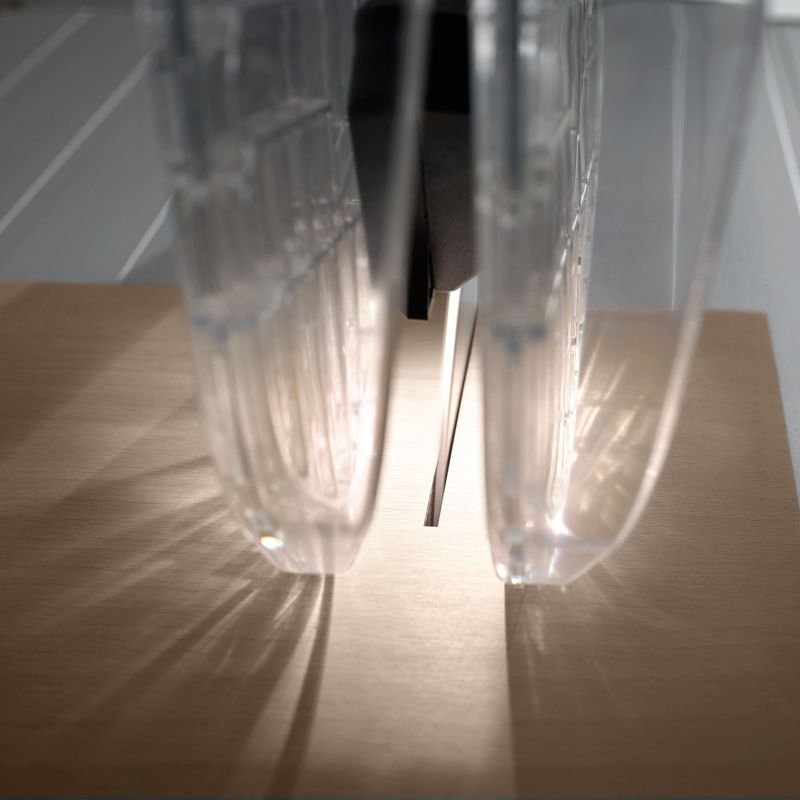

- The unique suction channel concentrates the sawdust and extracts it to the rear. Thanks to this new development, your dust extractor is used even more effectively. The result: clean work on a clean construction site! Operation of the ERIKA leaves no questions unanswered. Clearly designed operating elements are all logically arranged on the front of the machine!
- Thanks to the E-control electronic system and the corresponding MAFELL original saw blade, it is possible to process other materials in addition to wood, such as plastics or aluminium profiles.
- Further advantages of the ERIKA 85: Extremely stable table profile, tilt range from -3° to 48° , lowerable riving knife and maximum cutting length of 430 mm (16 15/15 inch).
Strengths and benefits
- New type of suction channel revolutionises extraction - for less dust when working.
- Lightest pull-push saw in its class – for quick and easy transportation.
- Adjustable speed – for individual processing of wood, plastics or aluminum profiles.
- With voltage loss switch for protection against uncontrolled reconnection after a power interruption.
- The rear legs of the Erika are equipped with wheels for easy handling.
- Mafell CUprex High-Performance Motor
Applications
- Cross and rip cuts
- Circular saw bench functionality
- Bevel cuts up to 48°
- Compatible materials include solid wood, board materials, parquet and laminate flooring, aluminum profiles and plastics
Items included
- 1 TCT saw blade 250 x 2.8 x 30 mm (9 13/16 in.), AT, 40 teeth - (Ref: 092465)
- 1 Extension kit with wheels - (Ref: 202889)

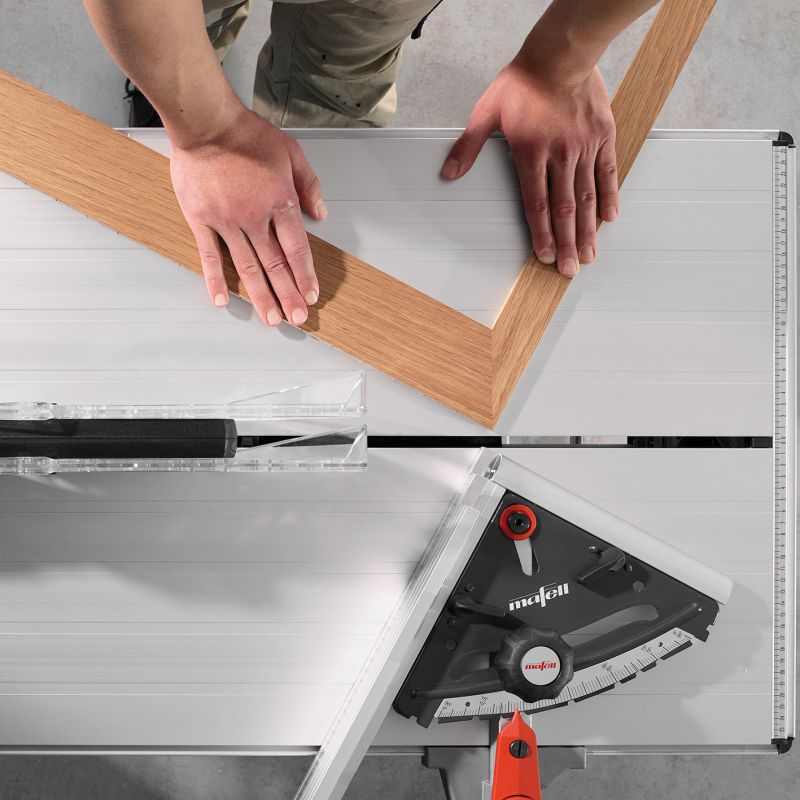

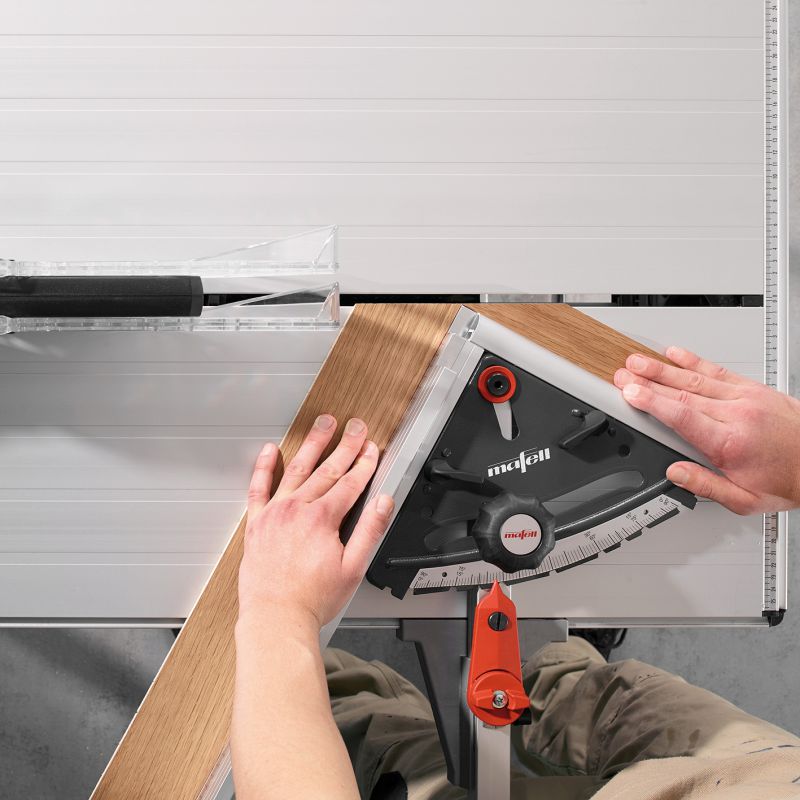

- 1 MFA multi-purpose fence with angle locking - (Ref: 207980)
- 1 Push stick - (Ref: 034901)
- 1 Allen key 6 mm - (Ref: 093081)
- 1 Extraction set with 2 connectors - (Ref: 093670)
- 1 Clamping device - (Ref: 038294)
- 1 Fold-away support Quickstand
- 1 Mains cable 4 m (13.1 ft)
Technical details
- Cutting height: -1 - 85 mm
- Cutting height at 45°: -1 - 60 mm
- Tilt range: -3 bis 48 °
- Cutting length: 430 mm
- Table top dimensions: 525 x 915 mm
- Working height without stand: 415 mm
- Working height with stand: 890 mm
- Nominal No. of strokes – no load: 1900 - 3800 1/min
- Nominal power input: 2500 W
- Weight: 34,5 kg
- Universal motor: 230 V / 50 Hz
