Mafell Cross Cutting Saw System KSS 300 MaxiMAX 110v, with Guide Rail in T-Max - 916732
Product Code: MAF/916732
Brand: Mafell
Low Stock - Please Call For Availability
£790.97 Inc. VAT
£659.14 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities

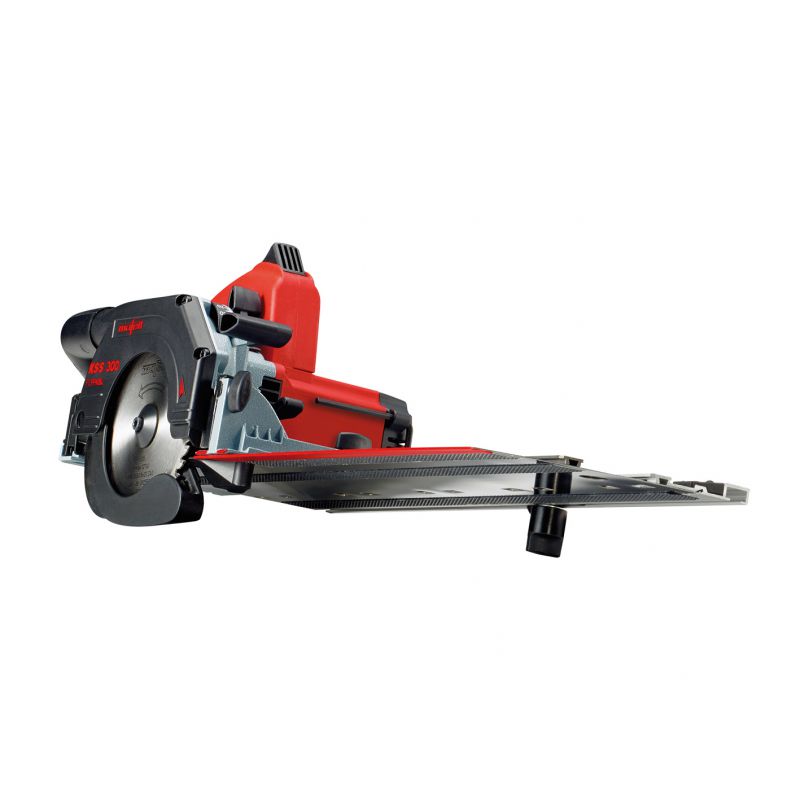

Mafell KSS300 MaxiMAX Cross-Cutting Saw System 110v
Ref: 916732
Key Features
- In internal finishing, one thing is important above all else: precision. Designed for supreme handling, the KSS 300 cross-cutting system therefore focuses on all the key functions for this type of work.
- Fastening the portable circular saw to the KSS rail creates a very practical single-handed cross-cutting system for bevel and miter cuts; once the cut has been executed, the saw automatically returns to the starting position.
- Offering a maximum cutting depth of 42 mm, the portable circular saw delivers ample power in all situations. Thanks to magnesium die-cast components, this especially neat and lightweight saw weighs only 2.4 kg (5.3 lbs).

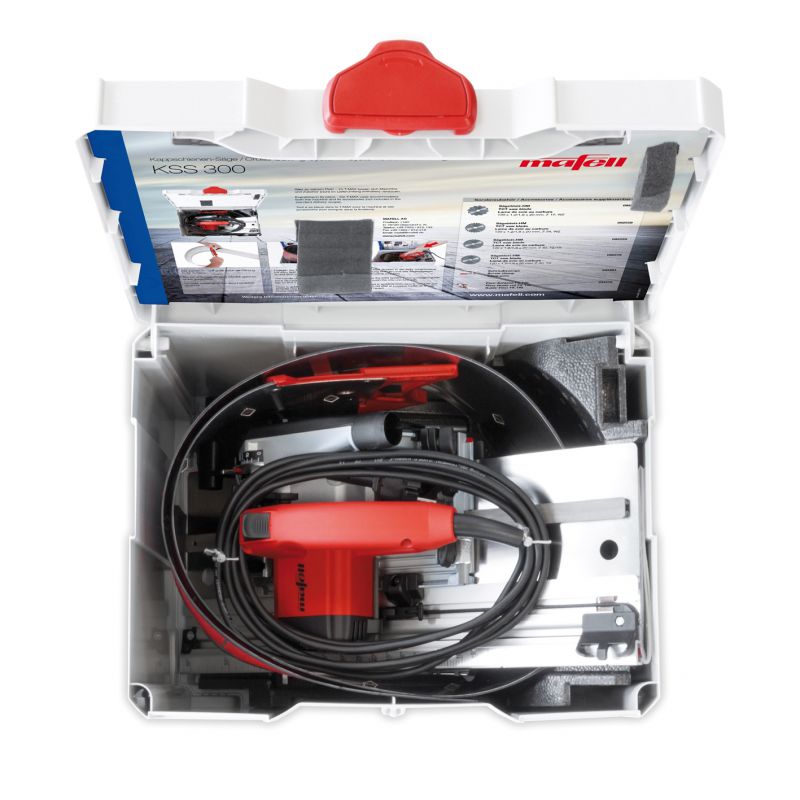

- The entire, compact sawing system is accommodated in the T-MAX carrying case - it is an ideal tool for shadow gaps, rip, bevel, plunge and angled cuts, as well as free-hand work.
Strengths and benefits
- The pivot point of the KSS 300 is on the side, on the bottom edge of the rail. This has the advantage of requiring only a single tracing pointer for all angles – with or without the rail.
- Enables you to detach the machine from the rail in a single, quick action. The saw can then be used as a separate portable circular unit with all the functionality of the MAFELL KSP series.
- The smart stop and adjustable fence with large scale increments for exact angle settings facilitate very precise and consistent miter cuts.
Applications

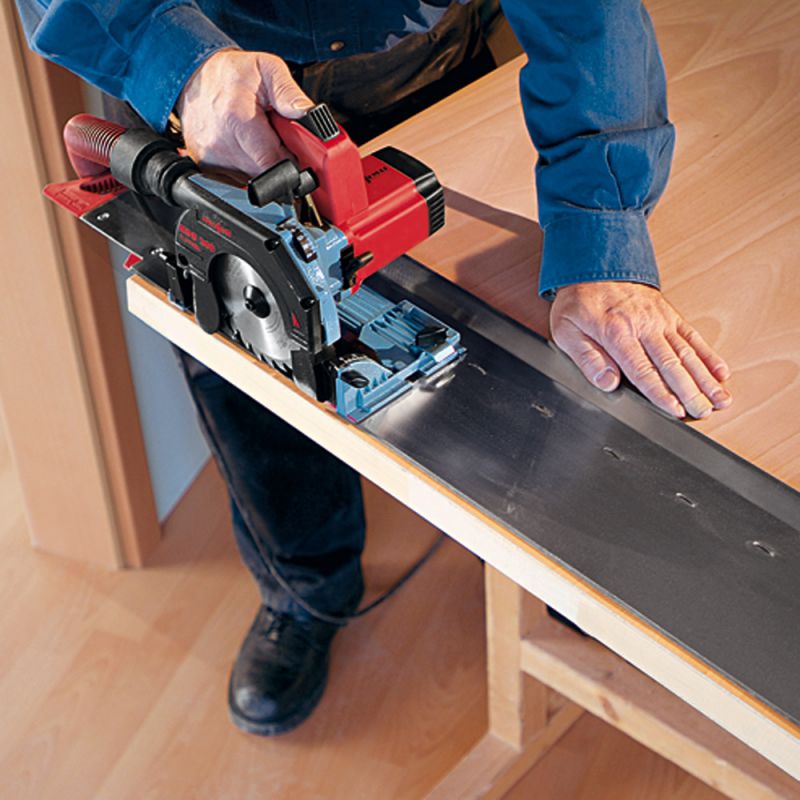

- Cross cuts with guide

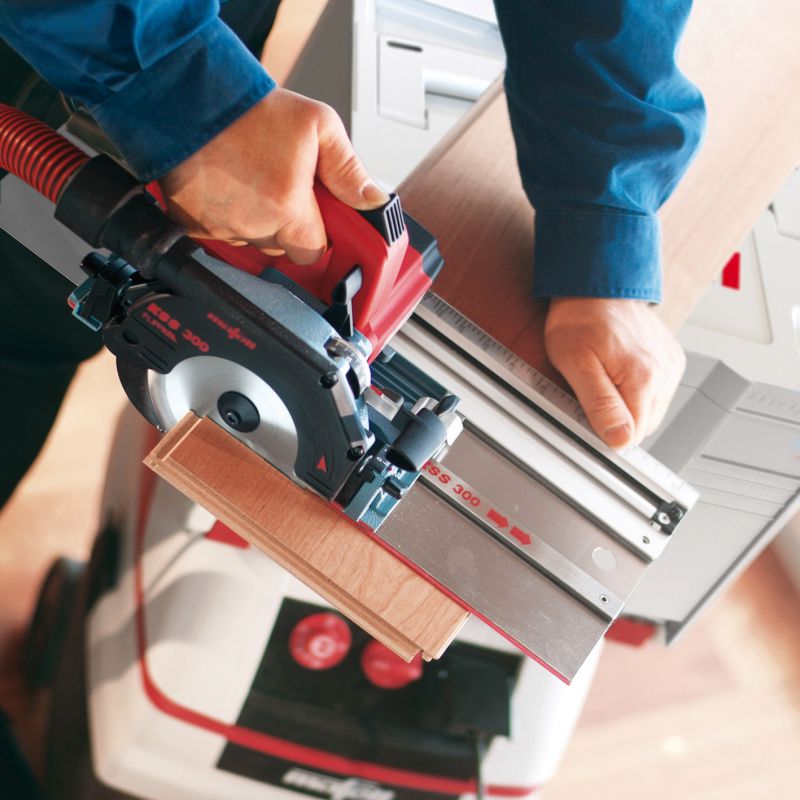

- Rip cuts and cross-cutting

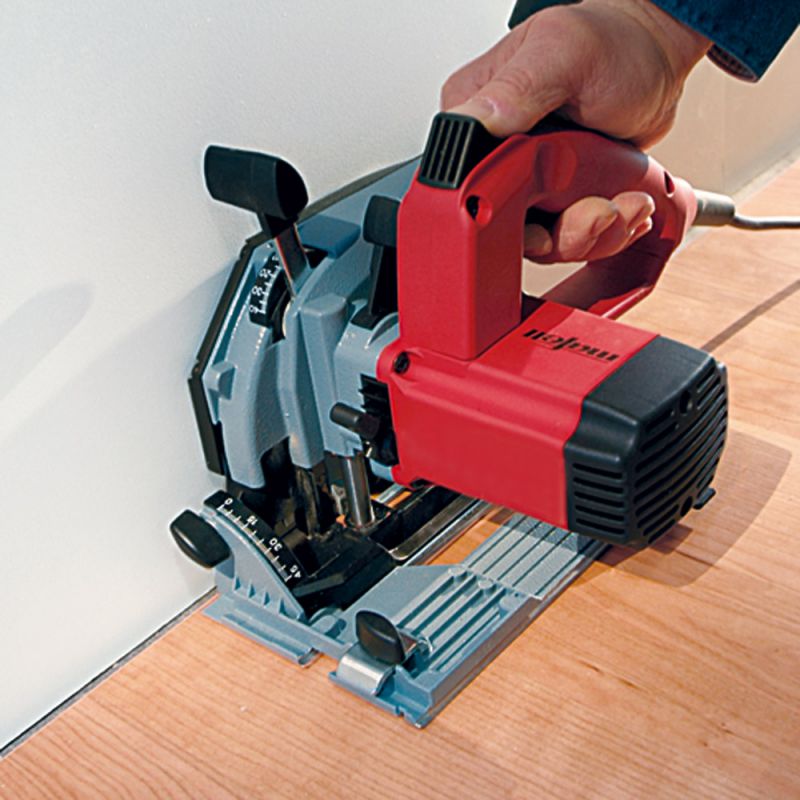

- Plunge cuts, recesses and cutting shadow gaps from 13 mm (1/2 in.)
- Compatible materials include board materials, doors, worktops, parquet and laminate flooring, cladding
Items included
- 1 Flexi-Guide FX 140, 1.4 m (4.6 ft) with splinter guard Ref. No. 204372
- 2 Clamping claws Ref. No. 203773
- 1 TCT saw blade 120 x 1,2/1,8 x 20 mm, (4 3/4 in.) 40 flat/trapezoidal teeth Ref. No. 092559
- 1 Parallel guide fence Ref. No. 203180
- 1 Hose connector Ref. No. 203782
- 1 Allen key 4 mm Ref. No. 093074
- 1 Mains cable 4 m - GB 110 V Ref. No. 087803

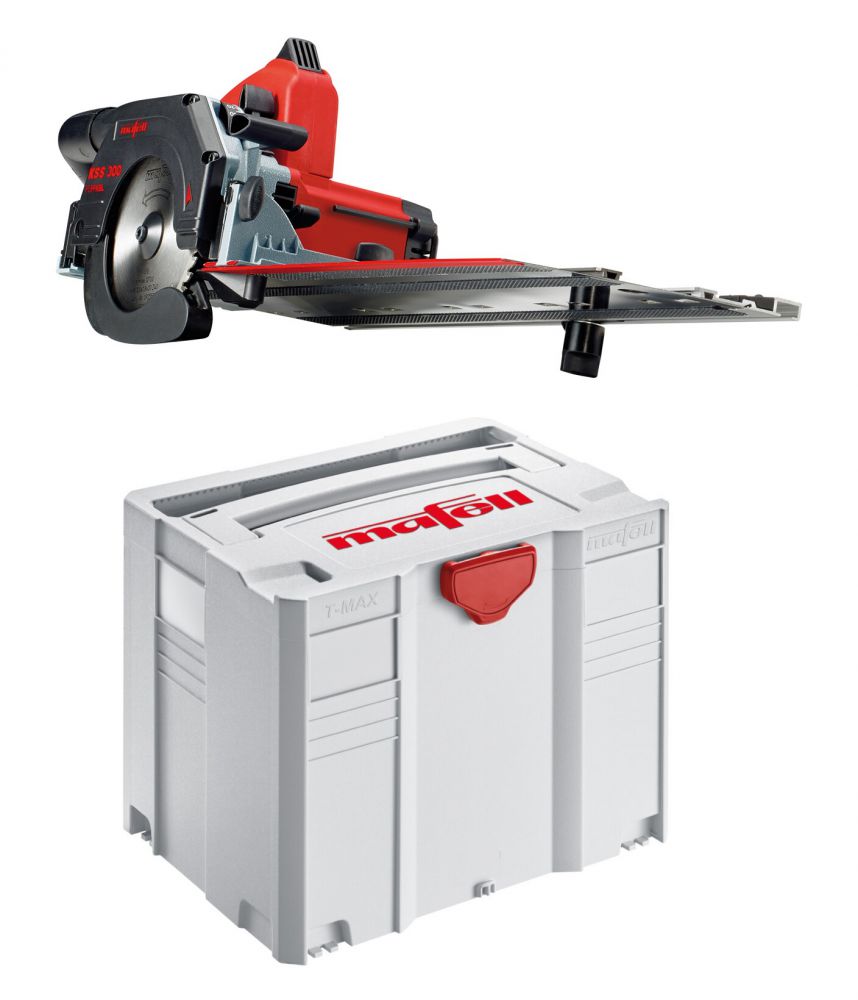

- Compact package in space-saving T-MAX
Technical details
- Cutting depth at 0° with guide track: 0 - 40mm
- Cutting depth 45° with track: 0 - 27mm
- Cutting depth at 0 ° without guide track: 0 - 42mm
- Tilt range: 0 - 45 °
- Cutting length: 300 mm
- Angle cuts: -60 - +60 °
- Nominal No. of strokes – no load: 8800 1/min
- Nominal power input: 900 W
- Weight with guide rail: 3,0kg
- Universal motor: 110 V / 50 Hz
