Mafell Cross Cutting Saw System KSS 60 cc 240v, with Guide Rail - 91B121

X
Product Code: MAF/91B121
Brand: Mafell
Stock Due Soon
Please Call For Update
£879.43 Inc. VAT
£732.86 Exc. VAT
Mafell

Mafell KSS 60 cc Circular Saw System 240v
Ref: 91B121



Key Features

  • With their low weight and cutting depths of up to 60 mm on the track, MAFELL’s new, powerful cross-cutting systems are making a big impact when it comes to interior work, for example.
  • Once the cut has been executed, the saw automatically returns to the starting position. The maximum cutting length, exploiting the full cutting depth, is 407 mm.
  • Sheer power and high torque take on a whole new meaning with the new high-output CUprex motor. It offers performance-optimized digital electronics and newly developed control technology. Its speed is continuously variable according to the nature of the material and application.
  • It is no longer necessary to unscrew the riving knife – the FLIPPKEIL offers you optimum user-friendliness and safety when plunge cutting.



Strengths and benefits

  • Thanks to the unique tilting system, a cutting depth of 47 mm (including rail) is always available in the angle range from 0° to 45°.
  • The machine can be removed from the cross-cut track at the single press of a button, allowing its use for the full range of applications offered by the K 65 cc.
  • The rubberized underside ensures a good grip on the work and avoids damage to the surface.
  • Mafell CUprex High-Performance Motor

Applications
  • Cross cuts with guide
  • Rip cuts and cross-cutting
  • Plunge cuts and recesses
  • Compatible materials include solid wood, board materials, insulating materials, doors, worktops and internal finishing and renovation materials

Items included
  • 1 Parallel guide fence

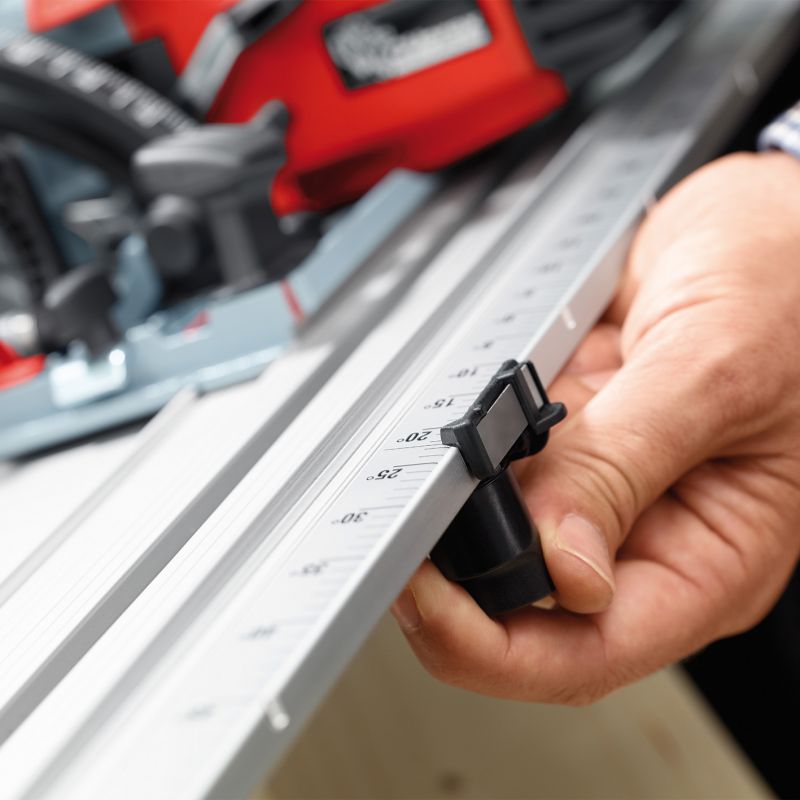

  • 1 Guide track 400mm
  • 1 Allen key 5 mm Ref. No. 093034
  • 1 TCT saw blade 185 x 1.4/2.4 x 20 mm, ATB, 32 teeth, for fine sawing in wood Ref. No. 092489
  • 1 Mains cable 4 m - GB 230 V Ref. No. 08780
  • in cardboard carton

Technical details
  • Cutting depth at 0° with guide track: 0 – 61 mm
  • Cutting depth 45° with track: 0 – 47 mm
  • Cutting depth at 0 ° without guide track: 0 – 67 mm
  • Cutting depth 45° without guide track: 0 – 53 mm
  • Tilt range: 0 – 45 °
  • Cutting length: 408 mm
  • Angle cuts: -60 – +60 °
  • Nominal No. of strokes – no load: 2700 – 4700 1/min
  • Nominal power input: 1800 W
  • Universal motor: 230 V / 50 Hz
  • Weight with guide rail: 5,9 kg


Mafell KSS 60 cc Brochure
