Mafell Milling Motor FM 1000 240v - 9M0021

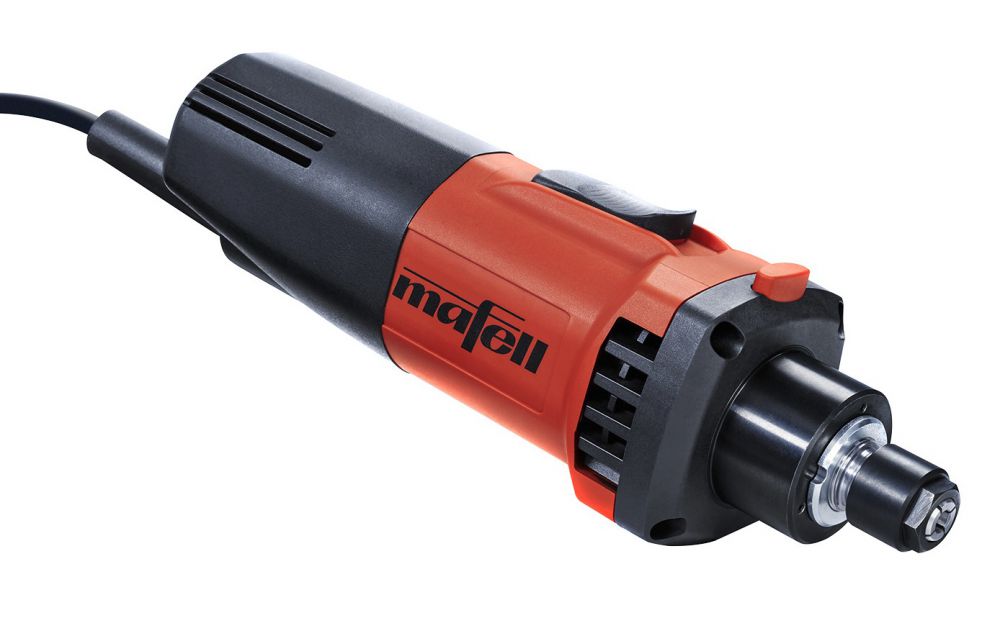

Mafell Milling Motor FM 1000 240v

ref: 9M0021

• With the FM 1000, MAFELL has developed another milling motor “Made in Germany”. The high quality standard and well thought-out details make the MAFELL milling motor the best partner in its performance class.
• The speed can be infinitely adjusted to any application. In addition, the digital electronics are equipped with soft start, constant speed under load, idle speed reduction and overload protection.
• The labyrinth seal of FM 1000 permanently protects the spindle and bearing from even the smallest particles, dust and chips.
• The MAFELL milling motors are manufactured under the strictest quality controls in the German town of Oberndorf a. N. Before delivery, each milling motor is “run in” in a test cabin. This increases the tool life and the service life.

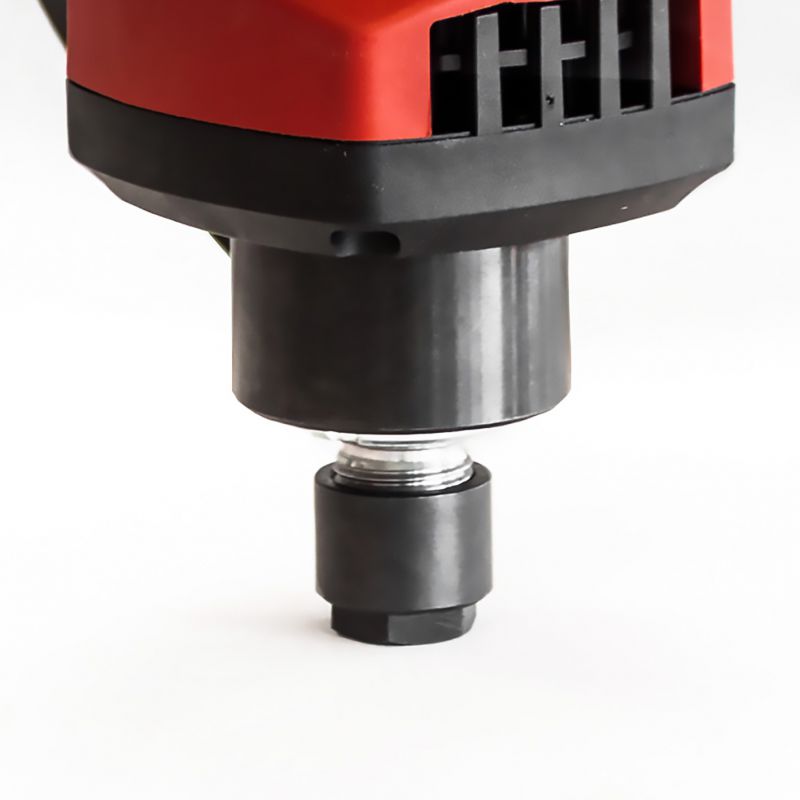

• Highest concentricity due to delicate adjustment of all components, such as the double-bearing spindle for absorbing axial forces and the innovative, tool-free quickclamping device.
• The sound pressure level of the FM 1000 is only 71 db (A) and the device is thus.

• Odel/pattern and mold making, advertising
• Engraving, jewelry,electronics, stone masonry
• Portal milling machines, cutting tables
• Grinding rigs, flexible shafts
• Compatible materials include: wood, metal, plastics foam, polystyrene, stone

• Highest concentricity due to the filigree coordination of all components and the fact that armature and spindle are manufactured and balanced from one piece.

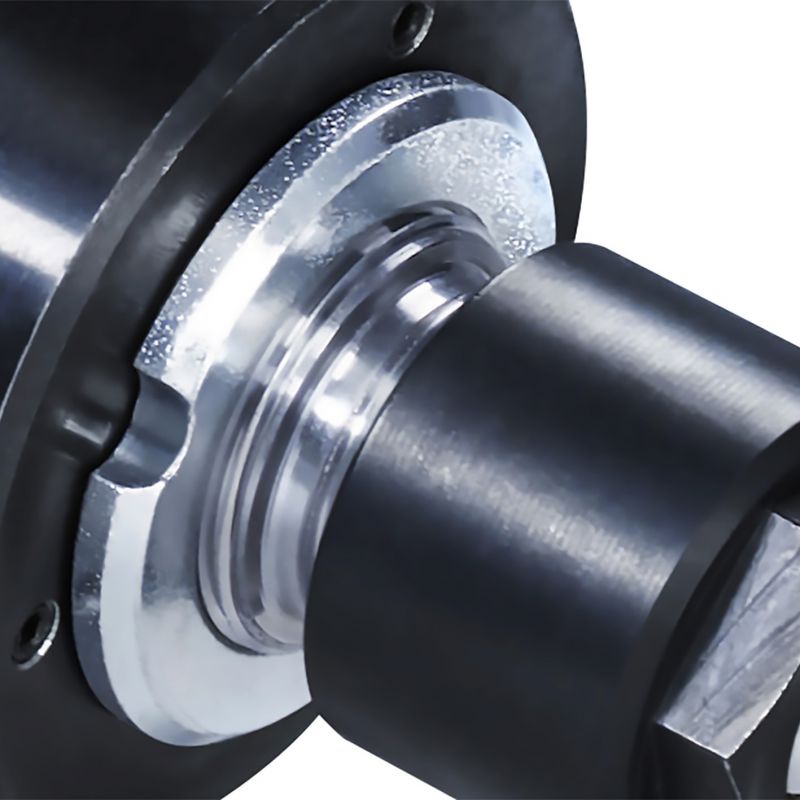

• Labyrinth seal: Protects the spindle and bearing against minute particles, dust and chips.

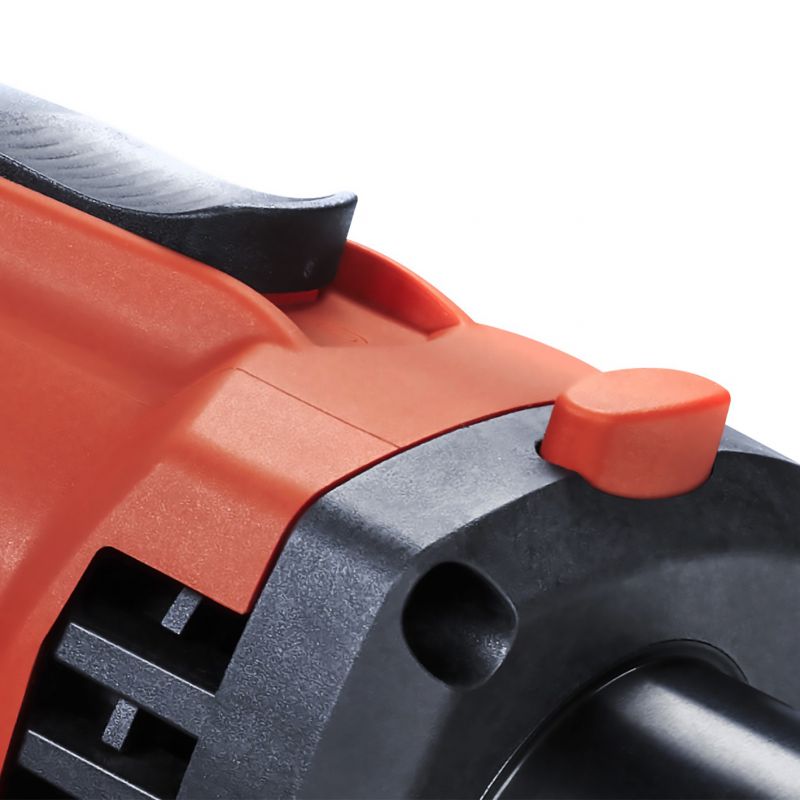

• For simpler and more convenient tool changes, the spindle can be locked at the push of a button.

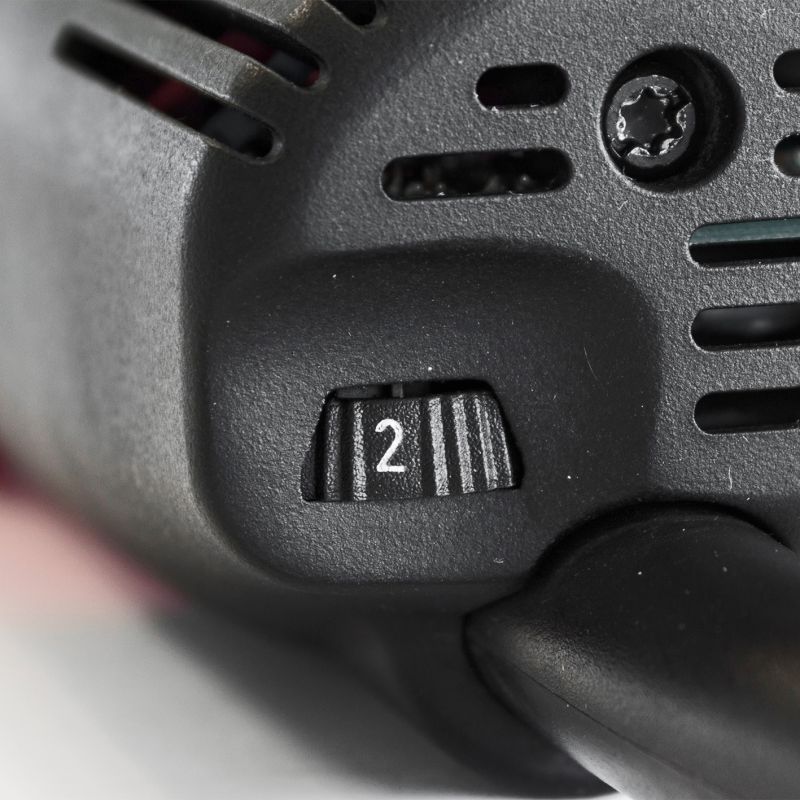

• The speed can be infinitely adjusted to any application. In addition, the digital electronics are equipped with soft start, constant speed under load, idle speed reduction and overload protection.

• 1 Open-ended spanner
• 1 collet chuck Oz 8 mm (0,31 in.)
• 1 Collet nut
• 1 Mains cable 4 m (13.1 ft)

• Dimensions (L x W x H): 10 x 3 1/8 x 2 7/8 Inch
• Noise level dB(A): 71
• Universal motor: 230 V / 50 Hz
• Clamping collar / chuck: 1 11/16 / 5/16 Inch
• Nominal power input: 1.34 hp
• Nominal No. of strokes – no load: 4.000 – 25.000 1/min
• Weight: 3.6 lbs
