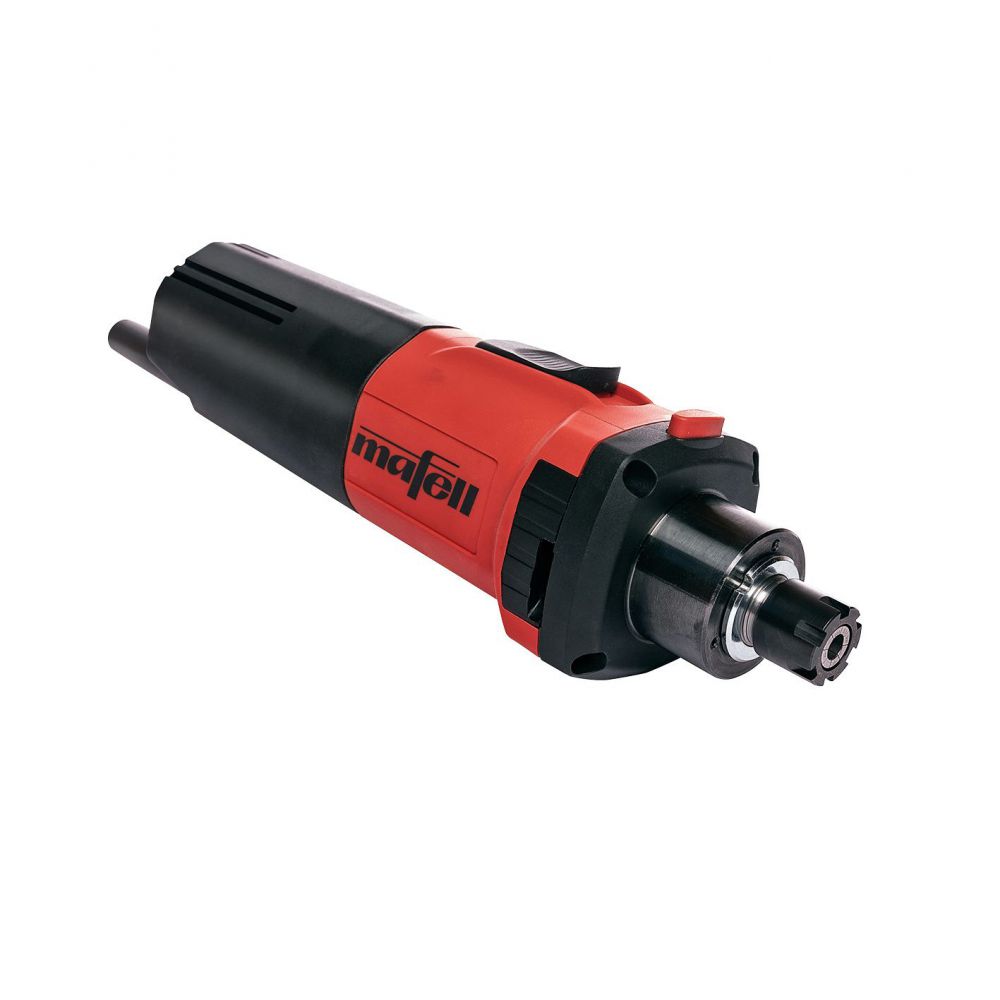

Mafell Milling Motor FM 1000 NC-ER 240v - 9M1401

Mafell 9M1401 Milling Motor FM 1000 NC-ER 240v

Replaces Mafell 9m0401 - FM 1000 PV-ER

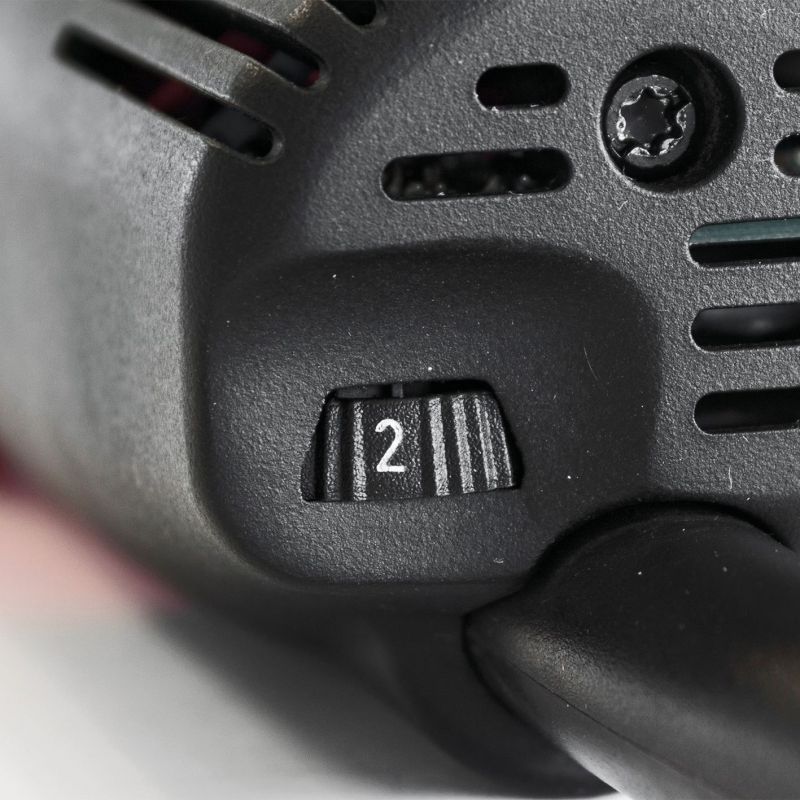

• The speed can be infinitely adjusted to any application. In addition, the digital electronics are equipped with soft start, constant speed under load, idle speed reduction and overload protection.
• With the FM 1000 NC-ER, MAFELL has developed another milling motor “Made in Germany”. The high quality standard and well thought-out details make the MAFELL milling motor the best partner in its performance class.
• The labyrinth seal of FM 1000 NC-ER permanently protects the spindle and bearing from even the smallest particles, dust and chips.
• The MAFELL milling motors are manufactured under the strictest quality controls in the German town of Oberndorf a.N. Before delivery, each milling motor is “run in” in a test cabin. This increases the tool life and the service life.

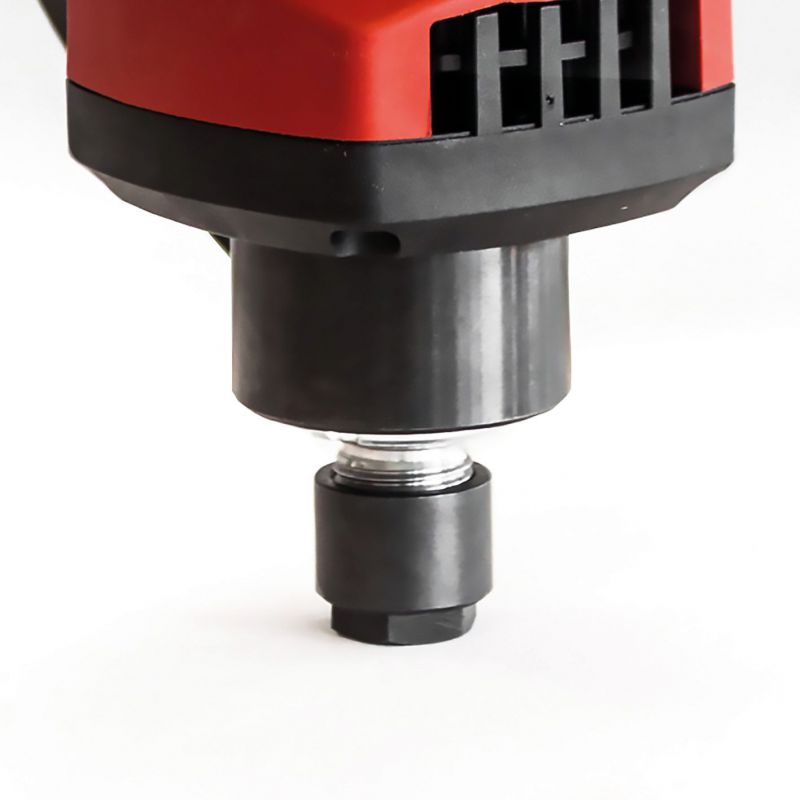

• Highest concentricity due to delicate adjustment of all components, such as the double-bearing spindle for absorbing axial forces and the innovative, tool-free quickclamping device.
• Duo-In: The speed can be continuously adjusted to any application, either manually or via the portal interface. Additional LED status display.

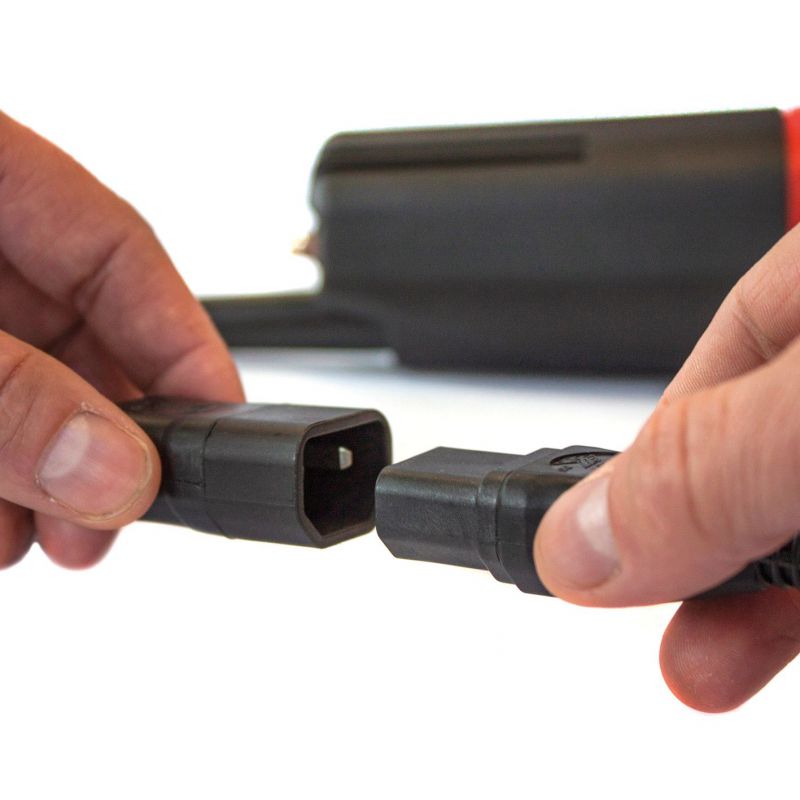

• The Rapidfix cable enables a quick and easy connection in to portal.
• The sound pressure level of the FM 1000 NC-ER is only 71 db (A) and the device is thus.

• Model making, mould making, advertising technology, engraving,jewellery, electronics, stonemasonry
• Ideally suited for portal milling machines, cutting tables, grinding devices and flexible shafts
• For wood, metal, plastics, foam, polystyrene, stone

• Clamping collar: 43 mm
• Clamping collar: 1 11/16 in
• Clamping chuck: 8 mm
• Clamping chuck: 5/16 in
• Nominal power input: 1000 W
• Nominal power input: 1.34 hp
• Nominal No. of strokes – no load: 4.000 - 25.000 1/min

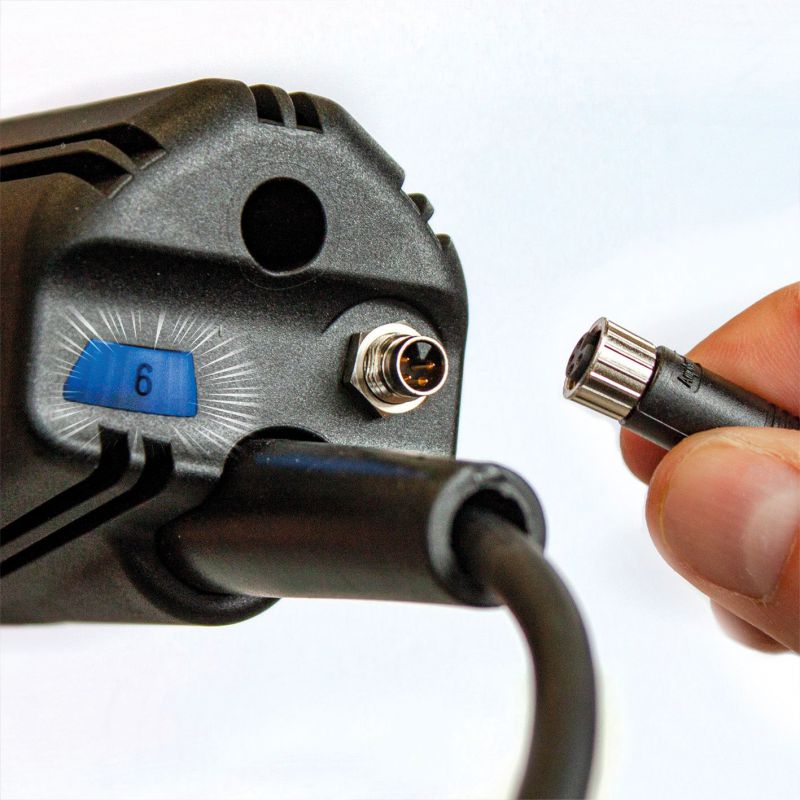

• NC - Portal connection: M8 / 4-pol.
• Power supply in NC operation: 8 - 56 V
• Portal control: 0 - 10 V
• Weight: 1,65 kg
• Weight: 3.6 lbs
• Universal motor: 230 V / 50 Hz
• Dimensions (L x W x H): 254 x 79 x 73 mm
• Dimensions (L x W x H): 10 x 3 1/8 x 2 7/8 in
• Noise level dB(A): 74

• 1 collet chuck ER 16, 8 mm ( 5/16 in.)
• 1 Union nut ER 16M
• 1 Clamping key ER 16M
• 1 NC control cable M8 / 4-pol, 5 m
• 1 cable 0,75 + 4 m
