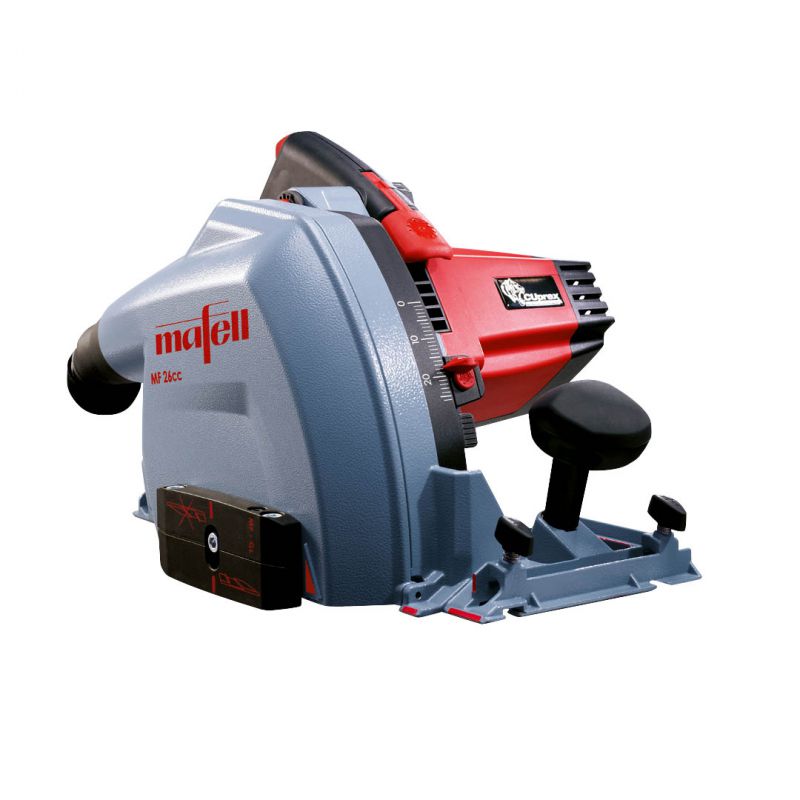

Mafell Multi Profile Cutter MF 26 cc AF-MAX 110V in T-MAX - 917822
Product Code: MAF/917822
Brand: Mafell
Stock Due Soon
Please Call For Update
Please Call For Update
£1,661.14 Inc. VAT
£1,384.29 Exc. VAT
Mafell MF26cc Multi Profile Cutter AF-MAX 110v - (Ref: 917822)
Key Features
- The design of the MF 26 cc is characterized by the use of extremely rugged, high-quality and precision-made parts, including the lightweight magnesium die-cast housing and impact-resistant, fiber glass-reinforced plastic components.
- The MF 26 cc multi-cutter can be operated to a cutting depth of 26 mm (1 in.) on the guide rail and as a plunge-cut saw.
- Whether sawing, routing or cutting grooves, genuine precision is best achieved with the aid of the guide rail system F.
- Continuously variable speed up to 6250 rpm. For shaping, sawing and slotting an abundance of different materials.
Strengths and benefits
- Turn the adjusting screw to set the cutting depth on the sliding scale with an accuracy of 1/10 mm.
- Enhanced precision assured – The glider slides on the surface of the workpiece and thus prevents tilting. It helps to hold the MF 26 cc securely in position when it is mounted on the guide rail as well. When bending and folding aluminum composite panels and wallboard in particular, the glider ensures exact cutting depth accuracy.
- The guard opens with a single action. When it is opened, the starting lockout and sawblade lock engage automatically.
- With or without a rail – simply turn the pointer to show the exact cutting depth.
- Mafell CUprex High-Performance Motor
Applications

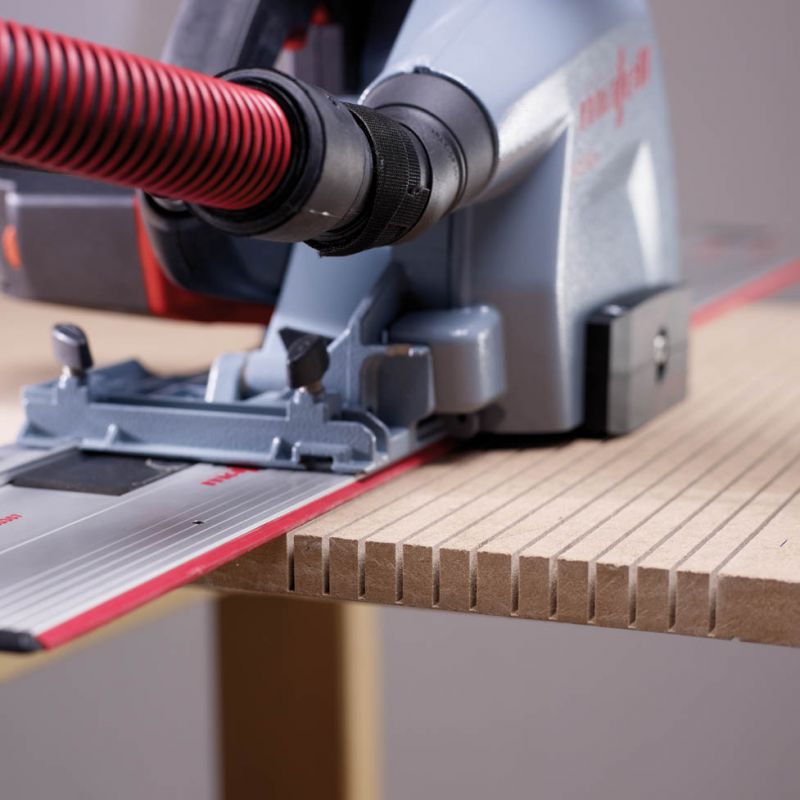

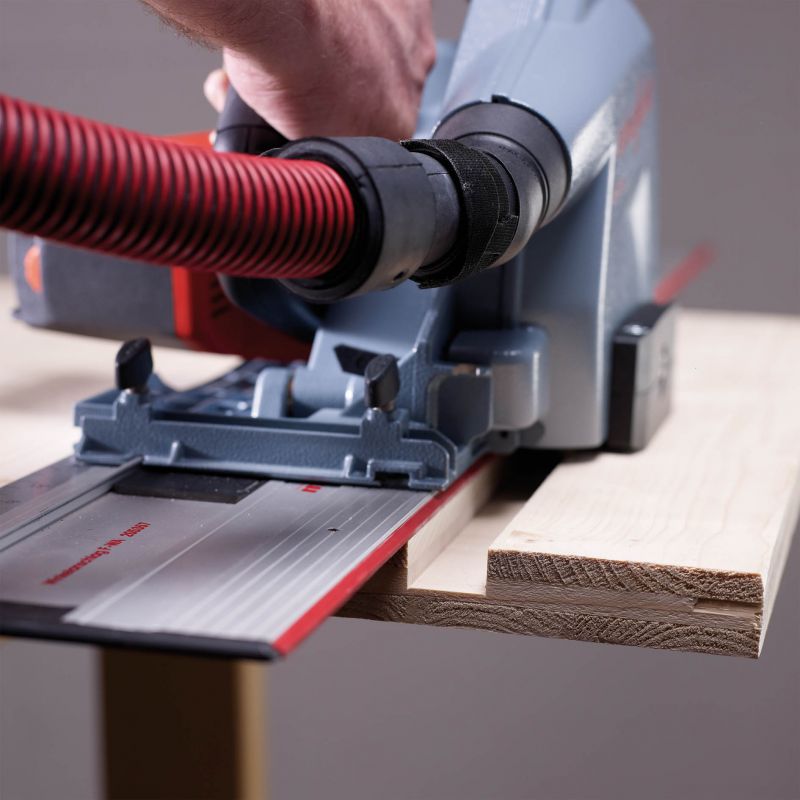

- Lengthwise and crosswise grooves
- V-grooves
- For routing wallboard prior to folding, bending techniques
- Routing and folding techniques with aluminum composite panels, sawing.
- Materials usage: solid wood, MDF, drywall, aluminum composite panels
Items included
- 1 TCT saw blade 120 x 1,2/1,8 x 20 mm, Z 40, FZ/TR, for fine cuts in wood; Ref. No. 092559

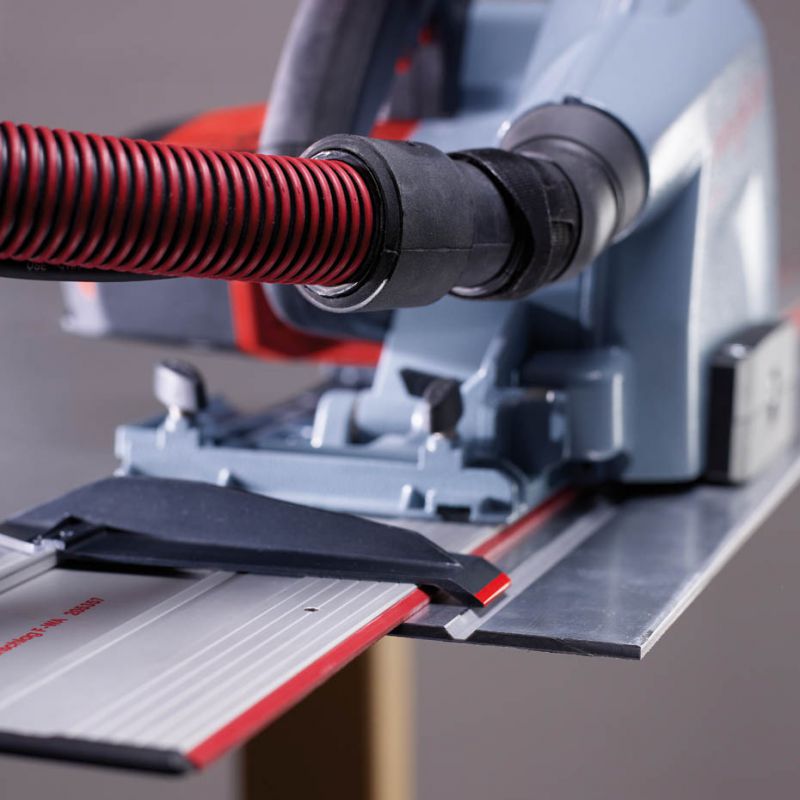

- 1 Aluminum composite cutter MF-AF 90, for 90° V-grooves up to 8 mm deep; Ref. No. 206076
- 1 Parallel guide fence; Ref. No. 206038
- 2 Position indicators; Ref. No. 206012
- 1 Mains cable 4 m (13.1 ft); Ref. No. 087323

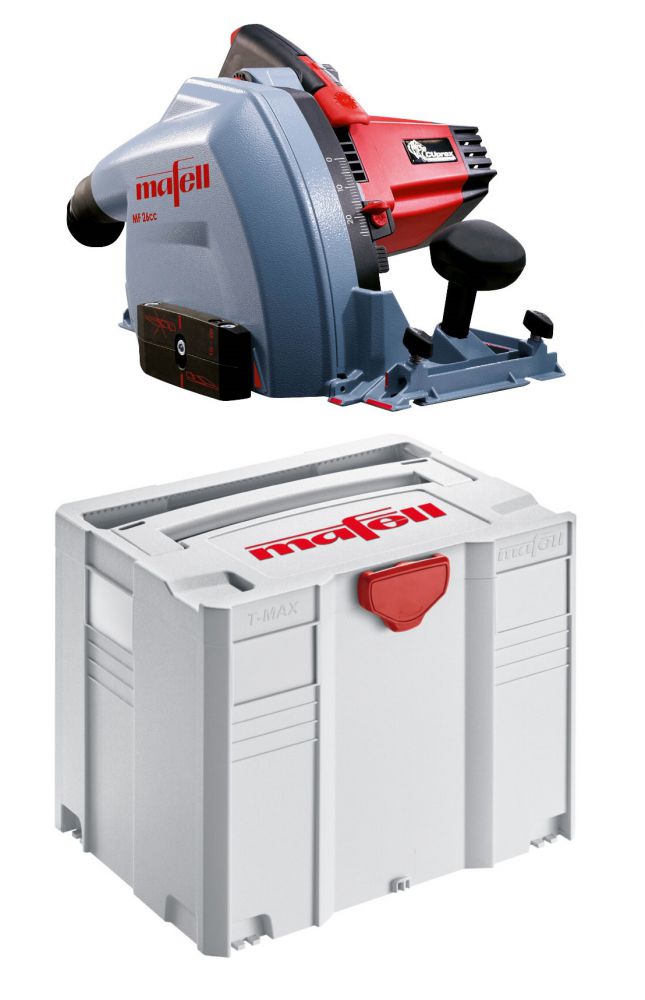

- Transport and storage box T-MAX
Technical details
- Cutting depth 0 - 26 mm / 0 - 1 Inch
- Nominal No. of strokes – no load 3600 - 6250 1/min
- Nominal power input 1400 W / 1.9 hp
- Universal motor 110 V / 50 Hz
- Weight 5.0 kg / 11 lbs
