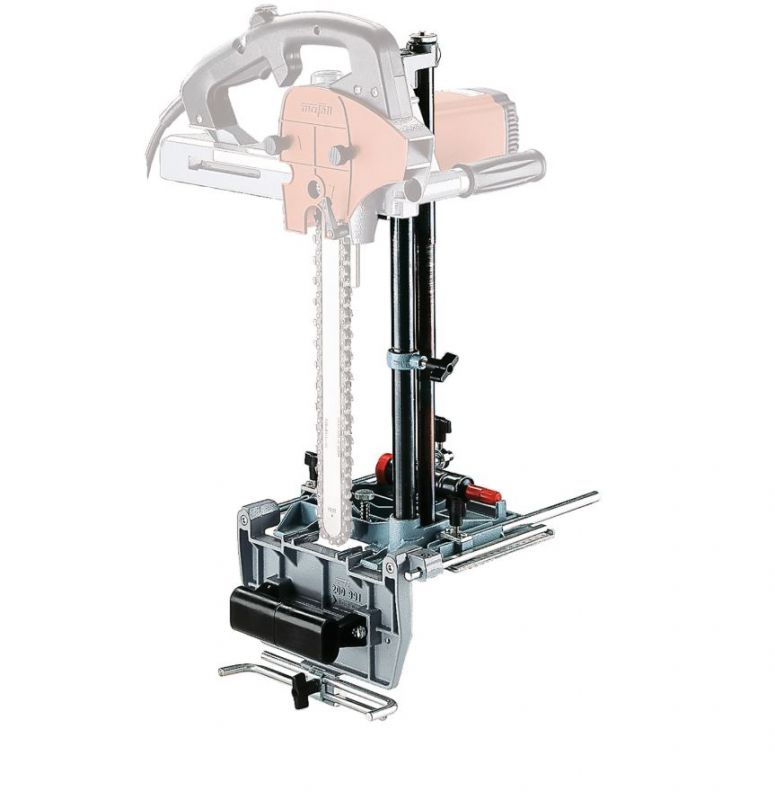

Mafell SG 230 Slot Mortising Attachment for LS 103 - 200990

• The SG 230 is one of three options for the Chain Mortiser LS 103 Ec for cutting slots in beams and glulam.

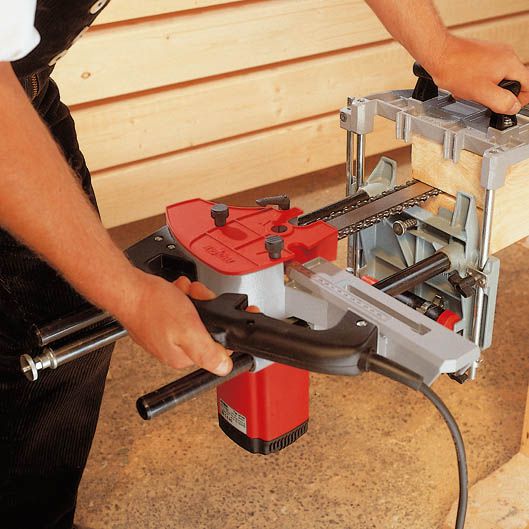

• Channels for supply lines, slots in posts or for concealed beam joints: with the SG 230 you can cut slots in any timber up to a depth of 285 mm (11 1/4 in.). With working depths up to 230 mm, a spring-loaded mechanism assists the return to the starting position.
• With a weight of just 16.7 kg (36.8 lbs), you can even cut slots in fitted beams.
• With this combination, the coordination of slot mortising attachment and chain mortiser enables you to make 100 % perfect size slots from beginning to end.

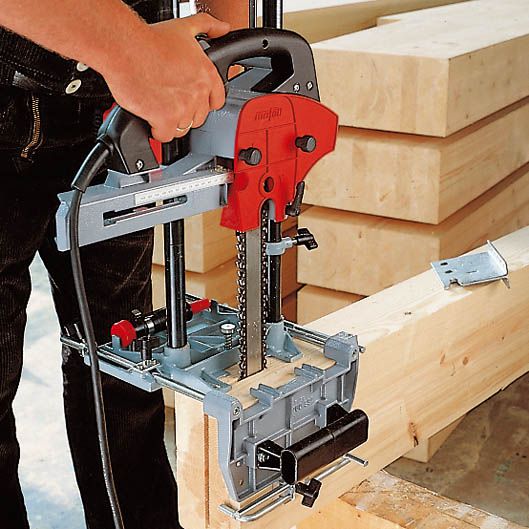

• Cutting slots for beam joints and connectors
• Compatible materials include solid wood, trusses and laminated beams

• 1 Grease gun; Ref. No. 076158
•  boxed

• Mortising depth vertical / horizontal 230 / 285 mm
• Mortising width in one cut 6 - 21 mm
• Mortising length in one cut 50 mm
• Weight 7.7 kg

Mafell SG 230 Slot Mortising Attachment Manual
