Mafell SG 500 Slot Mortising Attachment for LS 103 - 201005
Product Code: MAF/AC/201005
Brand: Mafell
Stock Due Soon
Please Call For Update
Please Call For Update
£8,912.90 Inc. VAT
£7,427.42 Exc. VAT

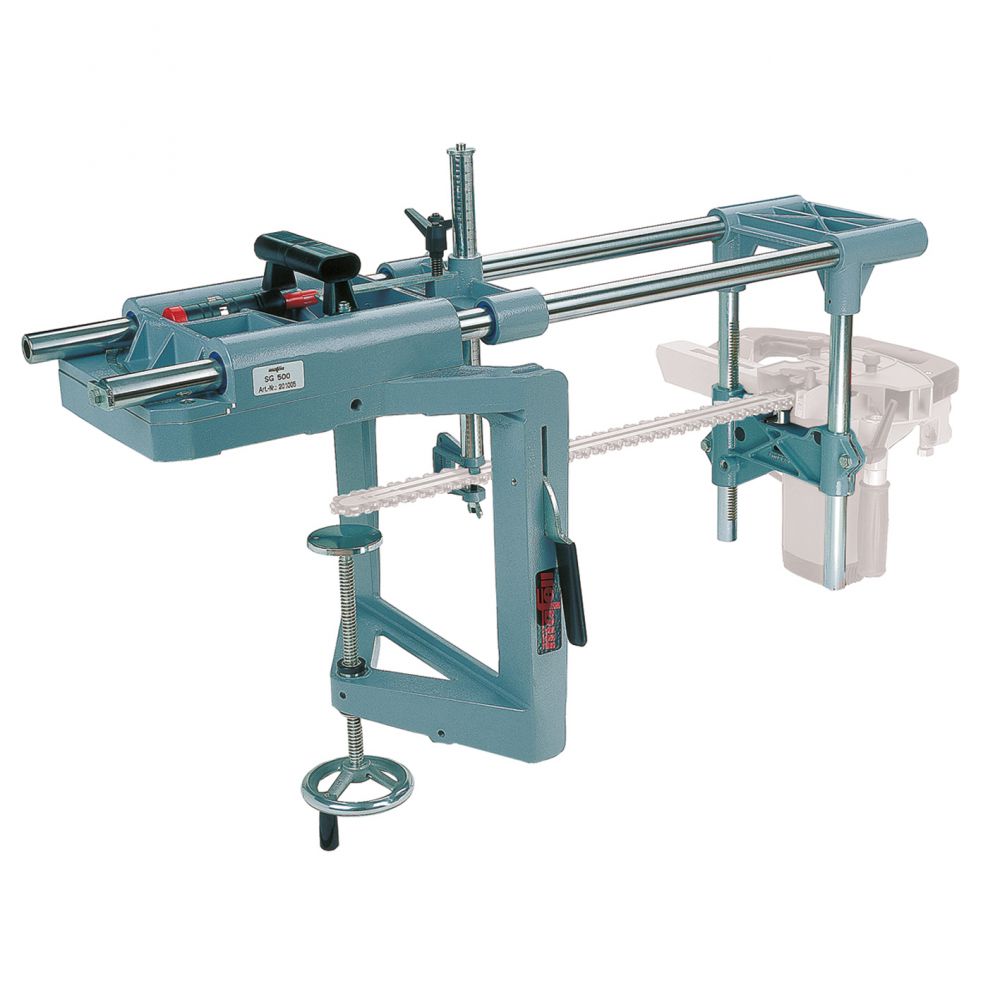

Mafell Slot Mortising Attachment SG 500 for LS 103
Ref: 201005
Key Features
- Here you can really go in-depth! With 500 mm (19 11/16 in.) mortising depth and 50 mm (1 15/16 in.) mortising width with each individual cut.
- The guide angle can be tilted up to 45 degrees on either side.

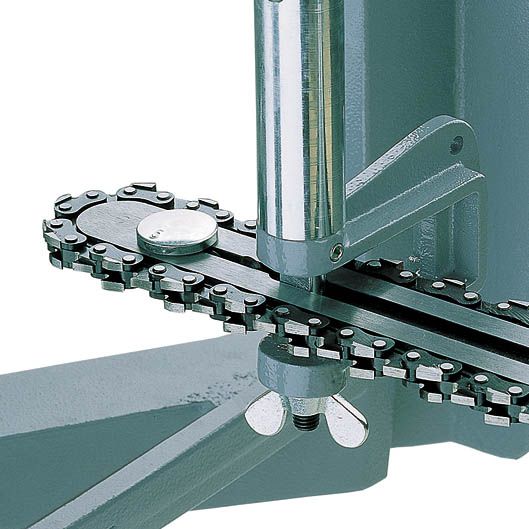

- It is supplied with 3 guide pieces (3, 5 and 7 mm (1/8, 3/16 and 1/4 in.)) which can be attached to the front end of the guide rail. Wider slots can thus be achieved by making a second cut. The inserted guide piece ensures that the chain does not err into the first cut.
Strengths and benefits
- Robust, torsion free guide support stand – for perfect size slots.
- Tilt range 45 ° – for various applications.
- 500 mm (19 11/16 in.) mortising depth – for large cuts.
Applications
- Compatible materials include solid wood and laminated beams
Items included
- 3 Guide pieces 3, 5, 7 mm (1/8, 3/16, 1/4 in.)
- Clamping device; Ref. No. 039602
- 1 Grease gun; Ref. No. 076158
- 500 mm (19 11/16 in.) mortising depth
- Tilt range 45 °
- boxed
Technical details
- Mortising depth vertical / horizontal 500 mm
- Mortising width in one cut 10 - 17 mm
- Mortising length in one cut 50 mm
- Weight 31.4 kg
