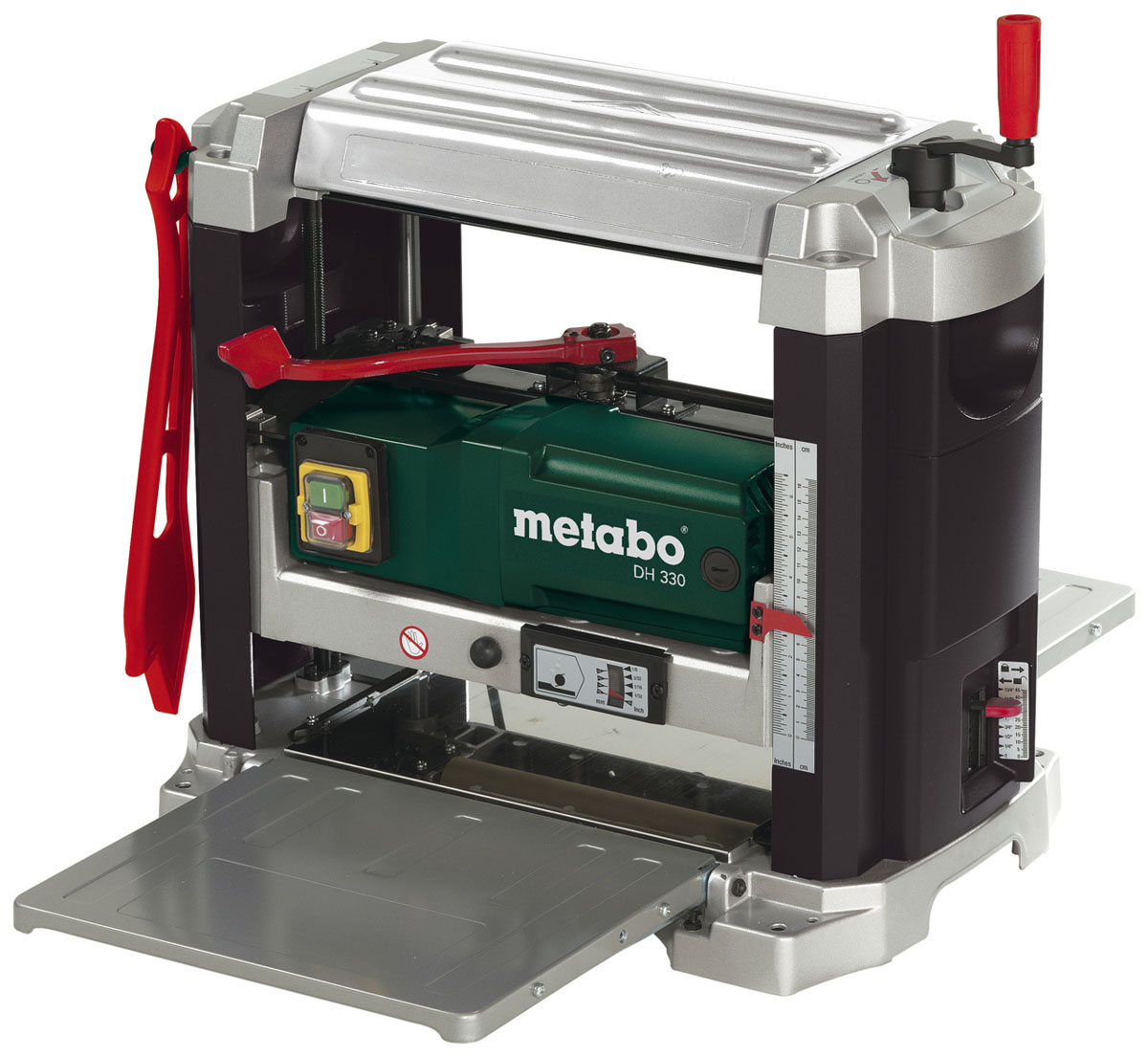

Metabo DH 330 240V, 1.8 KW Bench Top Thicknesser

Metabo DH 330 240V, 1.8 KW Thicknesser - (Ref: 0200033000)

• Ideal for mobile use due to low weight.
• Stable gear for uniform work piece feed.
• Convenient height adjustment with crank handle.

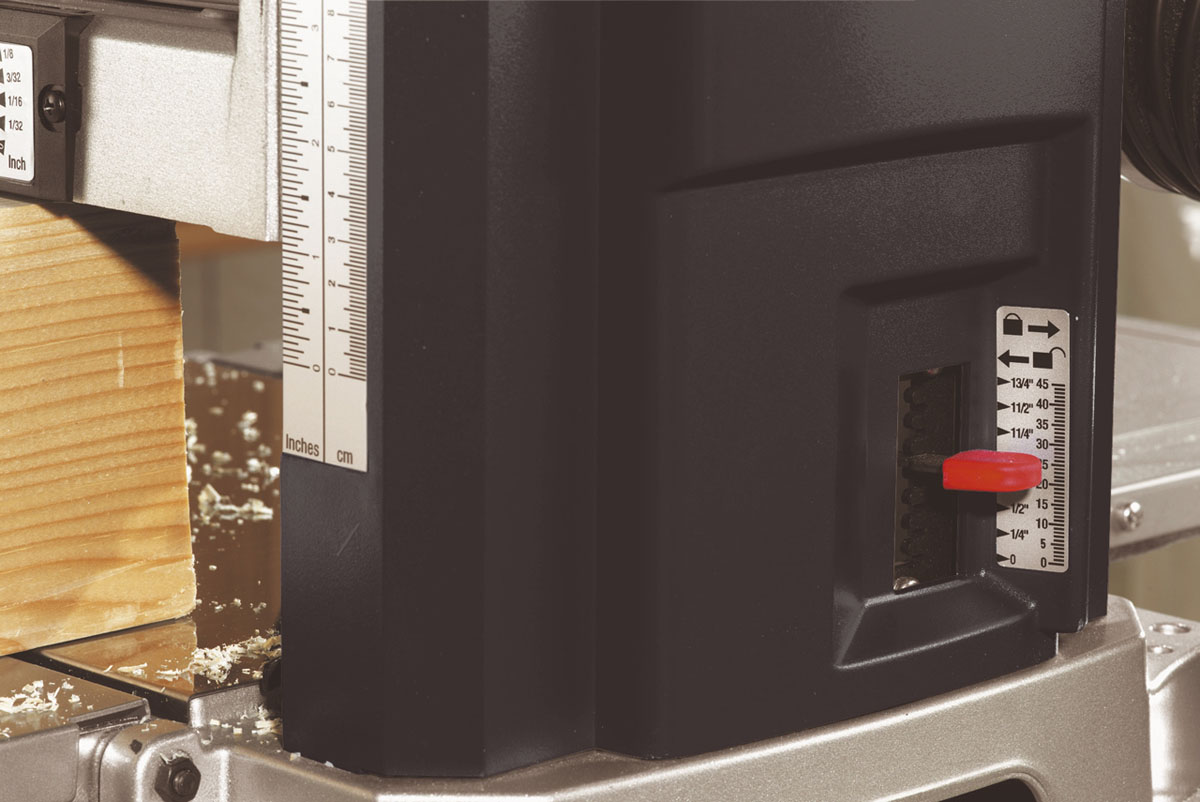

• Easy setting of common passage heights using stop points.
• Powerful universal motor for powerful lugging drive and even planing result.
• Restart protection: prevents unintentional start-up after power supply interruption.
• Precise thickness adjustment for quick and exact planning.
• Large feed and exit tables support the conveyance of long materials.
• Planing locking mechanism prevents unintentional adjustment of the chip removal setting.

• 2 integrated HSS reversible planer blades.
• Push stick.
• Extraction nozzle.

• Dimensions 579 x 857 x 574 mm.
• Chip removal bench thicknesser 0 - 3 mm.
• Material thickness table Cast aluminium / special steel aluminium.
• Thickness table L x W 840 x 330 mm.
• Passage height/width 152 / 330 mm.
• Feed rate 7 m/min.
• Diameter of blade shaft 47 mm.
• Number of blades 2.
• Revolutions of blade shaft 9800 rpm.
• Rated input power 1.8 kW.
• Weight 35 kg.
• Noise emission.
• Uncertainty of measurement K 4 dB(A).

Metabo DH 330 Bench Thicknesser Owners Manual

Metabo Service

• Whoever buys a Metabo machine, has consciously chosen the best quality: Long service life, robust design, user friendliness and safety. A real Metabo works as hard as you. As regards service, we have three outstanding services to offer because that's what you deserve.


XXL warranty - The Metabo 3-year warranty

• Our power tools have a particularly long service life. Since repairs are so rarely required, Metabo has developed an additional warranty for you - the XXL-warranty.
• If you register, the normal warranty is extended to 3 years. Prerequisite is the sales receipt together with the XXL warranty certificate that you can generate after registering your machines.
• You can register within the first 4 weeks after the purchase.
