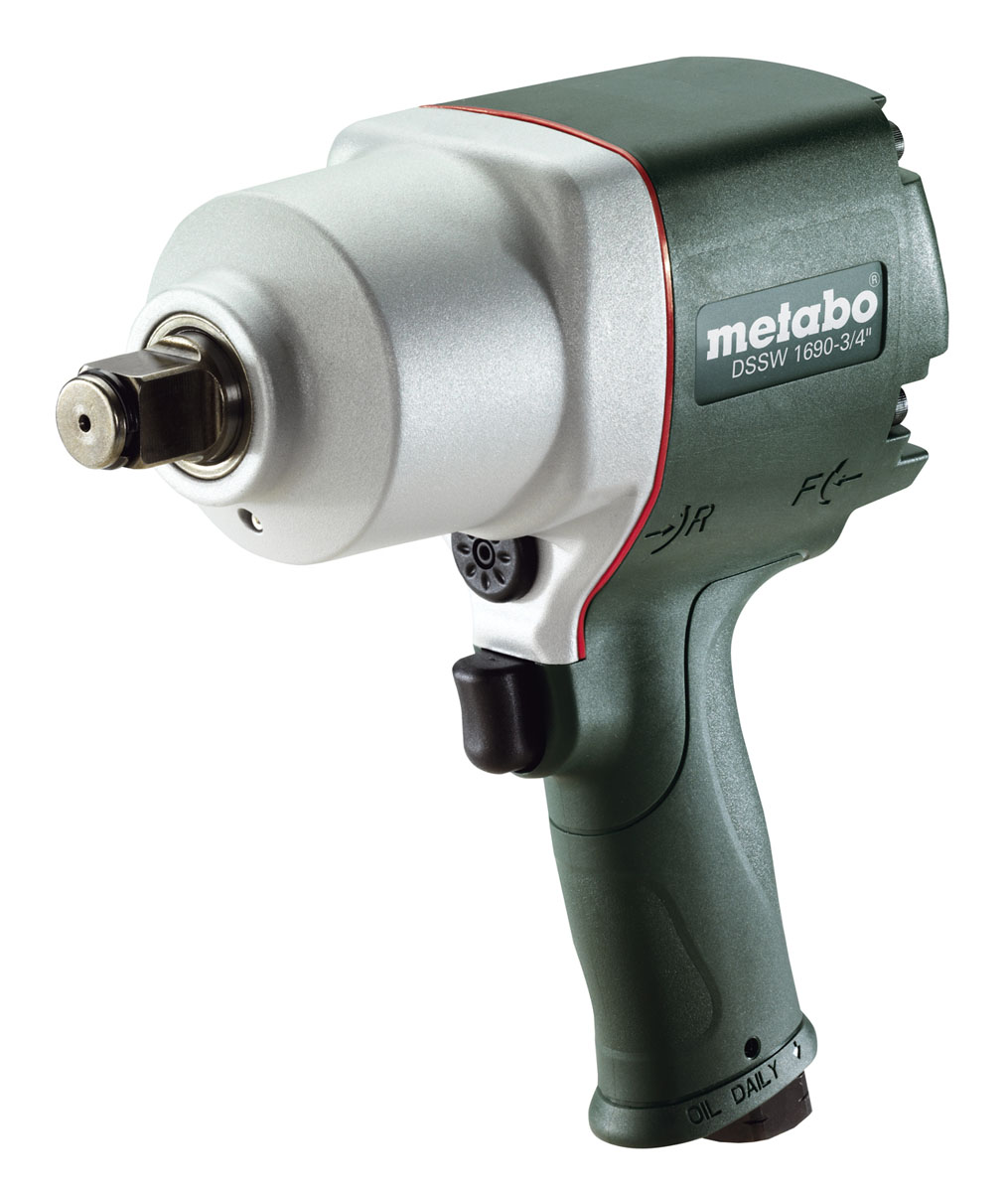

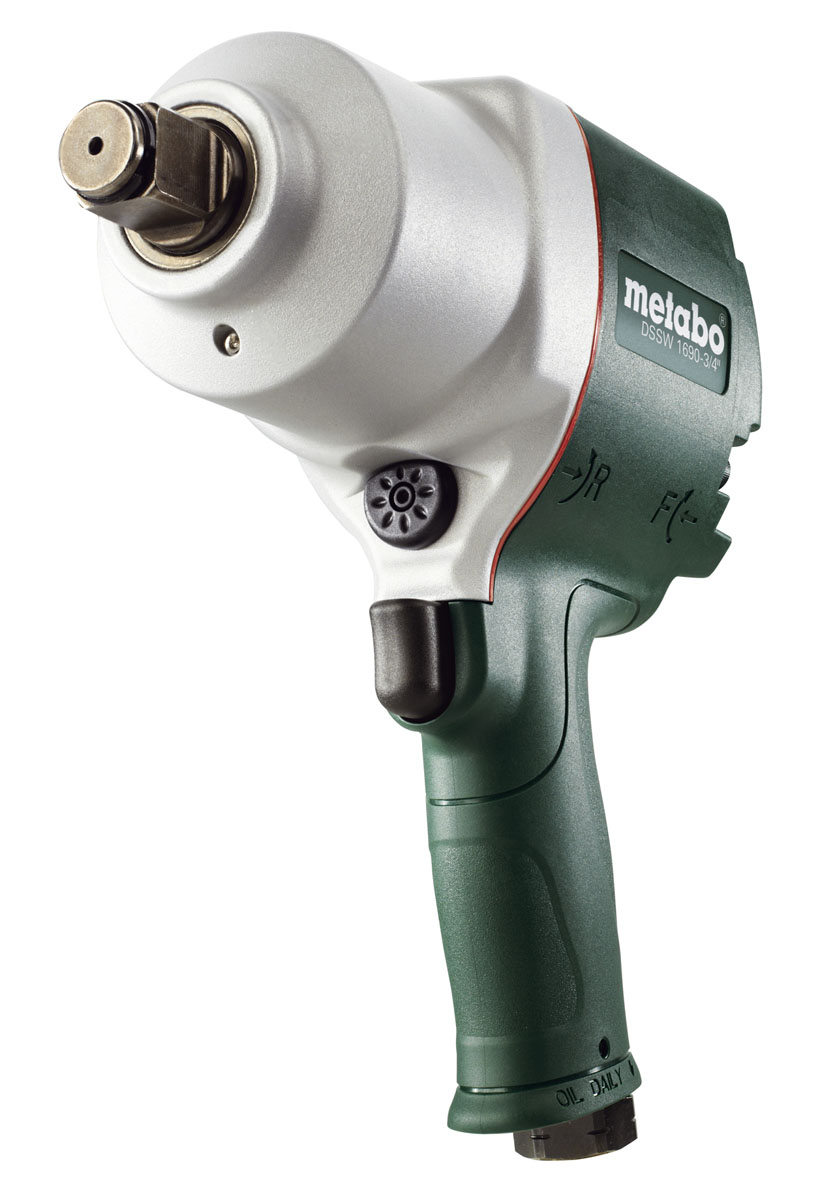

Metabo DSSW 1690-3/4" Compressed Air Impact Wrench

Metabo DSSW 1690-3/4": Compressed Air 3/4" Impact Wrench - ref: 601550000

• For tightening/loosening wheel bolts on automobiles and transporters, for assembly work and repairs. Universal use.
• Practical and lightweight for easy operation even in difficult to reach places.
• Ergonomic composite housing: insulated non-slip and low vibration for comfortable work.
• Ergonomic forward/reverse switching with convenient one-hand operation.
• User-friendly exhaust guide through the handle avoids dust turbulence in the working area.
• Torque can be set at three levels for different tightening applications.
• Durable twin hammer

• EURO and ARO/Orion plug-in nipple 3/8".
• Hose nozzle 10 mm and hose clamp according to ISO 11148.
• Oil bottles.
• In cardboard box

• Operating pressure 6.2 bar.
• Air requirement 10.5 l/s.
• Square holder 3/4".
• Loosening torque 1690 Nm.
• Weight 3.5 kg.
• Vibration.
• Impact screwdriving 19.7 m/s².
• Uncertainty of measurement K 2.44 m/s².
• Noise emission.
• Sound pressure level 103 dB(A).
• Sound power level (LwA) 114 dB(A).
• Uncertainty of measurement K 3 dB(A).

Metabo DSSW 1690-3/4" Compressed Air Impact Wrench Owners Manual

Would you like to know which compressor is the right one for your applications? First you have to know which tools will be used and if these will be used for a short while or continuously. The appropriate air requirements can then be found in this table.
