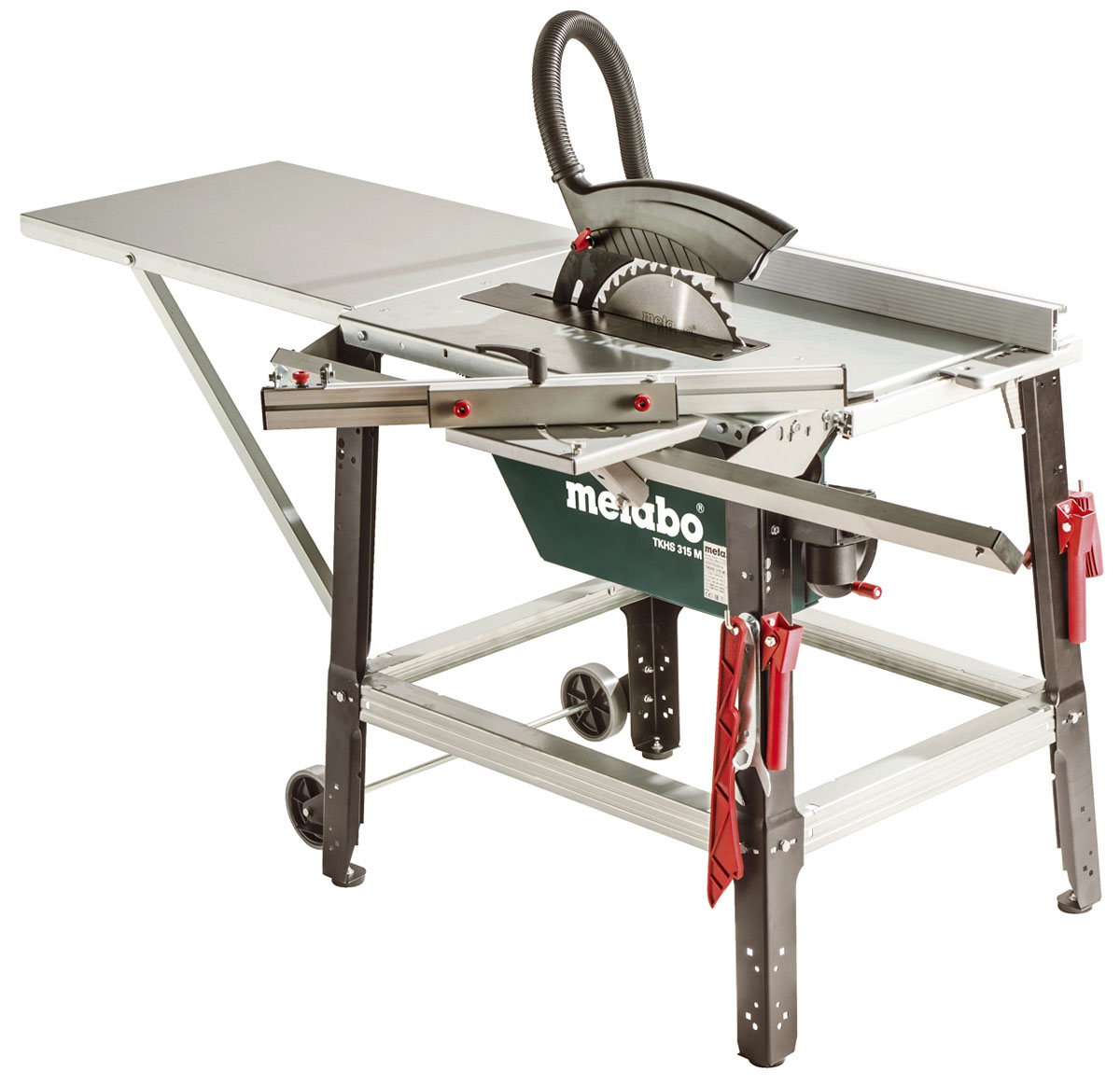

Metabo TKHS 315 M 110V + Sliding carriage

Metabo TKHS 315 M 110V + Sliding carriage

• Restart protection: prevents unintentional start-up after power supply interruption.
• Precise, powerful table saw in professional configuration – quick to adapt for every application.

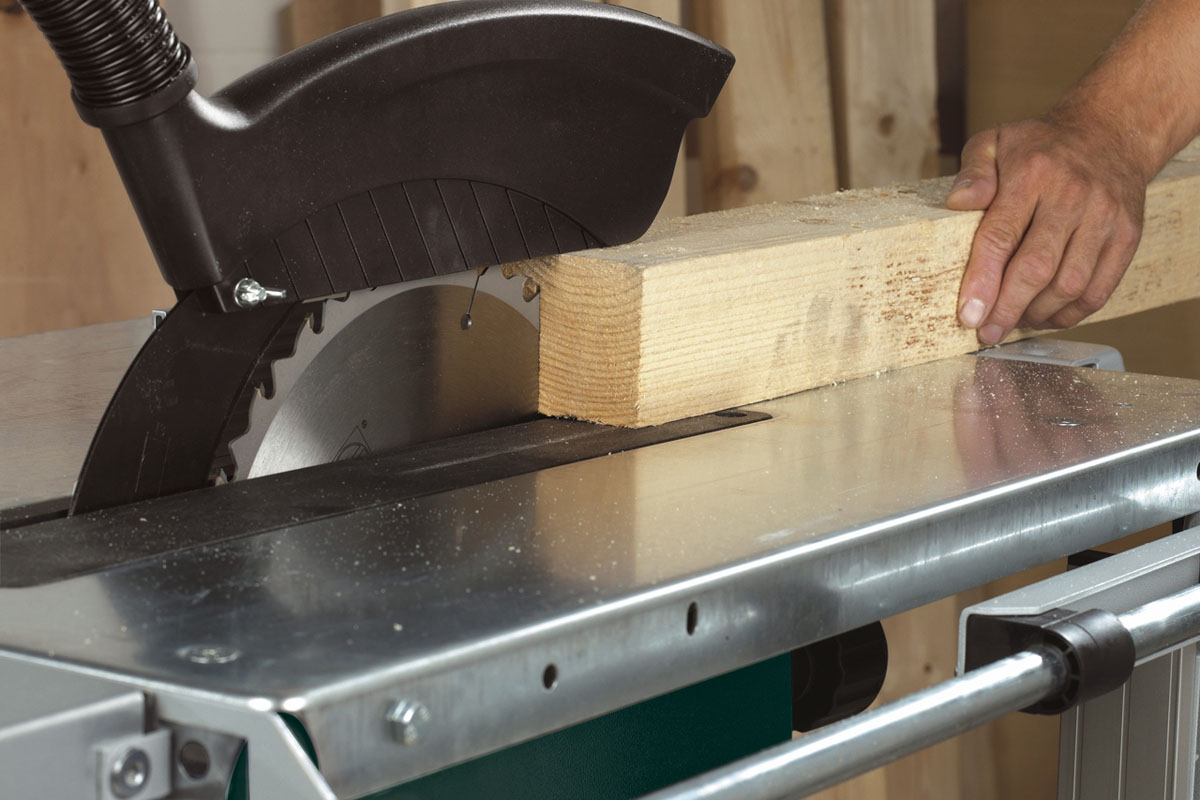

• Ideal for sawing squared timber, boards, panels and wood-like materials in the workshop and at construction sites.
• Quiet induction motor with motor brake and overload protection - maintenance-free and robust..

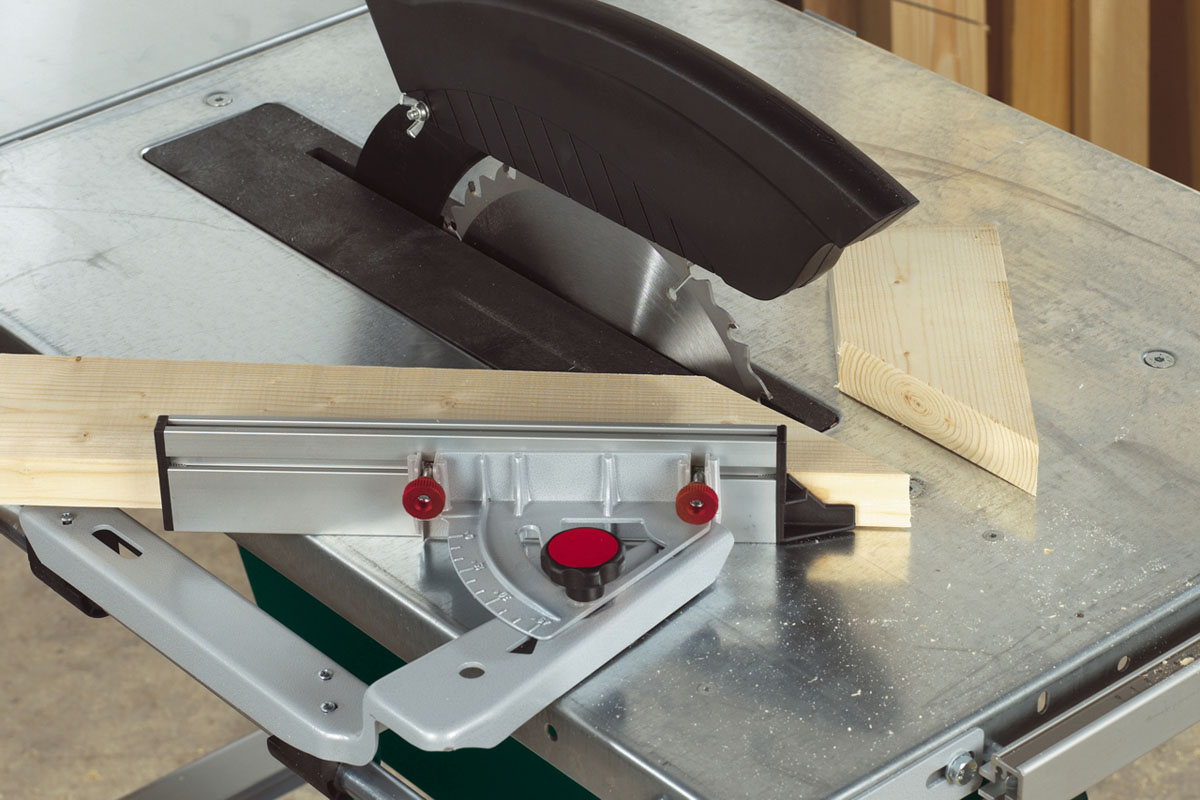

• Mitre fence with linear stop, can also be used a sliding table.

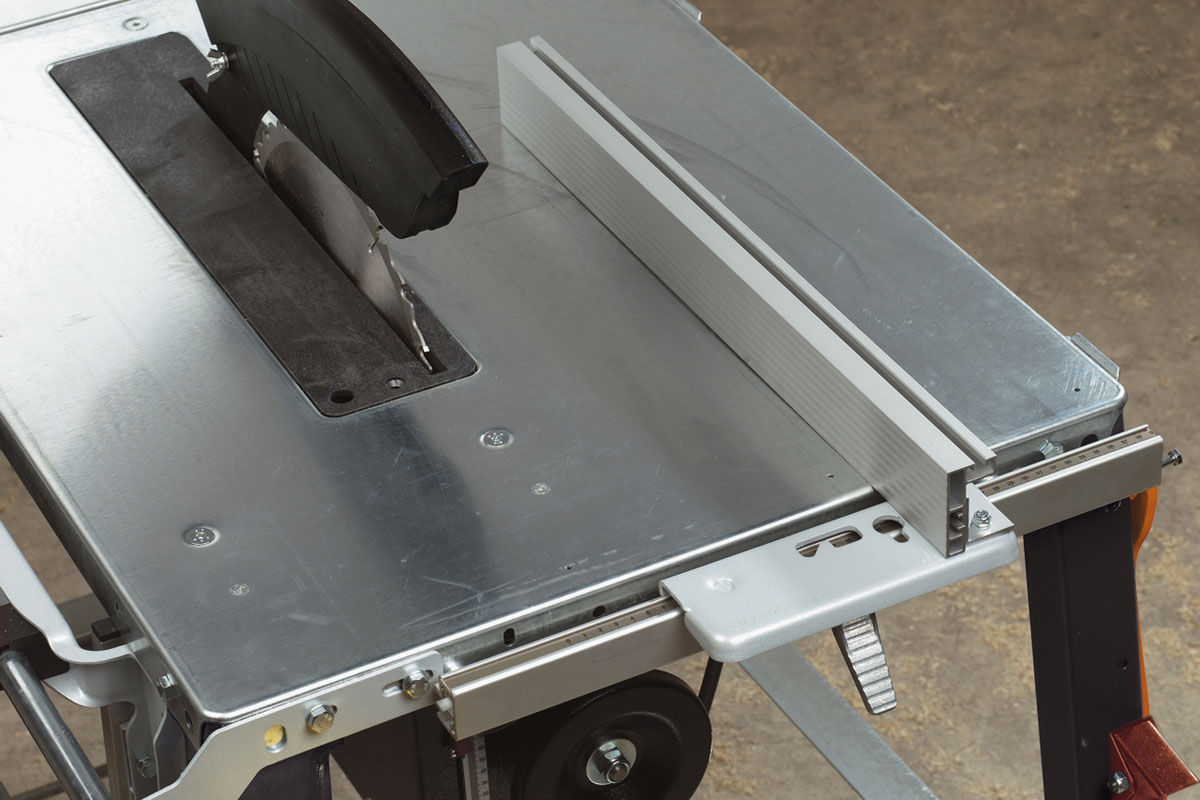

• Sturdy parallel guide/ripping fence with quick fastening.
• Freely height-adjustable saw blade.

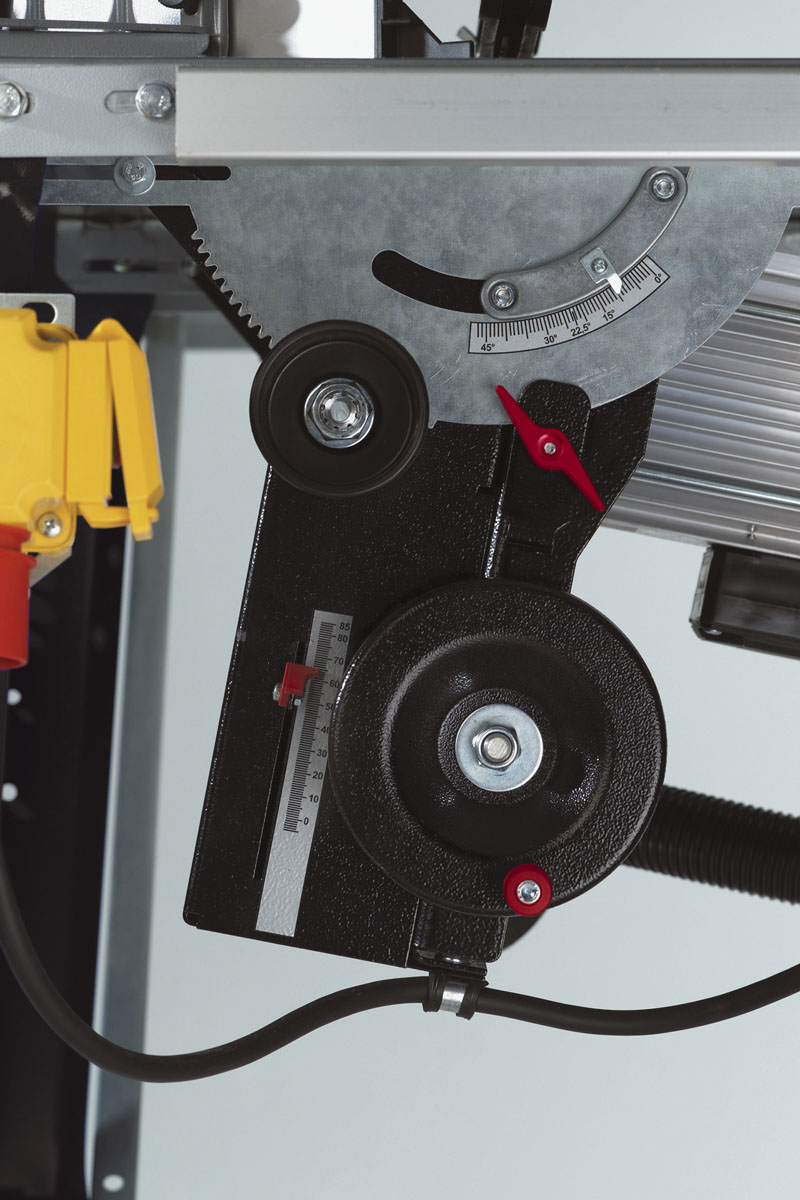

• Comfortable setting of the saw blade inclination from the front.
• Sturdy, powder-coated sheet steel design and galvanised table-top.
• Foldable table length extension.
• Frame and motor pre-mounted.

• Carbide saw blade with alternately bevel-ground tips (24 teeth).
• Wheel set incl. handles.
• Parallel guide / rip fence.
• Mitre fence.
• Table extension (600 x 800 mm).
• Chip and dust extraction unit.
• Push stick + Sliding carriage

• Dimensions 1700 x 700 x 1000 mm.
• Max. support surface 800 x 600 mm.
• Working height 850 mm.
• Cutting height 0 - 85 mm.
• Maximum cutting height 90/45° 85 / 53 mm.
• Maximum cutting width at parallel guide/rip fence 340 mm.
• Maximum material width at mitre fence 250 mm.
• No-load speed 3000 rpm.
• Cutting speed 50 m/s.
• Saw blade 315 x 30 mm.
• Saw blade swivel range 0 - 45 °.
• Rated input power 2500 W.
• Output power 1800 W.
• Weight 75 kg.
• Noise emission.
• Sound pressure level 97 dB(A).
• Sound power level (LwA) 106 dB(A).
• Uncertainty of measurement K 4 dB(A).
• Sliding carriage: 0910058967
• Enables exact cuts, even on larger workpieces.
• Precise sliding table on 6 ball bearings.
• Complete with fence guide, swivels 90-45°.
• Fence pointer for precise repeated cuts
• Maximum cutting width 90°/45°.
• 640 / 930 mm.
• Overall length 1270 mm.
• Support weight 24 kg
