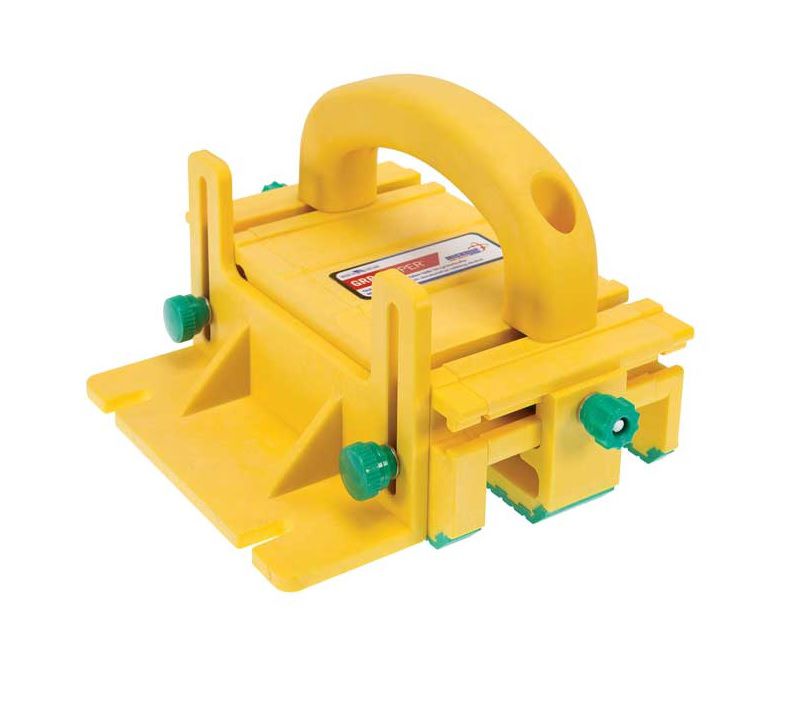

Microjig GRR-RIPPER (GR-100) 3D Pushblock

Microjig GRR-RIPPER (GR-100) 3D Pushblock

Over 30 Uses for Table Saws, Bandsaws, Router Tables etc

ref: GR-100

The GRR-RIPPER® 3D Pushblock is engineered to give you the most accurate cuts possible while protecting your hands at all times. No other pushblock offers this level of precision, control, and safety. Make difficult cuts with ease, and prevent kickback like never before.

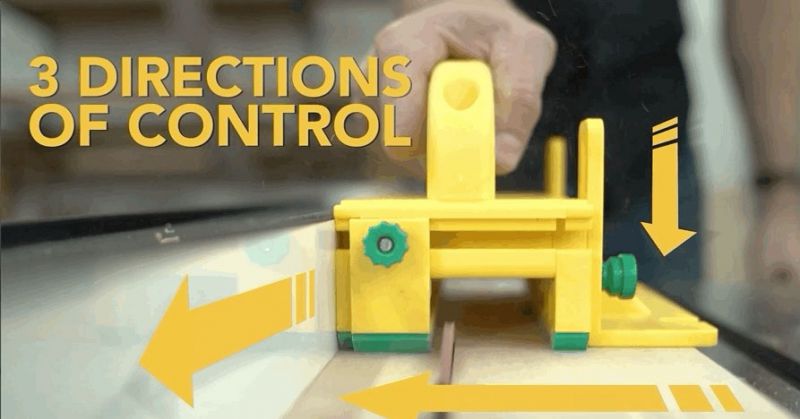

• Three directions of force. Three directions of force provide essential stability for superior precision, safety, and control. Downward pressure stabilizes work piece on a flat surface. Inward pressure against the fence virtually eliminates kickback. Forward pressure feeds stock consistently through the cut to eliminate burning and blade marks.
• Virtually eliminates kickback on table saws. Kickback occurs when the workpiece strays from the fence, and gets pinched between the saw blade and the fence. The rear teeth of the blade grab the workpiece, turning it into a dangerous projectile. The only way to avoid kickback is to maintain control of your workpiece through the entire cut. The GRR-RIPPER® provides downward and inward pressure, keeping both sides of the cut parallel to the blade. This prevents the workpiece from straying from the rip fence, virtually eliminating kickback.

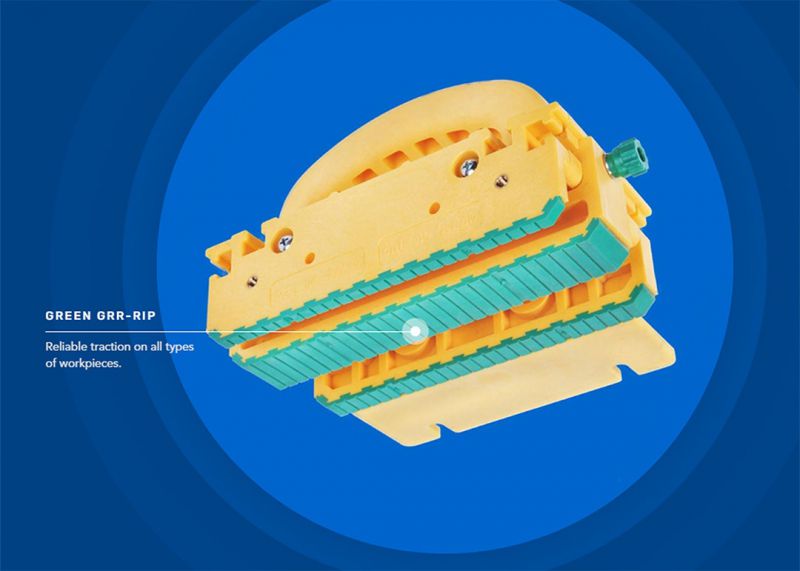

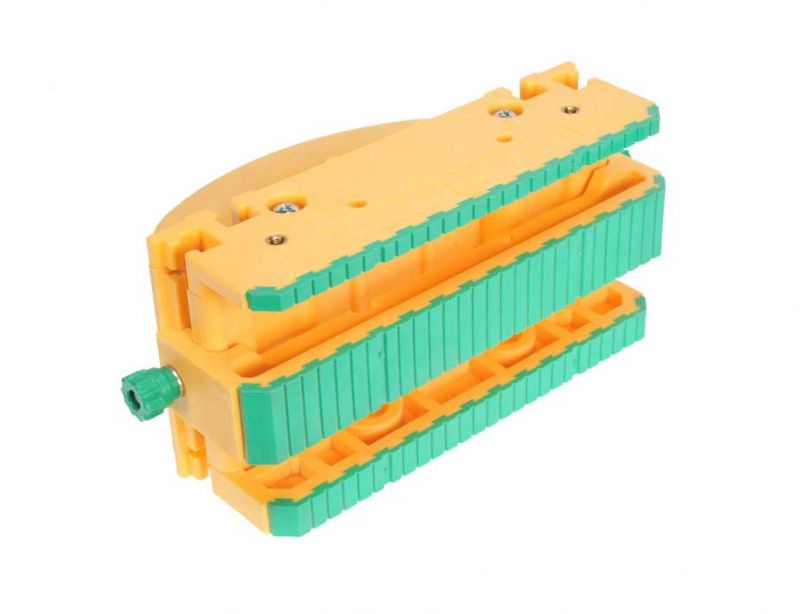

• Ultimate gripping power. GREEN GRR-RIP® gives you incredible traction for easy handling of hardwoods, composites, plastics and aluminum.  Its treaded surface conforms to the workpiece for superior control. Dust and buildup easily wipes off with denatured alcohol. The additional 1″ of GREEN GRR-RIP® on the Adjustable Spacer provides even more traction for ADVANCED control.

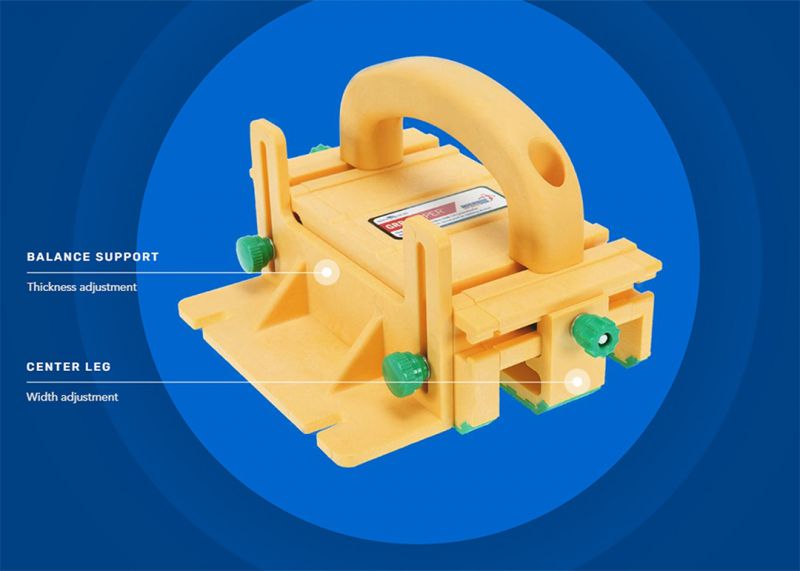

• Fully Adjustable. Center Leg: Adjusts to varying material widths, allowing you to control both the keeper and off-cut sides of your workpiece through the entire cut. Balance Support: Adjusts to match material thickness, keeping the GRR-RIPPER® upright and square.

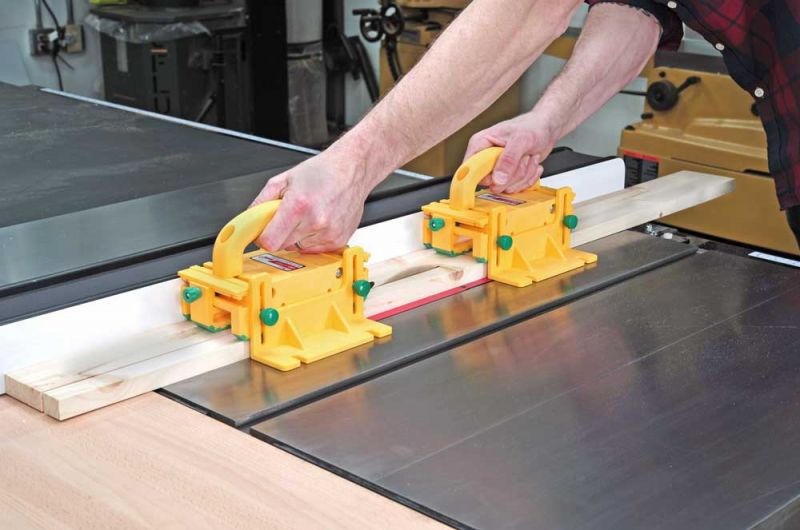

• Rip without stopping and burning. Using two GRR-RIPPERs allows you to feed long stock continuously without stopping, virtually eliminating burning and blade marks caused by inconsistent feed rate. Parts come off the saw ready to use with little to no additional sanding or planing.



• 3-Directional Force for total control of the workpiece
• Moving-Blade-Guard Hand protection
• Precise 1/4" thin rips
• Virtually eliminates kickback
• Work with small stock safely
• Keep clean with alcohol denatured

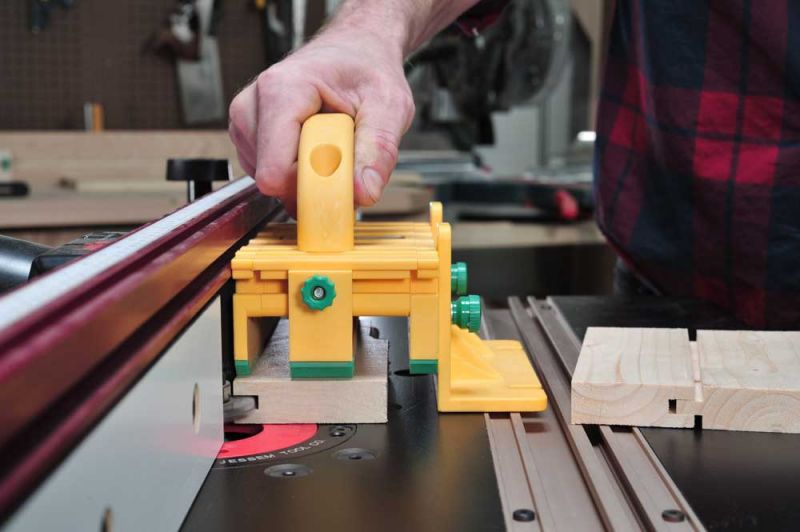

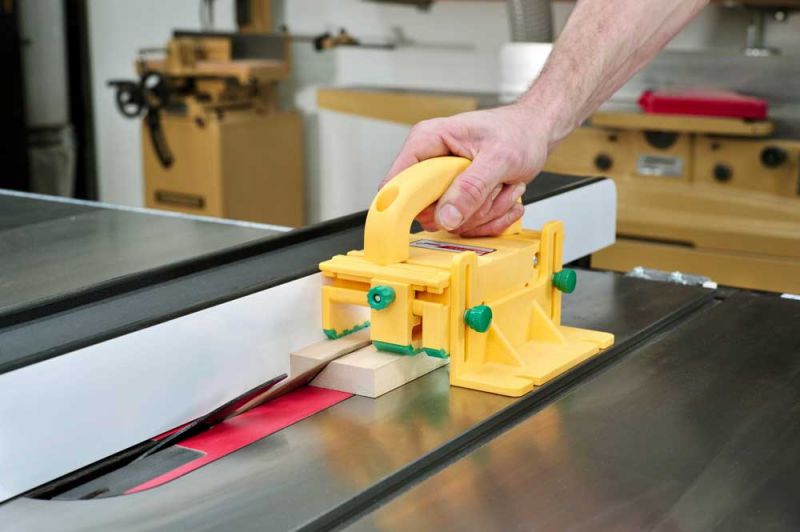

• Table Saws. The GRR-RIPPER was built for the table saw. It acts as a moving blade guard, shielding your hands from the saw blade through the entire cut. Right out of the box, the GRR-RIPPER can cut stock down to ¼” x ¼”. Because it provides 3 directions of control, your cuts will be cleaner and more precise.

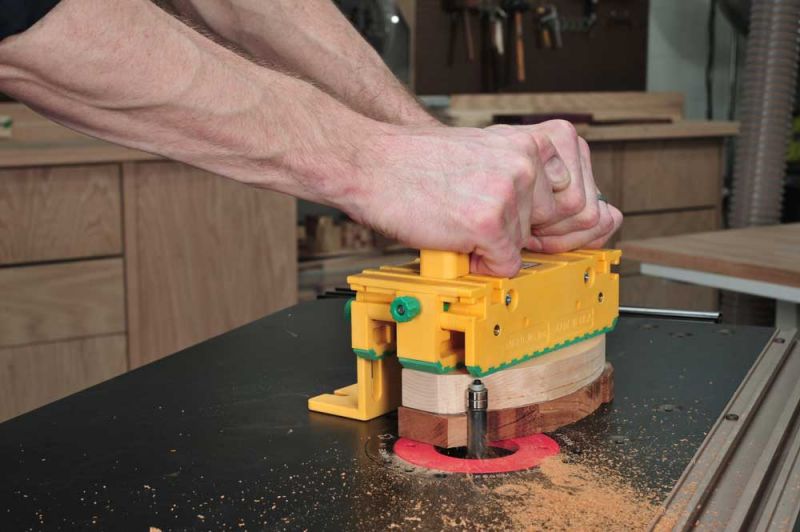

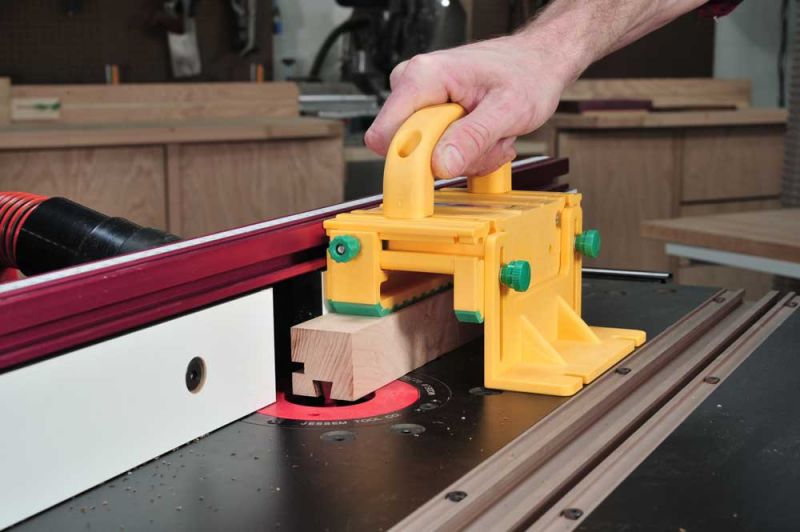

• Router Tables. The GRR-RIPPER provides incredible command over your workpiece on the router table. Whether you’re using the fence or freehand routing, its powerful grip controls stock and protects your hands from dangerous spinning bits.

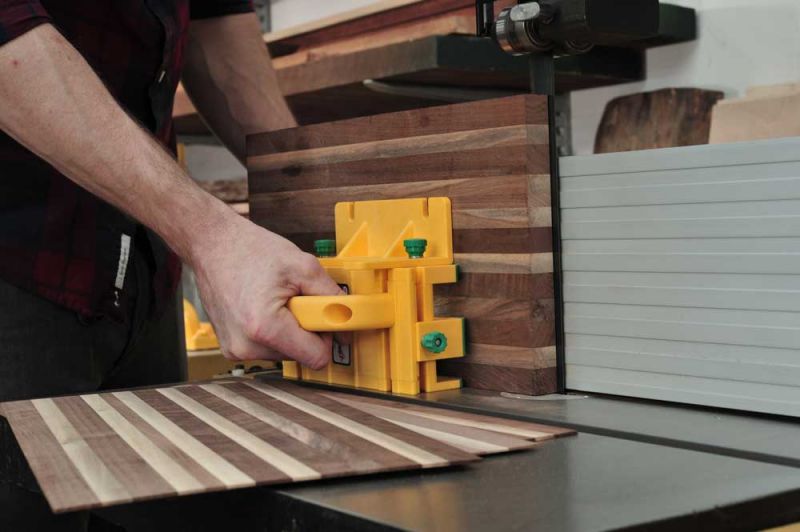

• Band Saws. The GRR-RIPPER's legs and main body maintain a constant 90 degree angle. It can be used on its side which is ideal for resawing on bandsaws. The GRR-RIPPER glides along the table top and applies even pressure against the fence with your hands clear of the blade. Even pressure means less blade drift, resulting in smoother cuts.
• Jointers. The GRR-RIPPER’s proprietary Green GRR-RIP material provides all the traction you need to properly flatten stock on the jointer. Because of its powerful grip, you can feed material over the cutter head without having to apply too much downward pressure.  The GRR-RIPPER makes proper face-jointing technique easy, and safe.





• Main body
• 1/2" Leg
• 1/4" Leg
• Center Leg
• Handle
• Balance Support
• Hardware

Microjig GRR-RIPPER Pushblock Instruction Manual
