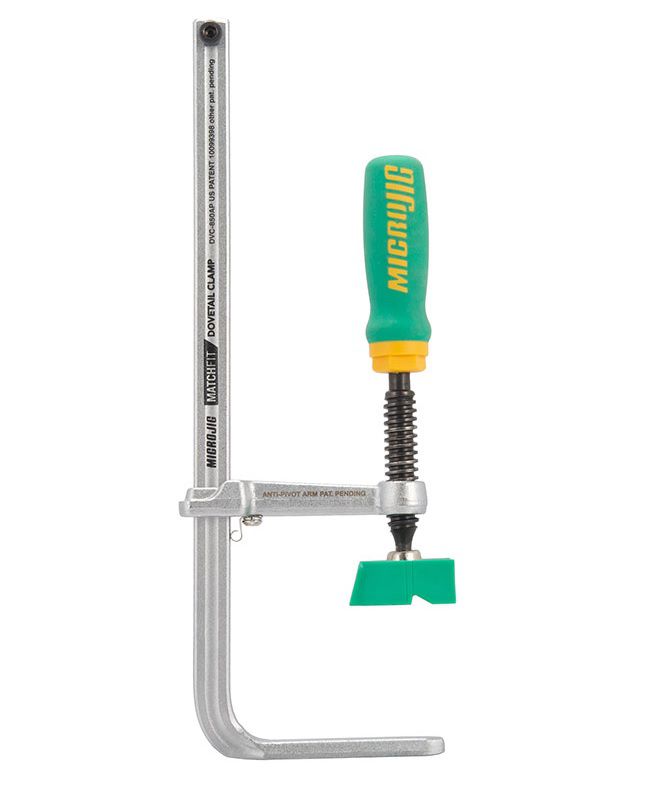

Microjig MATCHFIT Dovetail Track Clamp AP (Anti-Pivot) with X-Pad

The ultimate track clamp. Create your own clamp tracks anywhere you can route a dovetail groove.

• Enjoy the same, limitless functionality as the standard Dovetail Clamps with three added benefits: Anti-Pivot technology keeps the clamp arm in place to make repetitive tasks faster. Included X-PAD™ applies force in two directions and helps you secure material with fewer clamps. Increased clamping range (to 8.5").
• Larger more versatile clamp allows more capacity for clamping larger items.

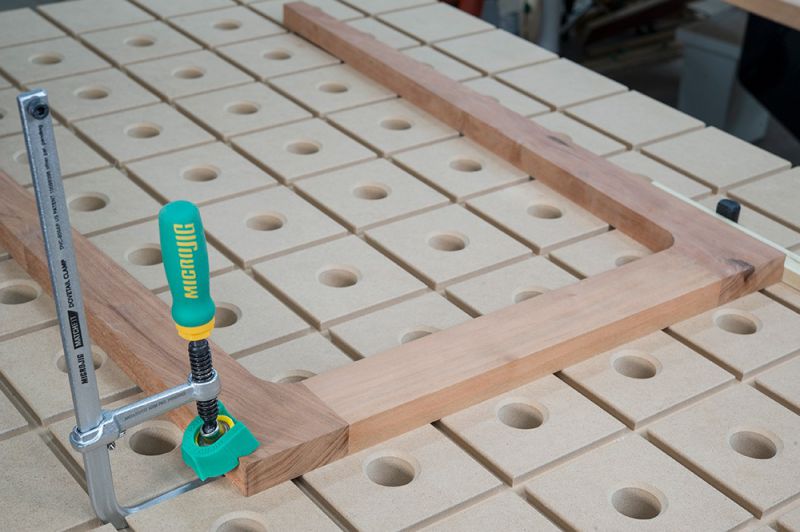

• Perfect for clamping corners, dowels, and odd shapes.
• Very strong and can clamp those tricky angles.

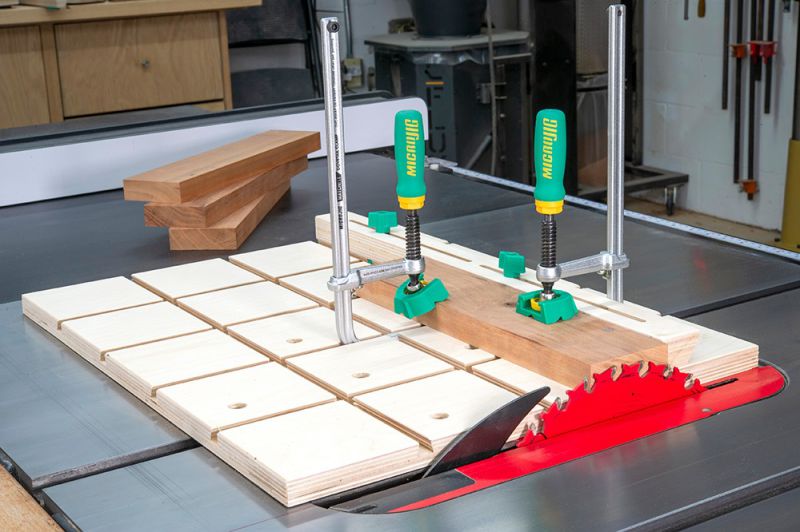

• Easily build additional jigs, sleds, fences, workbenches, drill press tables by routing tracks with the MatchFit dovetail profile.

• Work faster with a clamp arm that won't drop.

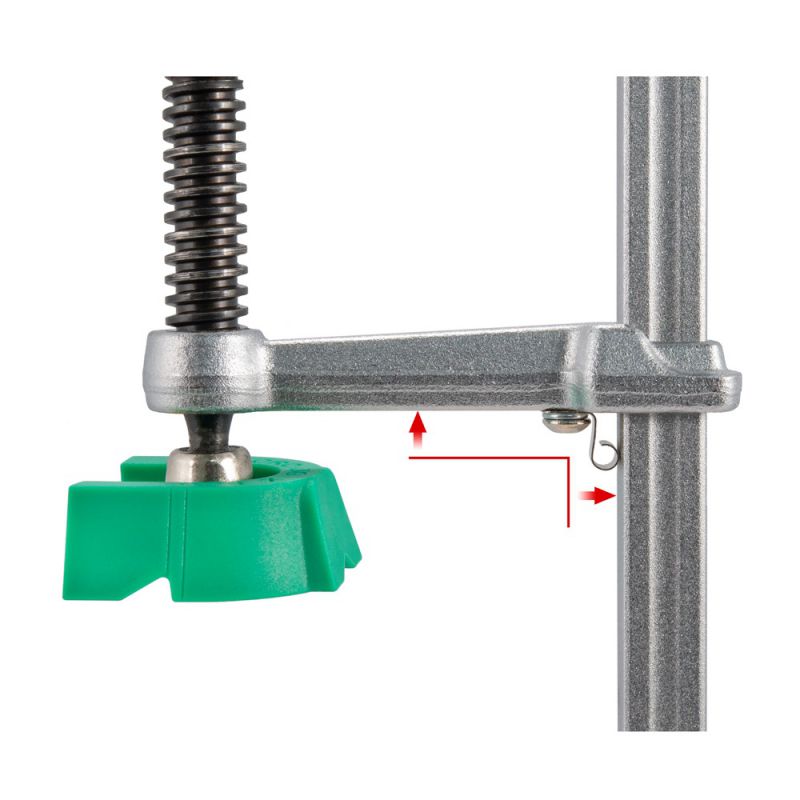

• The Anti-Pivot Coil Spring prevents the clamp arm from pivoting and dropping when switching workpieces in repetitive processes. Save time and work faster without having to reset your clamp height for every part.
• Clamp in two directions with a single clamp.

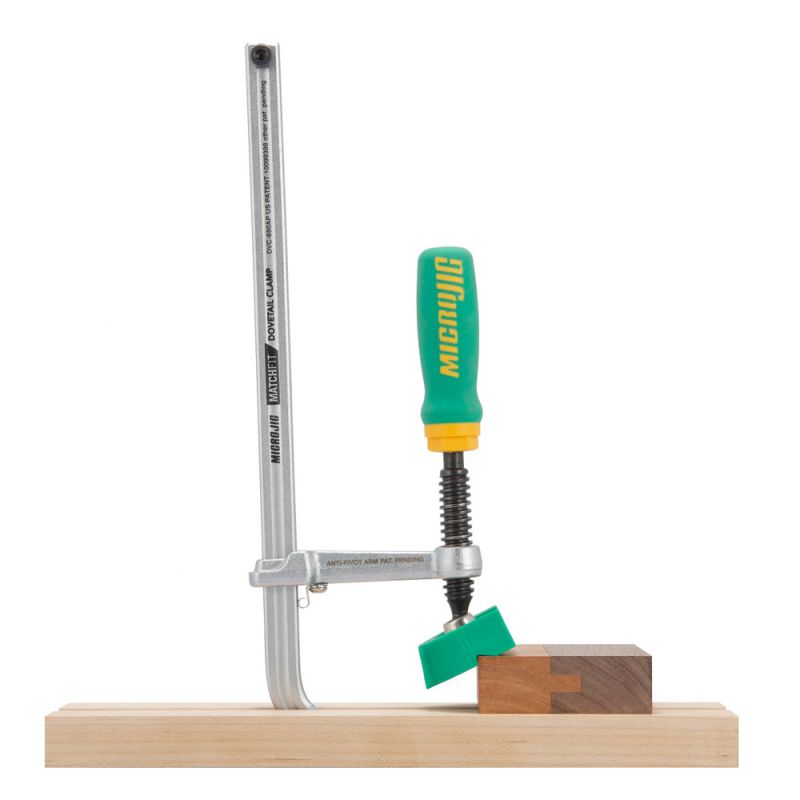

• The included X-PAD™ simultaneously applies hold-down and in-line pressure as the clamp tightens. The combined forces keep your workpieces flat and eliminate the need for two or more different clamps.
• The V-groove profile gives you two points of contact to clamp round or oblong stock with ease.
• The MATCHFIT dovetail track system allows you to create your own tracks with just a router bit. It’s like an infinite supply of T-track without the cost of T-track.

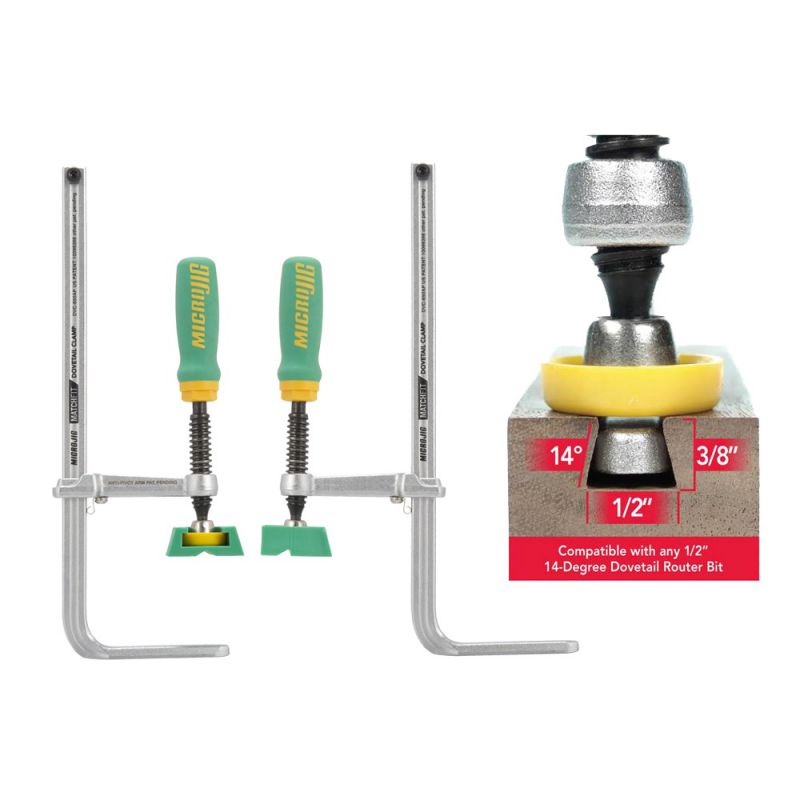

• Create your own clamp tracks anywhere you can route. Simply route a groove anywhere you need using a 1/2”–14º dovetail router bit.
• Secure material with zero interference. The dovetail clamp AP slides below the surface, so you can secure material without the clamp getting in the way.

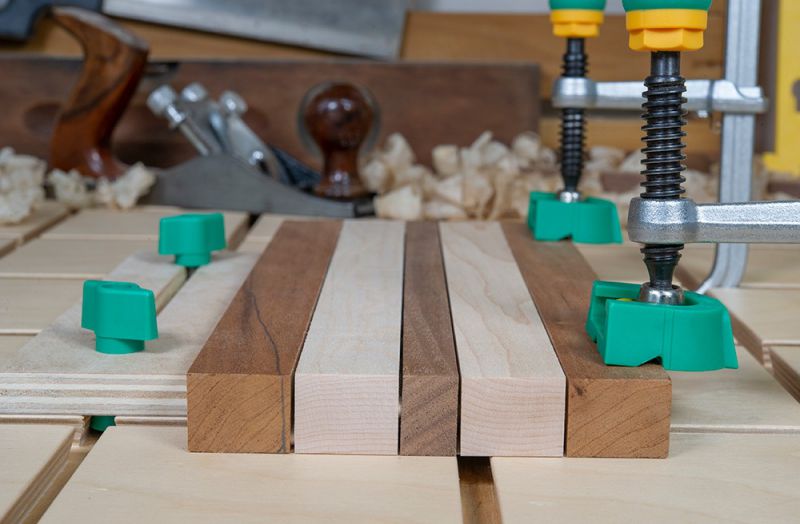

• Use with a spacer to secure material from a distance. A spacer provides in-line pressure - leaving the top of the material unobstructed for sanding, flattening, template routing or CNC work.

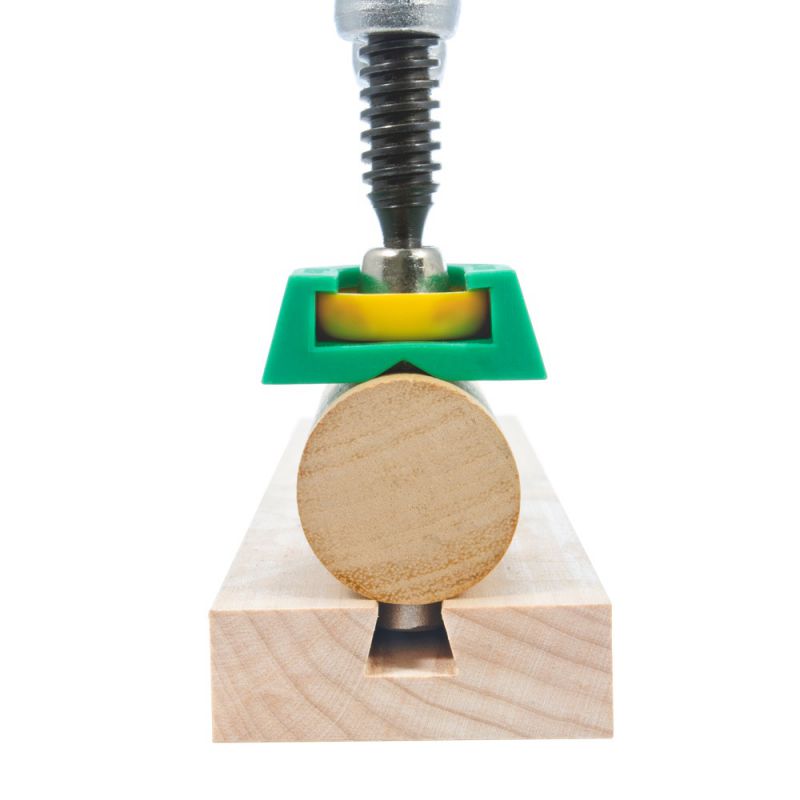

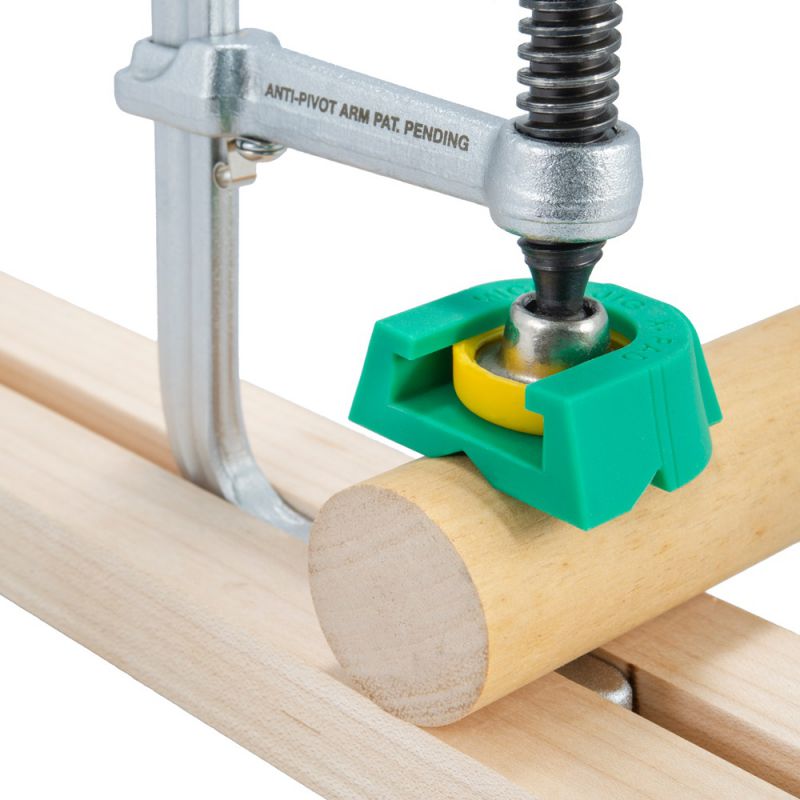

• Clamp round stock with ease. Turn the X-Pad 90 degrees to clamp round and oblong profile stock with a single clamp.
