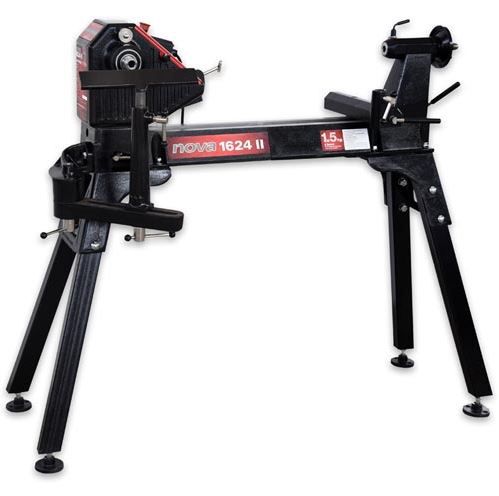

NOVA 1624 II Woodturning Lathe with Leg Stand

NOVA 1624 II Wood Lathe - Woodturning Lathe and Leg Stand
Ref: 24224

The NOVA 1624 II is an excellent entry level woodworking lathe that has enough versatility and power to give many years of turning. 8 speed range – features a low speed of 215 rpm essential for serious and safe large piece and bowl turning work. Steel and cast iron stand included as standard equipment. Full swivel head functionality and solid cast iron components complete the package. Available in 11/4" x 8TPI thread. Includes 1.5HP AC motor, belt, stand, 2MT live center, 2MT spur/drive center, 3" faceplate, 12" toolrest, manual and fastenings.

• Bowl turning capacity: 400mm/16″ onboard. 740mm/29″ outboard. (Using optional outrigger accessory)
• Between centres: Standard 600mm/24″. Extendable to as long as you want in 510mm/20″ increments, using optional bed extension accessory.
• Powerful 1.5 HP Motor delivers continuous power. Provides 50% more power than comparable lathes on the market, to allow for much larger projects
• Forward and Reverse motor function
• Speed range 178 – 3,000 RPM.  Essential low speed when turning large pieces
• Belt drive – cam operated
• Spindle Thread: M33 x 3.5
• Tailstock and headstock: 2MT Hollow
• Cam action easy lock on Tailstock & Toolrest
• Swivel head: 360° swivel and lock at any position, plus detent locating positions at 0, 22.5, 45, 90 and 315 (for left-hand turners) degrees. High accuracy and easy swivel.
• Indexing: 24 Division
• Quality materials – Solid Cast Iron throughout for rock solid performance

Note: This unit replaces the older NOVA 1624 Lathe. All old accessories and parts are interchangeable.

• Weight: 72 kg (158.7 lb) (without motor)
• Swing Over Bed: 400 mm (16 in.)
• Distance Between Centers: 600 mm (24 in.); expandable in 516 mm (20.3 in.) units with add-on Bed sections.
• Swing Outboard: 740 mm (29 in.) with headstock at 90° with outrigger toolrest
