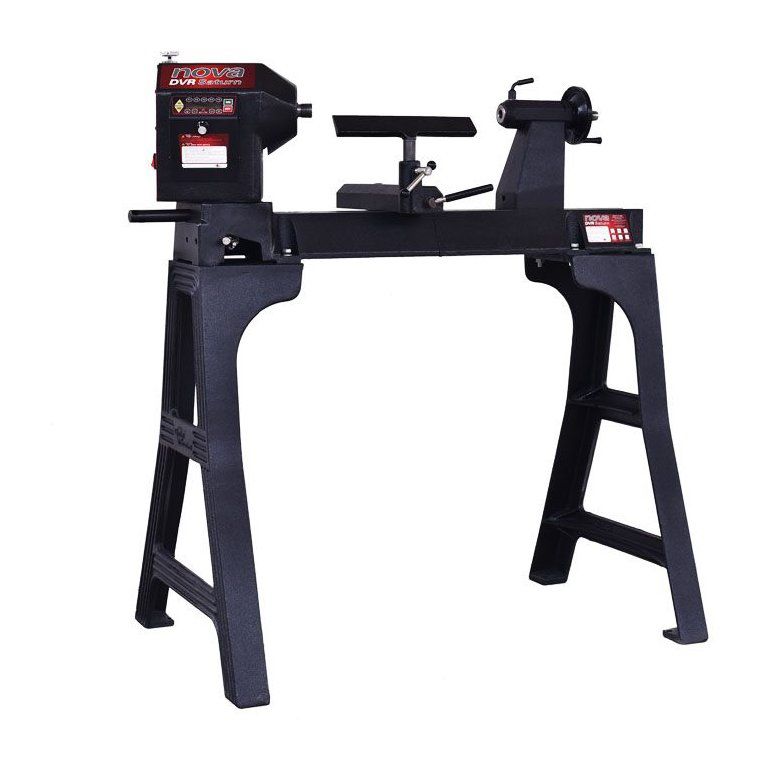

NOVA DVR Saturn XP Woodturning Lathe

NOVA DVR Saturn XP Woodturning Lathe - Ref: 55247

Combines the best features of larger lathes – power, capacity and capability with state of the art technology to make you’re turning more efficient, fun and safer. Saturn DVR is the most versatile lathe on the market, combining proven technology from its predecessor NOVA DVR XP with some great new features.

Intelligent control
Easy to operate, the NOVA Saturn is a DVR SMART lathe. Uses Adaptive Control™ Software. The intelligent computerized control assists you with your turning. It measures the weight of the workpiece and continually adjusts performance accordingly. It senses faults in the setup and advises of safety issues- such as chisel dig in and spindle lock. It then instantly shuts down power to the spindle.

High Torque/Powerful Motor
Instant power when you need it. With its 1.75HP(115V) /2HP(220V), high torque motor not only is it easy to convert to outrigger work for larger bowls, but the lathe also has the power and capacity to handle it with ease.

Faster, more efficient turning
NOVA Saturn DVR Lathe delivers incredible turning smoothness with no belts or pulleys to cause the vibration. The DVR motor is controlled by a computer which automatically adjusts the motor for optimal performance. With its solid cast iron construction, the Saturn is a very smooth and stable operator. The lathe’s smooth operation allows it to run faster and efficiently, cutting down sanding time.

Stationary lathe capabilities in a compact workspace
Incredible power in a compact working space, great for those who need all the workshop space they can get! The swivel head and articulated Outrigger Accessory means that turning even large bowls (29”) you are still turning in the same compact working envelope.

Exceptional Structural Strength
Solid cast iron throughout, trapezoidal, vibration dampening bed design, heavy duty Trimax triple bearing system.

Greater Capacity
16″/406mm inboard, 29″/737mm outboard (using optional Outrigger Accessory) 24″/610mm Between Centers, fully extendable beds – (optional accessory)) 20″/508mm per segment to go as long as you like. Cost-effective and easy to add capacity.

Plug n’Play
Easy to use, push-button electronic variable speed with forward and reverse.

Safety Sensing
Computer control instantly cuts power to the spindle if it senses a chisel dig in, or if the spindle lock is on when wanting to turn the spindle.

Power Saving
Smart computer-controlled motor only draws as much power as it needs for the project being worked on. The Striatech DVR motor can save up to 80% energy and emissions over conventional motors.

Low Maintenance
Industry grade electronics

• Quality Material – Solid Cast Iron throughout
• Strong 2MT spindles
• NOVA Smart Accessories – Common accessories between NOVA lathes
• 360° Swivel head
• Precision Machining
• Long Reach Toolslides
• Extendable Beds (Additional Accessory Item)
• Quick Action Cam Control – precisely adjust to your requirements
• Large Capacity
• Great Speed Range
• Large Range of Accessories
• Comprehensive Warranty
• Intelligent Control

Standard Equipment:

• Lathe
• Cast-Iron Stand
• 3″ Faceplate
• 12″ Tool Rest
• 2MT Live Tail Center
• 2MT Drive Center

Bowl Turning Capacity
406mm/16″ onboard
737mm/29″ outboard (Using optional outrigger accessory)

Between Centers
Standard 610mm/24″(Extendable to as long as you want in 508mm/20″ increments, using optional bed extension accessory)

10 Favorite Speeds
Enables user to easily program in their top 10 speeds which is selectable at the touch of a button

Power Output
1.75 HP (115V) / 2 HP (220 V)

Speed Range
100 – 5,000RPM

Spindle Thread

M33 x 3.5 RH (Europe and the UK) Tailstock 2MT Hollow

1-1/4″ x 8TPI RH (USA, Canada, Australasia & SOME older UK models, please enquire)

360° Swivel Head
360° Swivel and lock at any position, plus locating positions at 0, 22, 4 and 90°
High accuracy and easy swivel

Indexing
24 Division
