NOVA SuperNova2 Woodturning Scroll Chuck - Insert Type - 101182 Z NOW 104474

X
Product Code: BRI/101182_MST
Brand: NOVA Woodturning
Several options are available for this product.
Please Choose Below
NOVA Woodturning

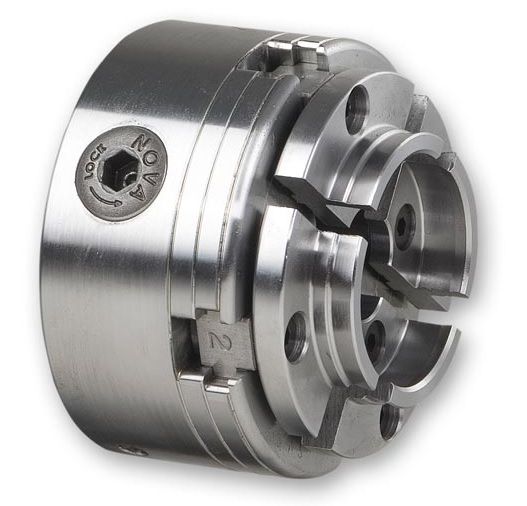

NOVA SuperNova2 Woodturning Scroll Chuck
Insert Type - No Insert Supplied

c/w 50mm Jaws, Woodworm Screw & Spanner
Ref 101182





THIS HAS BEEN REPLACED BY NEW ITEM 104474

A NEW LOWER PRICE WITH THREADED INSERT

AND FACEPLATE RING INCLUDED





Key Features

NOVA SuperNOVA2 Woodturning Chuck Insert Type

  • 100mm diameter, high tensile steel, nickel plated body
  • Self-centring, takes up to 500mm diameter swing
  • Ideal chuck for the ambitious woodturner
  • Auto-Stop feature prevents the jaws protruding from the body of the chuck
  • Duracon composite backing plate with 24 division indexing
  • Plate also keeps dust and debris away from chuck’s mechanism
  • Main body supplied with 50mm jaws, Woodworm screw, chuck key and tools
  • Wide range of adaptors available to fit onto a large variety of lathes

Fully assembled insert type chuck body and jaw slides supplied with 50mm/2" jaws, Woodworm Screw, fastenings and T-bar chuck key.

Insert / thread adaptor required - please see the insert options available



NOVA JS50N 50mm/2" Jaw Set

  • The standard NOVA jaw, a versatile all round accessory
  • Able to handle both bowl and spigot projects
  • Maximum grip, provided by the dovetail cross section of jaw
  • Expands into a recess between 51mm and 72mm diameter
  • Spigot range from 42mm to 64mm diameter
  • Square timber between 31mm and 52mm

NOVA 101214 Right Hand Safe Lock Woodworm Screw

  • A quick and easy method to mount small bowl blanks
  • Provides a secure mounting when turning the outside of bowls
  • Strong thin edged thread form cuts into wood for maximum holding power
  • Square shank ensures positive location into the chuck body
  • Available in right-hand and left-hand (for outboard turning) versions




In Detail

NOVA SuperNOVA2 Woodturning Chuck Insert TypeThe SuperNOVA2 main body comes with a set of 50mm jaws, a Woodworm screw,  a chuck key and two hex key wrenches for the fixing screws. A wide range of adaptors enables the SuperNOVA2 to fit onto a large variety of lathes. When ordering please specify which adaptor you need to suit your lathe. This 100mm diameter high tensile steel, nickel plated, self-centring chuck is the ideal chuck for the ambitious woodturner. It has an excellent safety feature in the Auto-Stop which prevents the jaws protruding from the body of the chuck. The rear of the chuck features a Duracon composite backing plate with 24 division indexing. The plate also keeps dust and debris away from the chuck’s mechanism.The 50mm jaw set has both external and internal dovetail profiles. It offers a rock solid grip inside a recess for gripping a spigot or the foot of a bowl. It will also grip square timber equally effectively.The NOVA Woodworm screw is a useful accessory for the initial turning of the back of a bowl blank. Mounting the blank only requires a 25mm deep, 8mm hole drilled in the centre of the blank. The Woodworm screw provides plenty of holding power and does away with the need for a separate faceplate.

NOVA JS50N Jaw Set. These jaws come asstandard on the  NOVA chuck. These versatile all round jaws get you started. They will handle both bowl and spigot projects. The 50mm Jaw expands into a recess between 51mm and 72mm diameter. When gripping a spigot the range is 42mm to 64mm diameter. These jaws will also hold square stock between 31mm and 52mm. Standard on both SuperNova2 and Nova G3 chucks (except SN2 companion).

The NOVA 101214 Right Hand Woodworm screw is a quick and easy method to mount small bowl blanks. It provides a secure mounting when turning the outside of bowls. The strong thin edged thread form cuts into wood for maximum holding power. The square shank ensures positive location into the chuck body.This thread gives an easy lead into the wood. The screw is 23mm long, with threads 2mm deep with a 7mm diameter core. All this makes for a screw with a very powerful gripping action. The recommended pilot-hole diameter is 8mm. The screw has considerable holding power and it is sometimes difficult to unscrew, so wax or oil the thread before mounting the wood. Available in right-hand(supplied) and left-hand (for outboard turning) versions.

NOVA Chuck Inserts. PLEASE SELECT THE INSERT YOU REQUIRE. The insert’s external thread fits into the back of the chuck. The internal thread matches that of your lathe’s headstock spindle. NOVA produces a wide range of inserts to fit many different, popular lathe models. The technical data PDF will help you choose the correct insert if you do not know for certain which one your lathe requires. The big advantage of this system is the flexibility it brings. You may be lucky enough to have more than one lathe in your workshop. If the lathes have different spindle sizes then the purchase of a second insert, means you can use the same chuck on both lathes. You won’t need to own two separate chucks. Similarly, if one day you change or upgrade your lathe, you only require a suitable insert to adapt your existing NOVA chuck.NOVA also produces directly threaded chuck bodies. You cannot alter them to an insert type body or another thread size once threaded, so it pays to be sure that your lathe thread size is not covered by the insert/adaptor first.



Specifications

Diameter                    100mm
Model SN2
Insert Thread Size SELECT YOUR INSERT REQUIRED
Insert Required YES (not supplied)
Ref 101182






.
