Nova 6017 75mm / 3" Long Nosed Chuck Jaw Set for Woodturning Scroll Chuck

NOVA 6017 - 75mm / 3" Long Nosed Chuck Jaw Set
Woodturning Scroll Chuck Jaws
Ref: 6017

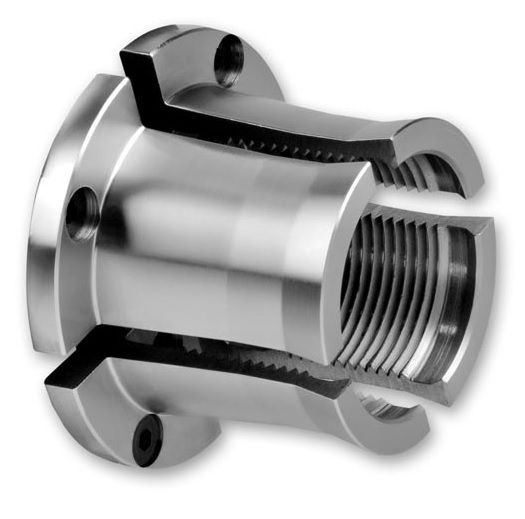

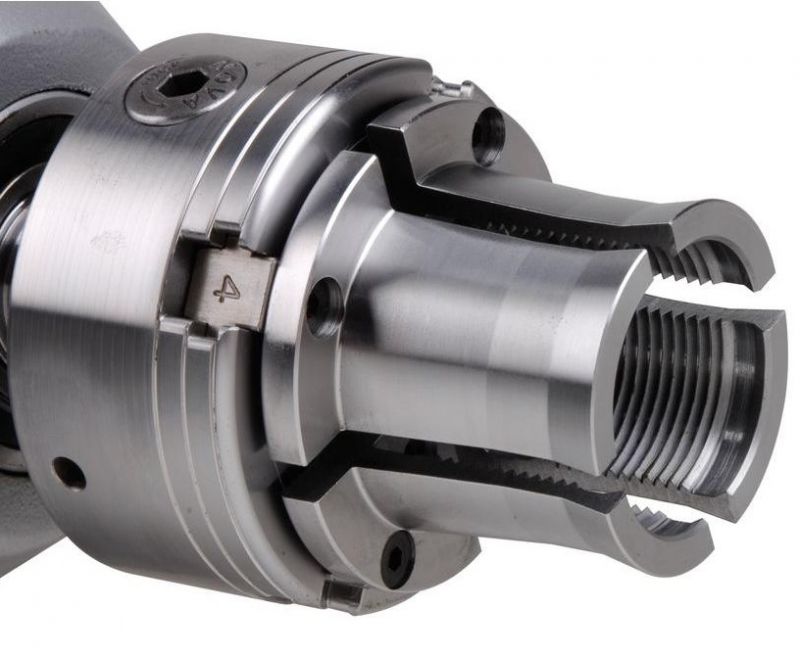

JAWS ONLY chuck shown for illustration

• Dovetail grip around the top for footed bowls etc
• Deep internal PowerGrip for rock solid grip on a spigot
• Expands into a recess between 54mm and 73mm diameter
• Spigot range from 40mm to 60mm diameter
• Square timber between 29mm and 50mm

These have tremendous holding power both externally and internally. The jaws are very versatile and ideal for green woodturning. Internally they feature a dovetail grip around the top for holding footed bowls and other footed workpieces. In the centre is NOVA’s PowerGrip offering a rock solid grip when holding spigots. This unique long nosed jaws set has a 50mm rise above their mounting base resulting in a very long reach deep inside of bowls. The jaw expands into a recess between 54mm and 73mm diameter. When gripping a spigot the range is 40mm to 60mm diameter. These jaws will also hold square stock between 29mm and 50mm.

Suits SuperNova2 ONLY not suitable for Nova G3 Chucks

If you are unsure if these jaws fit your chuck please contact us and we will be happy to help

THESE WILL NOT FIT ANY OF THE AXMINSTER RANGE OF CHUCKS

• Expands Internal: 54 to 73 mm
• Expands External: 40 to 60 mm
• Square Section: 29 to 50 mm
• Jaw Type: 6017
• WARRANTY: 10 Year Full Replacement from Manufacture Defects
