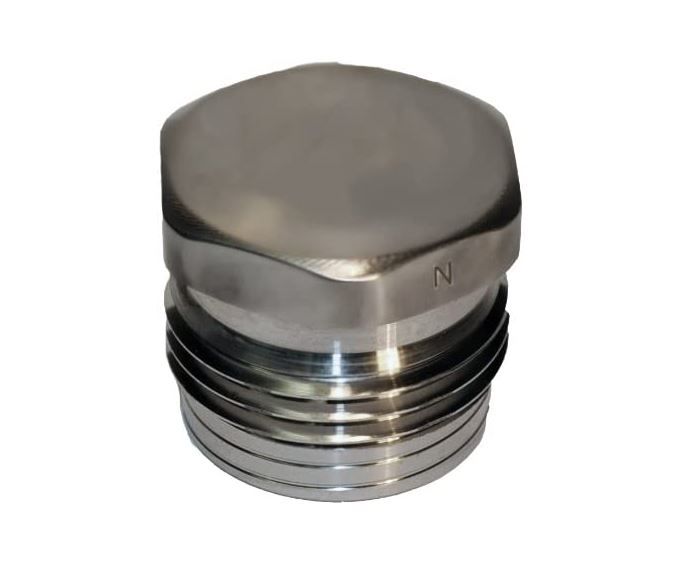

Nova Chuck Insert Thread Adaptor Blank Unthreaded - INNS
Nova Chuck Insert Thread Adaptor for Insert Based Woodturning Scroll Chuck
Blank Unthreaded
Ref: INNS
The larger male thread that fits in the rear of the chuck is M38 x 3.0mm and the smaller female thread that fits the headstock of the lathe is Blank - Unthreaded
These inserts DO NOT fit M33 or other Direct Threaded Chucks.
These inserts are only designed to fit INSERT BASED chucks and will fit the following chucks
-
NOVA G3 Insert Based Chucks
-
NOVA SuperNova 2 Insert Based Chucks
-
Robert Sorby Patriot Insert Based Chucks
The insert’s external thread fits into the back of the chuck. The internal thread matches that of your lathe’s headstock spindle. NOVA produces a wide range of inserts to fit many different, popular lathe models. The technical data PDF will help you choose the correct insert if you do not know for certain which one your lathe requires. The big advantage of this system is the flexibility it brings. You may be lucky enough to have more than one lathe in your workshop. If the lathes have different spindle sizes then the purchase of a second insert, means you can use the same chuck on both lathes. You won’t need to own two separate chucks. Similarly, if one day you change or upgrade your lathe, you only require a suitable insert to adapt your existing NOVA chuck.NOVA also produces directly threaded chuck bodies. You cannot alter them to an insert type body or another thread size once threaded, so it pays to be sure that your lathe thread size is not covered by the insert/adaptor first.
- Adapts any insert type NOVA chuck to almost any lathe spindle at a very low cost
- Easy and inexpensive insert/adaptor system on all NOVA chucks
- Simply screws into the back of your NOVA chucks
- Ensures maximum adaptability and flexibility
- Changing your lathe only requires change of insert
Indentifying the Headstock Spindle Thread Size of your Lathe
| Product Code | Description | Size | Thread Type |
| I2NS | Nova Chuck Thread Adaptor | M20 x 2 | Right Hand |
| I3NS | Nova Chuck Thread Adaptor | M20 x 1.5 | Right Hand |
| I6NS | Nova Chuck Thread Adaptor | 3/4" | Plain Bore Unthreaded |
| I7NS | Nova Chuck Thread Adaptor | 1 1/8" x 8 Tpi | UNC - Right Hand |
| I8NS | Nova Chuck Thread Adaptor | 7/8" x 12 Tpi | UNF - Left Hand |
| I9NS | Nova Chuck Thread Adaptor | 3/4" x 16 Tpi | Right Hand |
| IANS | Nova Chuck Thread Adaptor | 3/4" x 14 Tpi | BSP - Right Hand |
| IBNS | Nova Chuck Thread Adaptor | 3/4" x 14 Tpi | BSP - Left Hand |
| ICNS | Nova Chuck Thread Adaptor | 1" x 10 Tpi | Right Hand |
| IDNS | Nova Chuck Thread Adaptor | 1" x 8 Tpi | Right Hand |
| IENS | Nova Chuck Thread Adaptor | 1" x 12 Tpi | UNF |
| IHNS | Nova Chuck Thread Adaptor | 3/4" x 10 Tpi | UNC |
| IINS | Nova Chuck Thread Adaptor | M24 x 3 | Right Hand |
| IJNS | Nova Chuck Thread Adaptor | 1 1/8" x 12 Tpi | Right Hand |
| IKNS | Nova Chuck Thread Adaptor | M18 x 2.5 | Right Hand |
| ILNS | Nova Chuck Thread Adaptor | 1 1/4" x 8 Tpi | Right Hand |
| IMNS | Nova Chuck Thread Adaptor | 1" x 10 Tpi | Left Hand |
| INNS | Nova Chuck Thread Adaptor | Blank Adaptor | Unthreaded |
| IONS | Nova Chuck Thread Adaptor | 1 1/8" x 7 Tpi | Right Hand |
| IQNS | Nova Chuck Thread Adaptor | M30 x 3.5 | Right Hand |
| ISNS | Nova Chuck Thread Adaptor | 5/8" | Plain Bore Unthreaded |
| ITNS | Nova Chuck Thread Adaptor | 1" x 8 Tpi | RH & LH Dual Thread |
| IUNS | Nova Chuck Thread Adaptor | 1 1/8" x 12 Tpi | UNF Right Hand |
| IVNS | Nova Chuck Thread Adaptor | 7/8" x 14 Tpi | NF Right Hand |
| IWNS | Nova Chuck Thread Adaptor | M25 x 2 | Right Hand |
| IXNS | Nova Chuck Thread Adaptor | 1" x 8 Tpi | Reversible |
| IYNS | Nova Chuck Thread Adaptor | 1 1/4" x 8 Tpi | UNS - Right Hand |
The product you are currently viewing is highlighted in red.
