Nova JSCOLE Cole Jaws Bowl Remounting Jaw Set for Woodturning Scroll Chuck

NOVA JSCOLE - Cole Jaw Chuck Jaw Set
Woodturning Scroll Chuck Jaws
Ref: JSCOLE

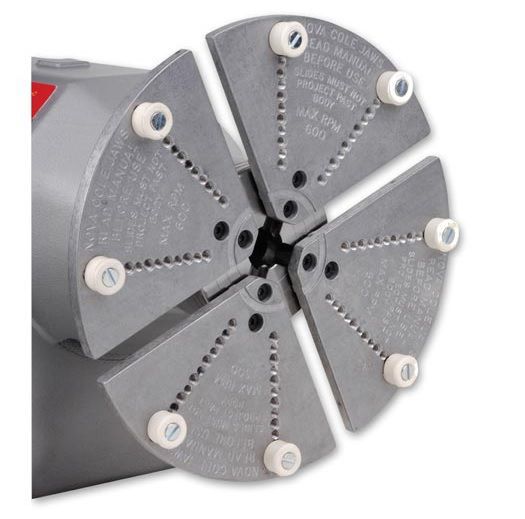

JAWS ONLY chuck shown for illustration

• Designed for re-chucking bowls to remove or alter a foot or recess
• Allows for adding decoration or re-shaping the bottom of the bowl
• Standard Cole jaws are suitable for lathes with minimum 300mm swing diameter
• Mini Cole jaws are suitable for lathes with a minimum 200mm swing diameter
• Possibility to add customised wooden jaw segments

The NOVA Cole Jaws are versatile jaw sets that allow the woodturner to re-chuck bowls in order to remove a foot or recess formed when initially turning the object. Once reversed the turner is able to add decoration or to re-shape the bottom of the bowl. Using either of these jaws gives the opportunity to produce work with a smooth even curvature both inside and out. Standard Cole jaws are suitable for lathes with a minimum 300mm swing diameter. Mini Cole jaws are suitable for lathes with a minimum 200mm swing diameter. Cole jaws have many advantages over vacuum chucking to achieve the same end. It is possible to further extend their usefulness by adding customised wooden jaw segments.The standard Cole jaw has a maximum external grip 236mm and internal 280mm, whilst the Mini Cole will grip externally to a maximum of 170mm and internally 215mm.  The Mini Cole jaws are best suited to the CometII lathe.

Suits both SuperNova2 and Nova G3 chucks, Robert Sorby Patriot

If you are unsure if these jaws fit your chuck please contact us and we will be happy to help

THESE WILL NOT FIT ANY OF THE AXMINSTER RANGE OF CHUCKS

• Max Lathe Swing Diameter:  300 mm
• Expands External Grip:  280 mm
• Expands Internal Grip:  215 mm
• Jaw Type: JS Cole
• WARRANTY: 10 Year Full Replacement from Manufacture Defects
