Nova SuperNova2 Woodturning Scroll Chuck Package SN2 - M33 x 3.5mm direct threaded chuck - (Ref: 23253)

NOVA SuperNova2 Woodturning Scroll Chuck Package SN2 Direct Threaded Type - M33 x 3.5mm c/w 50mm Jaws, Pin Chuck Jaws, Woodworm Screw & Chuck Key - (Ref: 23253)

NOVA SuperNOVA2 Woodturning Chuck Direct Threaded Type Type - ref 23253

• 100mm diameter, high tensile steel, nickel plated body
• Self-centring, takes up to 500mm diameter swing
• Ideal chuck for the ambitious woodturner
• Auto-Stop feature prevents the jaws protruding from the body of the chuck
• Duracon composite backing plate with 24 division indexing
• Plate also keeps dust and debris away from chuck’s mechanism

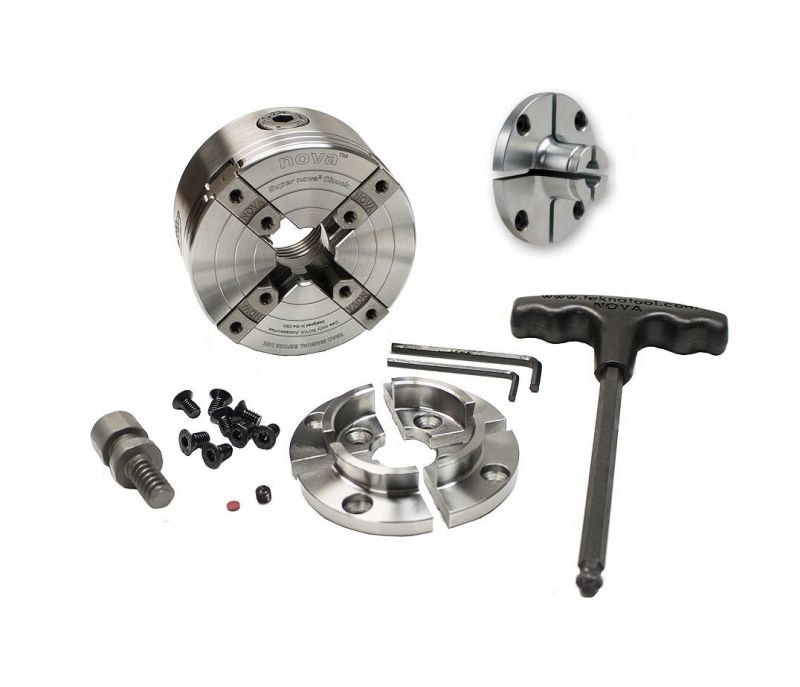

• Main body supplied with 50mm jaws, Woodworm screw, chuck key and tools
• Fits M33 x 3.5 headstock thread direct with no need for insert or adapter

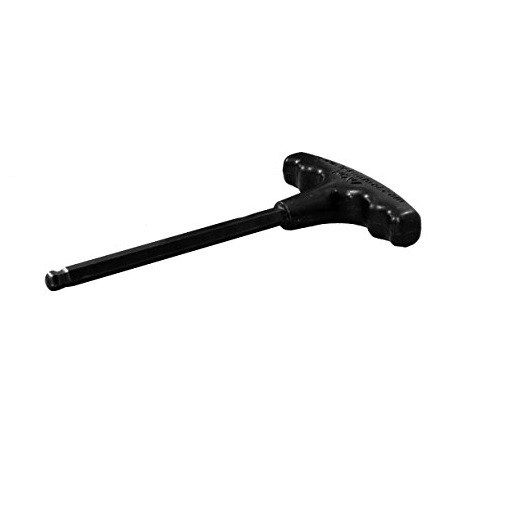

• Fully assembled insert type chuck body and jaw slides supplied with 50mm/2" jaws, woodworm screw, fastenings, T-bar chuck key and insert spanner.

No Insert / thread adaptor required - fits direct onto an M33 x 3.5mm Headstock Thread

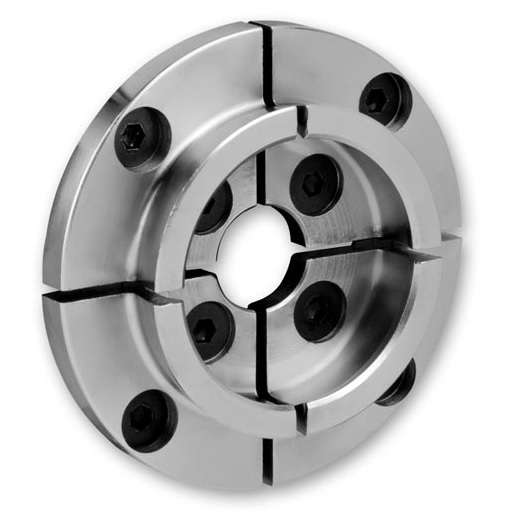

NOVA JS50N 50mm/2" Jaw Set

• The standard NOVA jaw, a versatile all round accessory
• Able to handle both bowl and spigot projects
• Maximum grip, provided by the dovetail cross section of jaw
• Expands into a recess between 51mm and 72mm diameter
• Spigot range from 42mm to 64mm diameter
• Square timber between 31mm and 52mm

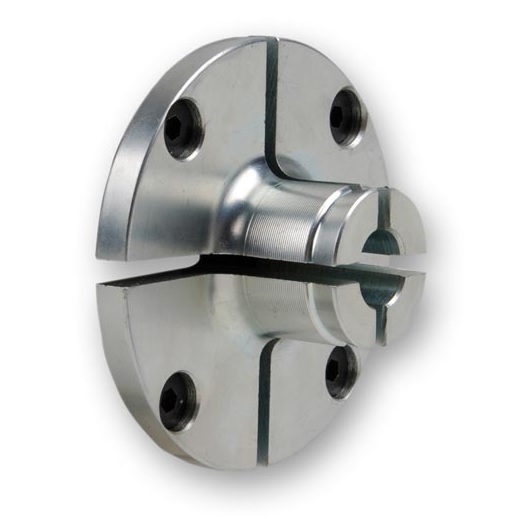

NOVA JSPIN 25mm/1" Pin Chuck Jaw Set

• Useful jaw when turning free form edge bowls
• 25mm extended jaws act like a pin chuck expanding into a pre-bored hole
• Longer stand-out of the jaws allow for a very powerful spigot grip
• Expands into a recess between 26mm and 46mm diameter
• Spigot range from 10mm to 31mm diameter
• Square timber between 7mm and 38mm

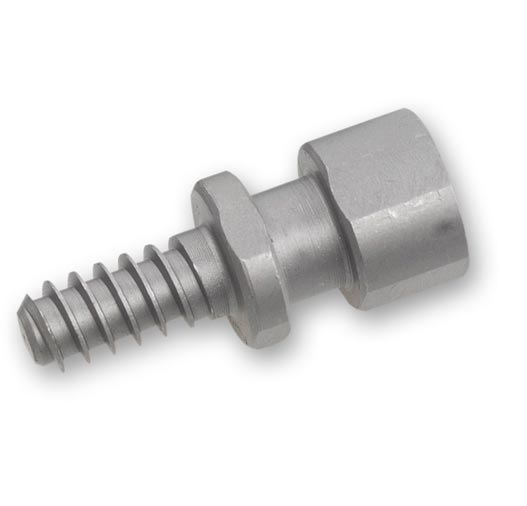

NOVA 101214 Right Hand Safe Lock Woodworm Screw

• A quick and easy method to mount small bowl blanks
• Provides a secure mounting when turning the outside of bowls
• Strong thin edged thread form cuts into wood for maximum holding power
• Square shank ensures positive location into the chuck body
• Available in right-hand and left-hand (for outboard turning) versions

In Detail

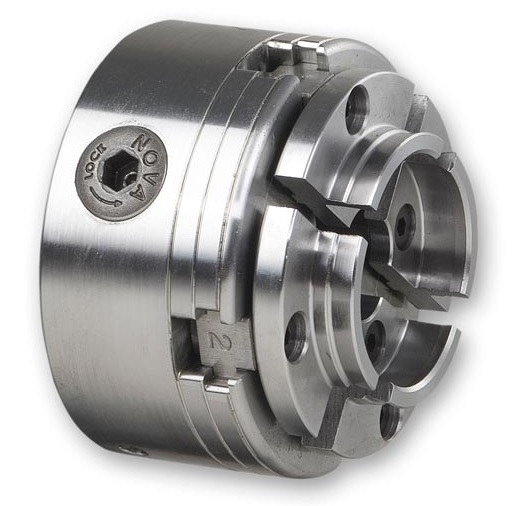

NOVA SuperNOVA2 Woodturning Chuck The SuperNOVA2 main body comes with a set of 50mm jaws, a Woodworm screw,  a chuck key and two hex key wrenches for the fixing screws. This 100mm diameter high tensile steel, nickel plated, self-centring chuck is the ideal chuck for the ambitious woodturner. It has an excellent safety feature in the Auto-Stop which prevents the jaws protruding from the body of the chuck. The rear of the chuck features a Duracon composite backing plate with 24 division indexing. The plate also keeps dust and debris away from the chuck’s mechanism.The 50mm jaw set has both external and internal dovetail profiles. It offers a rock solid grip inside a recess for gripping a spigot or the foot of a bowl. It will also grip square timber equally effectively.The NOVA Woodworm screw is a useful accessory for the initial turning of the back of a bowl blank. Mounting the blank only requires a 25mm deep, 8mm hole drilled in the centre of the blank. The Woodworm screw provides plenty of holding power and does away with the need for a separate faceplate.

NOVA JS50N Jaw Set. These jaws come asstandard on the  NOVA chuck. These versatile all round jaws get you started. They will handle both bowl and spigot projects. The 50mm Jaw expands into a recess between 51mm and 72mm diameter. When gripping a spigot the range is 42mm to 64mm diameter. These jaws will also hold square stock between 31mm and 52mm. Standard on both SuperNova2 and Nova G3 chucks (except SN2 companion chuck).

NOVA JSPIN Pin Chuck Accessory Jaw Set. These special 25mm extended jaws act like a pin chuck by expanding into a pre-bored hole. This is a useful jaw when turning free form edge bowls. The jaw will lock into a simple bored hole; the advantage over a standard pin chuck is that you don't have to bore to an exact size. Simply expanding the jaw means turning can commence without further delay. The longer stand-out of the jaws allows for a very powerful spigot grip for smaller work such as lace bobbins and delicate pots etc. The jaws also have a dovetail to mount small bowls (up to 150mm diameter). The jaw expands into a recess between 26mm and 46mm diameter. When gripping a spigot the range is 10mm to 31mm diameter. These jaws will also hold square stock between 7mm and 38mm.

The NOVA 10006 Right Hand Woodworm Screw is a quick and easy method to mount small bowl blanks. It provides a secure mounting when turning the outside of bowls. The strong thin edged thread form cuts into wood for maximum holding power. The square shank ensures positive location into the chuck body.This thread gives an easy lead into the wood. The screw is 23mm long, with threads 2mm deep with a 7mm diameter core. All this makes for a screw with a very powerful gripping action. The recommended pilot-hole diameter is 8mm. The screw has considerable holding power and it is sometimes difficult to unscrew, so wax or oil the thread before mounting the wood. Available in right-hand(supplied) and left-hand (for outboard turning) versions.

• Diameter: 100mm
• Model: SN2
• Thread Size: M33 x 3.5mm Direct Thread
• Insert Required: NO (not required)
• Ref: 23253
