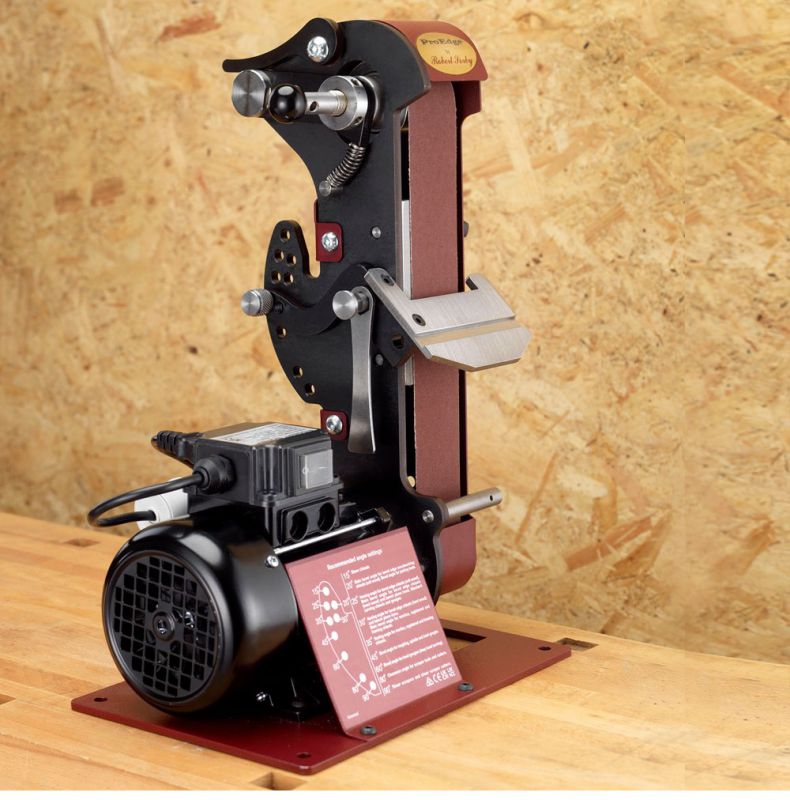

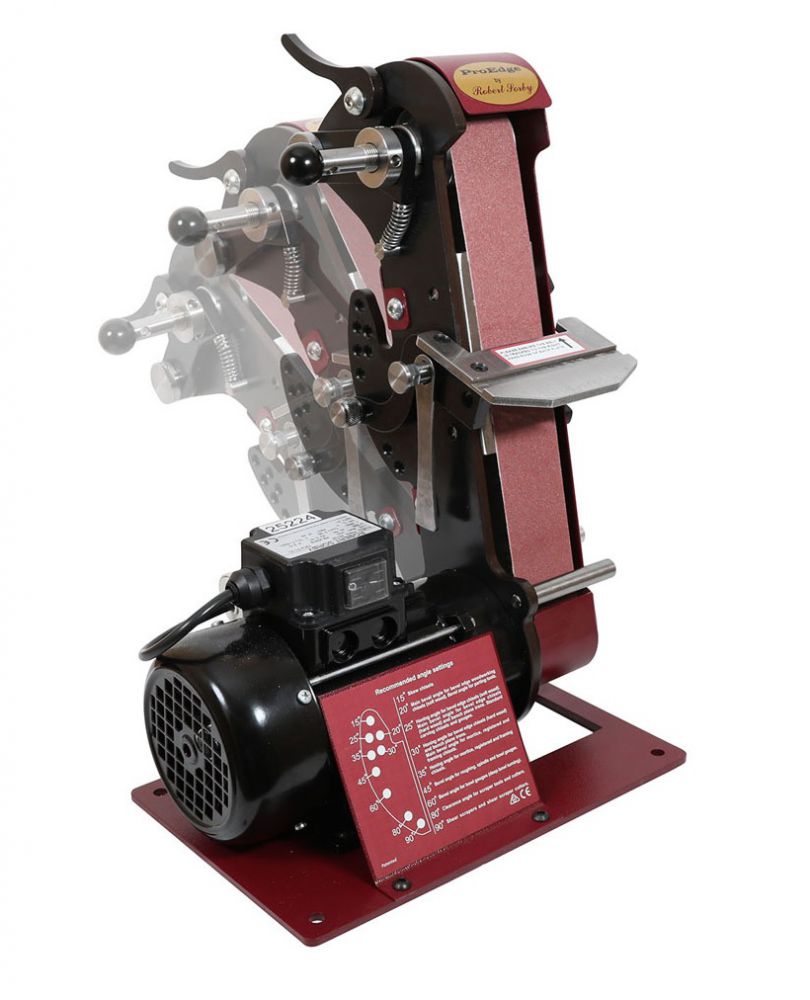

Robert Sorby DELUXE PROEDGE SHARPENING SYSTEM - PED01A

Robert Sorby ProEdge Deluxe
Sharpening System PED01A

The Robert Sorby ProEdge offers effortlessly repeatable sharpening every time. Hugely versatile, this industrial strength machine is built to last and delivers astounding ‘factory finish’ results without fail. Perhaps the most simple to use sharpener on the market, this system replicates the industry standard of achieving a flat grind using the preferred method of belts over traditional grinding wheels.

Sharpens bench, framing, carving and turning chisels, drill bits, plane irons, knifes and garden tools.

Sharpens with belts rather than abrasive wheels.

• Cuts steel rather than rubbing it off
• Change belts in seconds
• Flat bevel rather than hollow grind
• Wide range of grits and abrasives
• Sharpens all exotic alloys and carbide
• Belt sharpening lowers risk of overheating

Patented angle setter guarantees repeatability

• Sharpen at exactly the same angle each time
• Nine factory indexed settings provide a guide for all types of tool
• Can be locked between indexes for custom settings

Exceptional Robert Sorby construction

• Built from solid steel
• Pivots for operator comfort
• Inexpensive to run
• Small workbench footprint
• Backed by Robert Sorby Warranty

A wide range of belts and accessories to suit all sharpening needs are available.

• ProEdge System Machine
• 120 grit Aluminium Oxide Belt

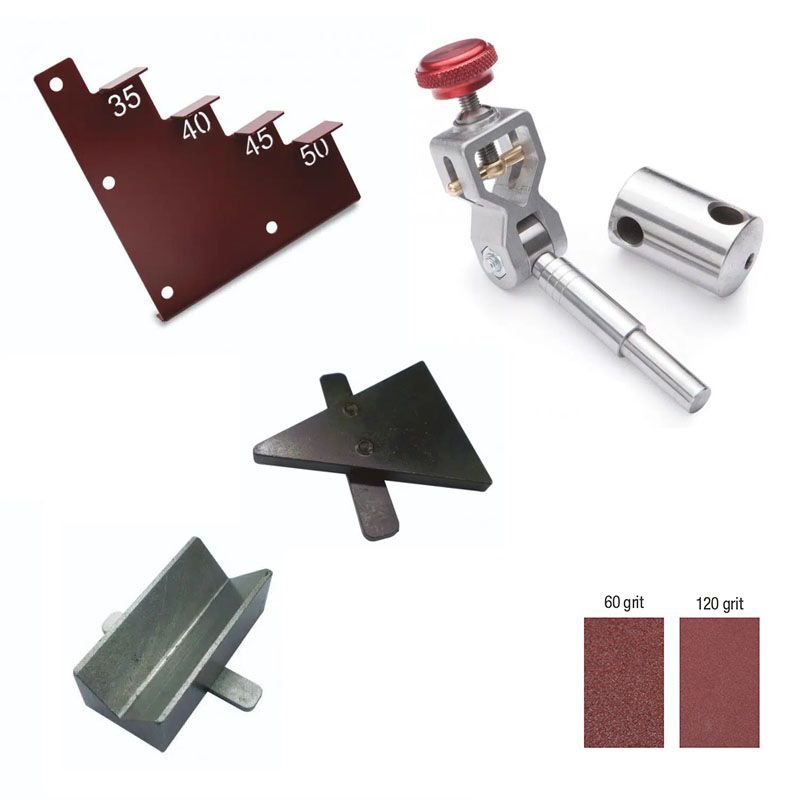

And in addition, the folllowing are included in the PED01 Deluxe ProEdge Kit and these accessories also make up this Ugrade Kit (PEWTKIT):

• Proset – helps achieve the exact bevel angle
• Fingernail Profile Kit – ideal for shaping a perfect fingernail profile on bowl and spindle gouges
• Skew Jig – for accurate sharpening of skew chisels
• Standard Gouge Jig – allows easy sharpening of all standard ground woodturning gouges
• Ceramic Belt 60 grit (x1)
• Ceramic Belt 120 grit (x1)

• ProSet (WPROSET): Helps you achieve the exact bevel angle on any fingernail or long grind gouge when used in cunjunction with the fingernail profiling arm.

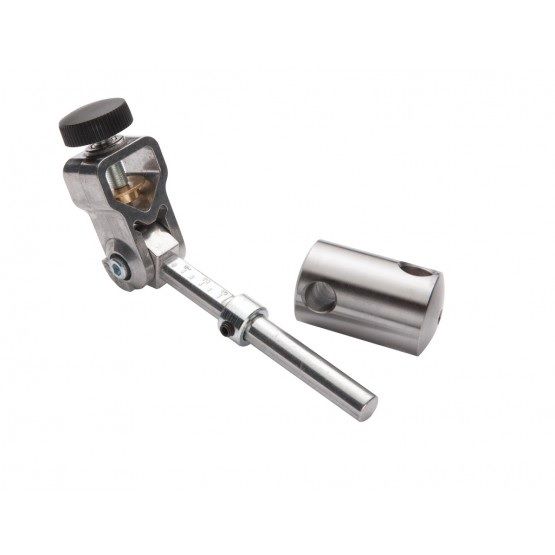

• Fingernail Profile Kit (WPEFPKIT): The fingernail profiling kit is ideal for shaping a perfect fingernail profile on bowl and spindle gouges.

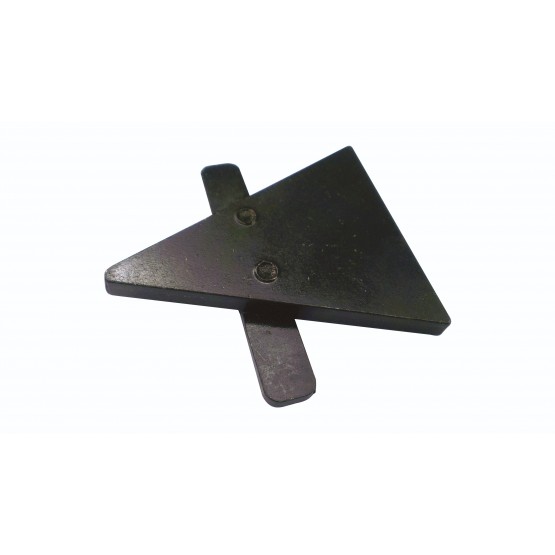

• Skew Jig (WPESKEW): For accurate sharpening of woodturning skew chisels.

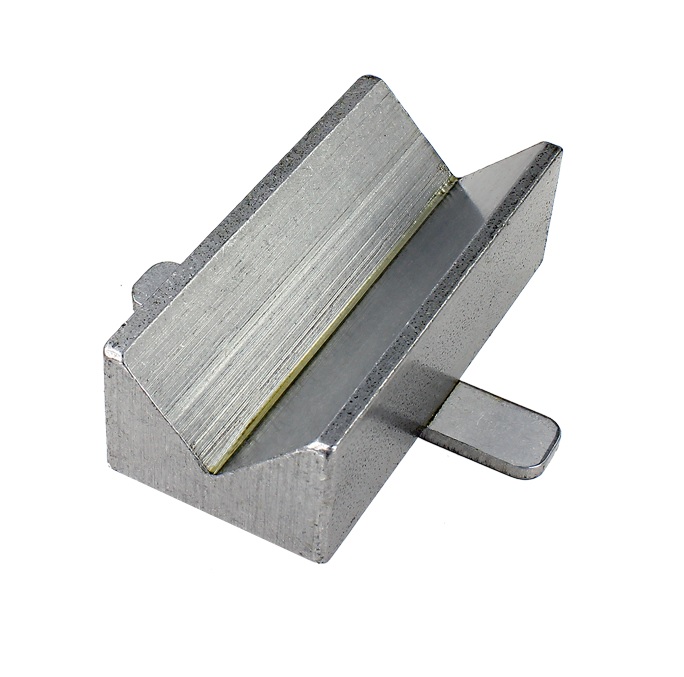

• Standard Gouge Jig (WPEVB): Allows easy sharpening of all standard ground woodturning gouges.
• Ceramic Belts (WPE60C and WPE120C): This hardwearing material is a great choice for profiling and re-profiling damaged tools.
• We have selected these belts because they use an even cut rate and give a vastly prolonged belt life over standard abrasive belts. This produces knives and tools with consistent honed bevels and incredibly sharp cutting edges. As with all abrasives, the belts should always be used in the order of grit from the coarsest to the finest. This is to maximise the efficiency of each belt and to achieve the best possible results.

• Motor - 1/2hp
• Surface Speed - 1440 ft (440m) per minute

Guide to angles for the angles setter and recommended tools:

• 15 degrees - Skew chisels.
• 20 degrees - Main bevel angle for bevel edge woodworking chisels (soft wood). Bevel angle for parting tools.
• 25 degrees - Honing angle for bevel edge chisels (soft wood). Main bevel angle for bevel edge chisels (hard wood) and bench plane irons. Standard carving chisels and gouges.
• 30 degrees - Honing angle for bevel edge chisels (hard wood) and bench plane irons. Main bevel angle for mortice, registered and framing chisels.
• 35 degrees - Honing angle for mortice, registered and framing chisels.
• 45 degrees - Bevel angle for roughing, spindle and bowl gouges.
• 60 degrees - Bevel angle for bowl gouges (deep bowl turning).
• 80 degrees - Clearance angle for scraper tools and cutters.
• 90 degrees - Shear scrapers and shear scraper cutters.

The product you are currently viewing is highlighted in red.

Click here to see the full range of options for this product

Robert Sorby ProEdge Sharpening System Instruction Manual
