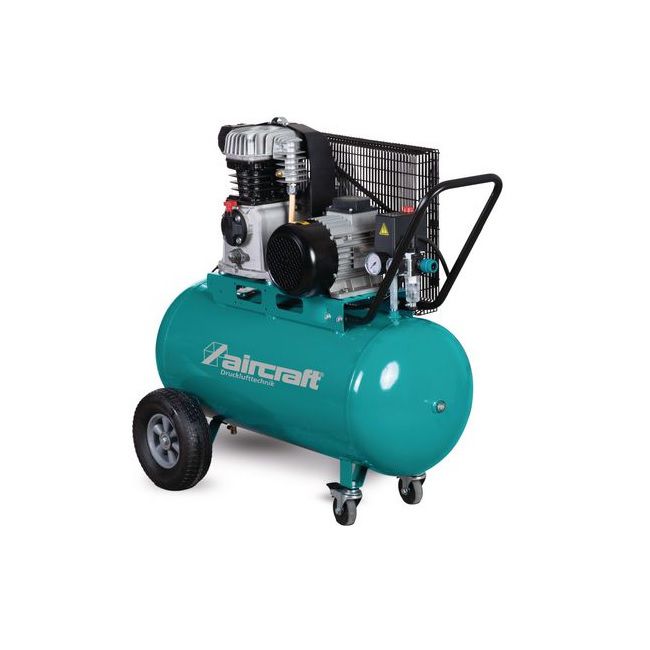

Sturmer Aircraft AIRSTAR 863/200 Piston Compressor with Belt Drive 10 Bar 5.5kW 415v
Product Code: STU/2007832
Brand: Stuermer
Stock Due Soon
Please Call For Update
Please Call For Update
£2,279.99 Inc. VAT
£1,899.99 Exc. VAT
Sturmer Aircraft
AIRSTAR 863/200 Piston Compressor with Belt Drive 10 Bar 5.5kW 415v
ref: 2007832
Key Features
- Two-cylinder high-performance units made of gray cast iron for a long service life.
- Large fan wheel and a cooling air baffle on the cylinder for optimal cooling of the compressor
- Quality electric motor with high starting torque
- Electric motor equipped with motor protection switch
- Aftercooler with cooling fins ensures a low tank inlet temperature and thus less moisture in the compressed air
- Sturdy metal belt guard
- Start-up capacitor and start-up relief valve ensure easy start-up on 230 volt models
- Container pressure gauge "Made in Germany
- Filter pressure regulator with pressure gauge "Made in Germany" for regulated compressed air cleaned of condensate, dirt and oil
- Ten-year warranty against rust-through on powder-coated compressed air reservoir
- Includes high quality composite safety coupling and high quality CONDOR pressure switch
- Large ergonomic handle
- Stable steering chassis with parking brake in combination with large, puncture-proof PU wheels
Technical details
Compressed air tank
- Maximum pressure: 10 bar
- Pressure vessel capacity: 200 l
- Tank vertical / horizontal: Horizontal
Compressor
- Compressor system: HOS
- Oil-free / oil-lubricated: Oil lubricated
- Suction capacity approx.: 850 l/min
- Filling capacity approx.: 680 l/min
- Explanation filling capacity: at 6 bar working pressure
- Number of cylinders: 2
- Number of compressor stages: 2
- Piston stroke: 78 mm
- Diameter of piston: 105 – 58 mm
Dimensions and weights
- Length approx.: 1440 mm
- Width/depth approx.: 470 mm
- Height approx.: 1220 mm
- Weight approx.: 153 kg
Electrical Data
- Drive motor: electric motor
- Delivery power: 5.5 kW
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Noise emission
- Sound power level Lw: 95 dB(A)
- Explanation sound power level Lw: Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
- Sound pressure level Lp: 79 dB(A)
- VPE:1
