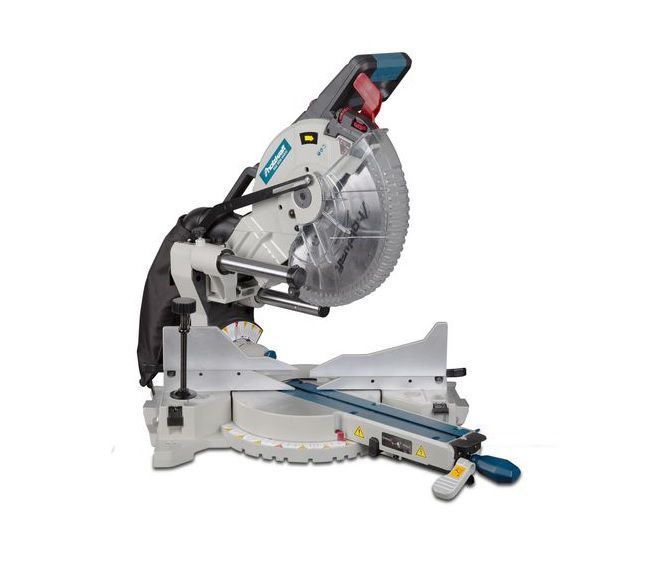

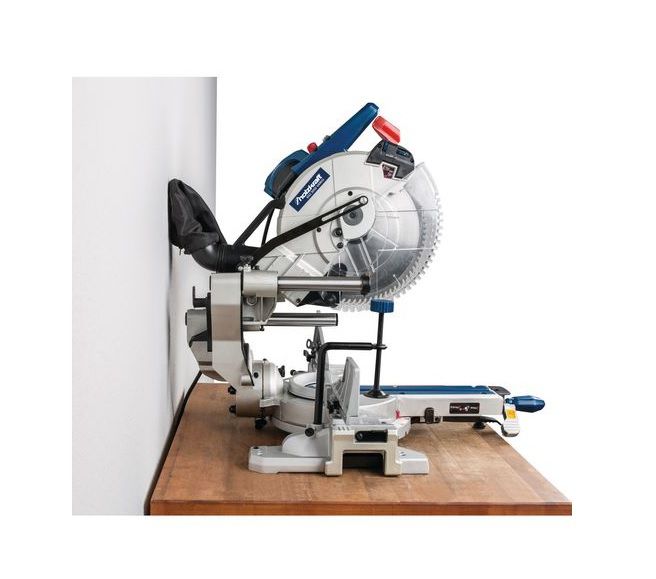

Sturmer Holzkraft KGZ 3050 Vario Sliding Crosscut Mitre Saw 305mm 1600W 230v
Product Code: STU/5701315
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£659.99 Inc. VAT
£549.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Holzkraft
KGZ 3050 Vario Sliding Crosscut Mitre Saw 305mm 1600W 230v
ref: 5701315
Key Features

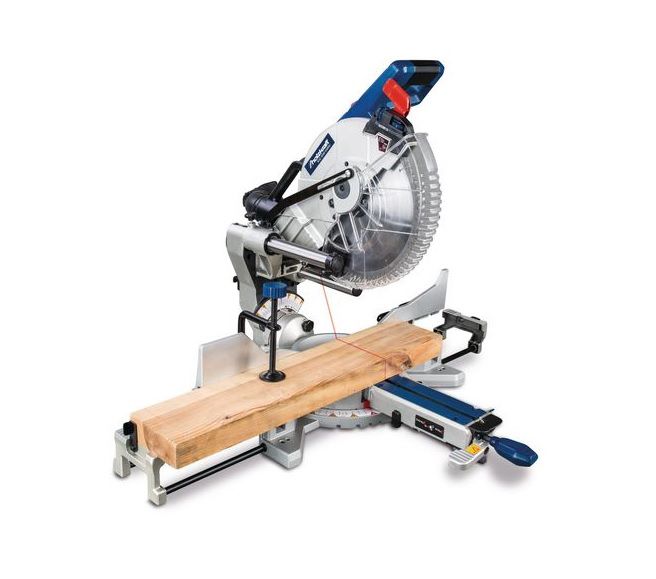

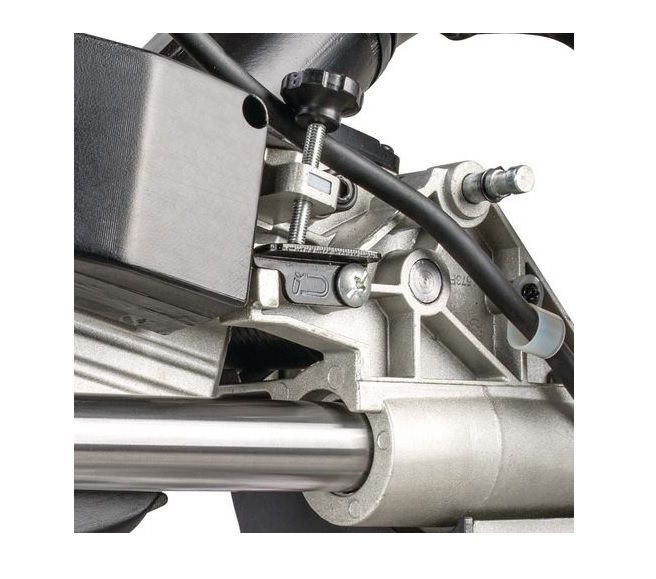

- KGZ 3050 Vario 305mm Fixed rail sliding crosscut mitre saw + variable speed for multi app + double bevel +convenient setting of mitre & head tilt from front of mc + locking device for depth of cut + laser + 1600W soft start motor 230v
- Equipped with soft start
- With stepless speed
- Base plate and turntable made of die-cast aluminum: at the same time compact, robust and easy to transport
- Grid positions in the turntable
- With 31.6 ° grid position especially for cutting ceiling trim

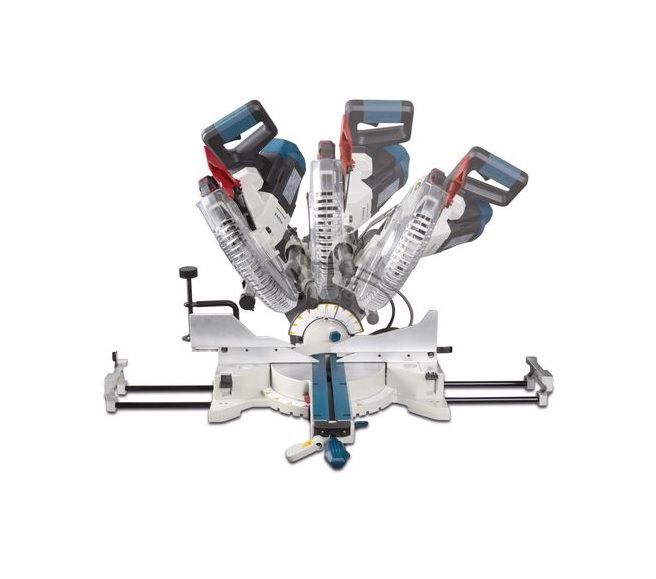

- Standard with double pitch and miter

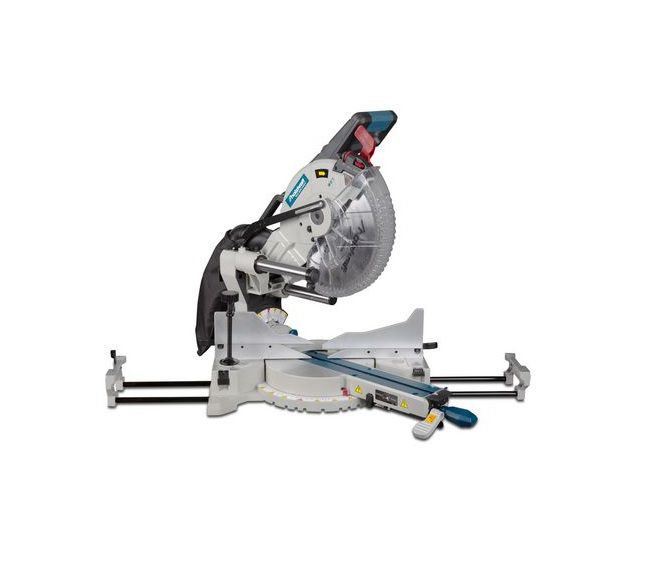

- Two-sided extension of the workpiece support with hinged stops for repetitive work
- Standard with chip collecting bag
- Easy and fast saw blade change

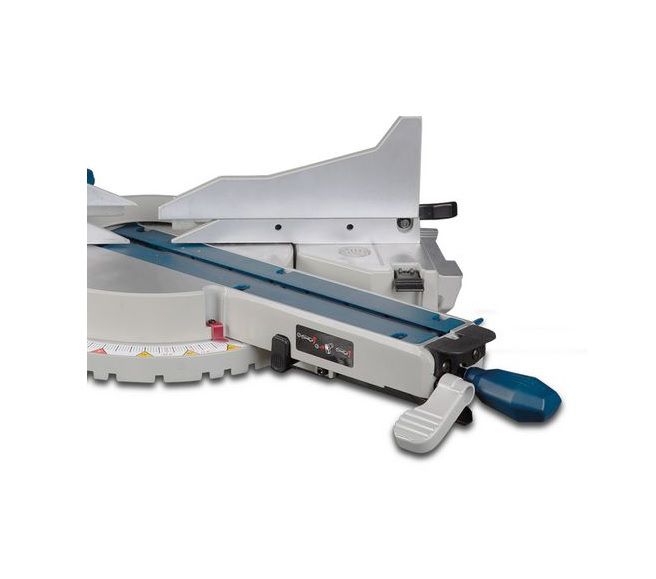

- Angle adjustment finely adjustable

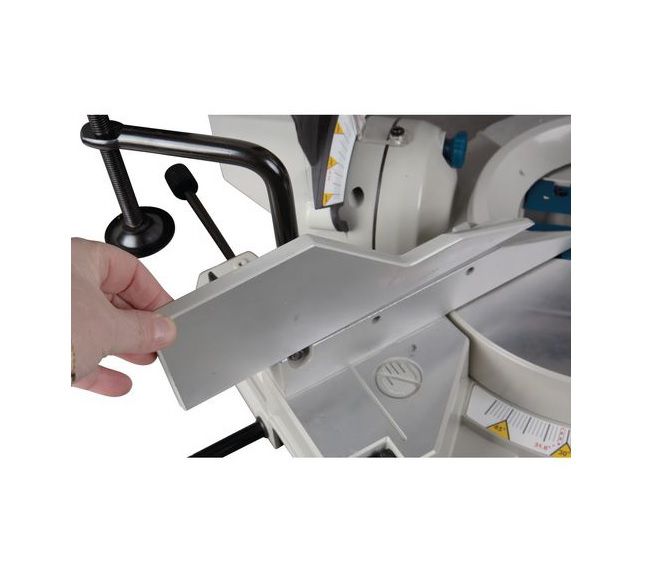

- Adjustable and high workpiece stops made of aluminum
- Screw clamp for secure workpiece locking
- Also suitable for cutting cornice profiles
- Includes material clamp, chip collection bag, tools, blade 305 x 2.6 x 1.8 x 30mm Z60
Technical details
- Saw band speed: 2000 – 4000 min¯¹
- Saw blade diameter: 305 mm
- Max. bevel angle range left: 47 °
- Max. bevel angle range right: 47 °
- Max. mitre left: 50 °
- Max. mitre right: 50 °
- VPE: 1
Cutting capacity
- 0° inclination / 0° mitre: 100 x 305 mm
- -45° inclination / 0° mitre: 64 x 305 mm
- +45° inclination / 0° mitre: 44 x 305 mm
- 0° inclination / -45° mitre: 100 x 215 mm
- 0° inclination / +45° mitre: 100 x 215 mm
Dimensions and weights
- Max. length: 1055 mm
- Length approx.: 595 mm
- Width/depth approx.: 800 mm
- Height approx.: 710 mm
- Weight approx.: 23 kg
Electrical Data
- Absorbed power drive motor: 1.6 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
