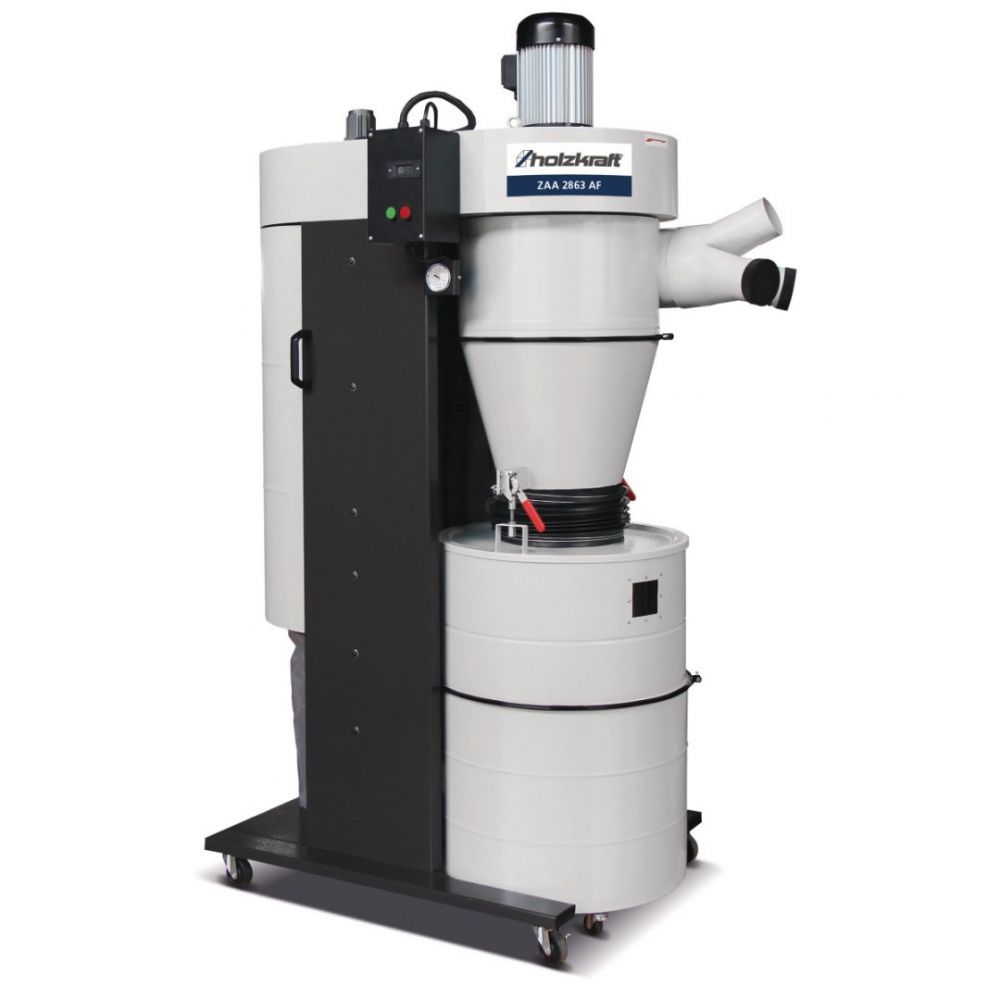

Sturmer Holzkraft ZAA 2863 AF Cyclone Extractor with Fine Filter 415v

Sturmer Holzkraft

ZAA 2863 AF Cyclone Extractor with Fine Filter 415v

ref: 5128928

• ZAA 2863 AF Clean exhaust cyclone extractor + twin stage fine dust filter system + automatic filter cleaning system + triple extraction ports + 3000W motor 415v
• Effective cyclone technology with 2-stage filtration
• Separation of larger impurities in the waste container and fine dust in the cartridge filter
• Sight glass for checking the fill level in the container
• Automatic filter cleaning for consistently high extraction performance
• Timer and on/off function possible via remote control
• Flexible maneuvering thanks to castors on the extraction unit and filling container
• Easy emptying of the mobile filling container thanks to quick-release fastener
• Suitable for multiple machines thanks to adapter for three suction nozzles
• Extremely quiet

Dimensions and weights

• Chip collection volume: 240 l
• Extraction duct inlet outside nominal width: 1 x 200, 3 x 100 mm
• Length approx.: 1343 mm
• Width/depth approx.: 900 mm
• Height approx.: 2170 mm
• Weight approx.: 178 kg

Electrical Data

• Motor input: 3,0 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Filter

• Filter surface area: 4.32 m²

Noise emission

• Max. sound pressure level: 78 dB(A)

Volume flow

• Rated volume flow: 1760 m³/h
