Sturmer Holzstar ADH 200 AS Bench Top Planer Thicknesser 205mm x 120mm 1500W 230v
Product Code: STU/5905200
Brand: Stuermer
Low Stock - Please Call For Availability
£419.99 Inc. VAT
£349.99 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Sturmer Holzstar

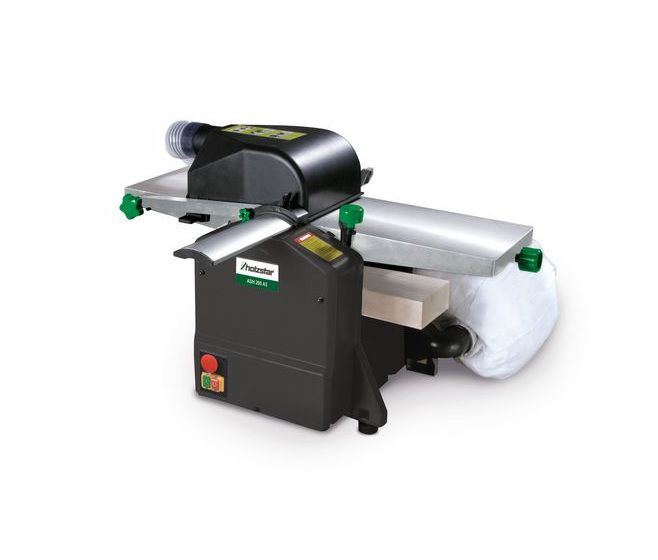

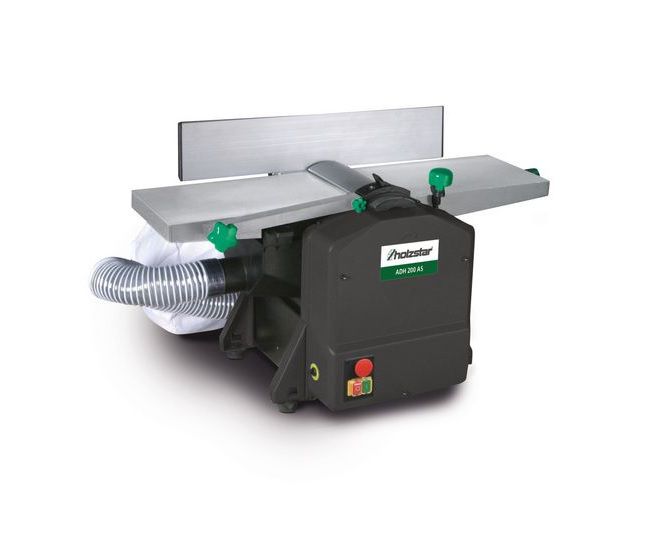

ADH 200 AS Bench Top Planer Thicknesser 205mm x 120mm 1500W 230v
ref: 5905200
Key Features
- ADH 200 AS 205x120mm Planer/Thicknesser + integral dust extractor + 1500W motor 230v
- Ideal for mobile use due to its small and compact design
- Integrated extraction and chip collection bag
- For angular joining (90°) and straightforward dressing of solid wood, boards and strips
- Simple and precise adjustment of the chip removal for dimensionally accurate thickness planing of up to 2 mm
- Geared steel pickup roller for smooth and constant logging
- Rubberised exhaust roller protects the wood surface during thicknessing
- Infinitely tiltable aluminum dressing stop from 90° to 45°
- Dressing and thicknessing table made of milled cast aluminum
- Knife shaft with 2 HSS planing knives
- Powerful 230 Volt motor with 1.5 kW
- Reversible chip extractor hood
Technical details
Dimensions and weights
- Length approx.: 790 mm
- Width/depth approx.: 470 mm
- Height approx.: 465 mm
- Weight approx.: 29 kg
Electrical Data
- Drive motor output: 1,5 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter thickness: 58 mm
Feed
- Speed: 7 m/min
Jointing
- Max. cutting depth: 2 mm
- Planing stop pivoting range: 90 – 45 °
Planing knife shaft
- Type: Strip planer blade shaft
- Number of planing blades: 2 St
- Speed: 8500 min¯¹
- Max. planing width: 204 mm
Thickness
- Working height min.: 5 mm
- Working height max.: 120 mm
- VPE: 1
