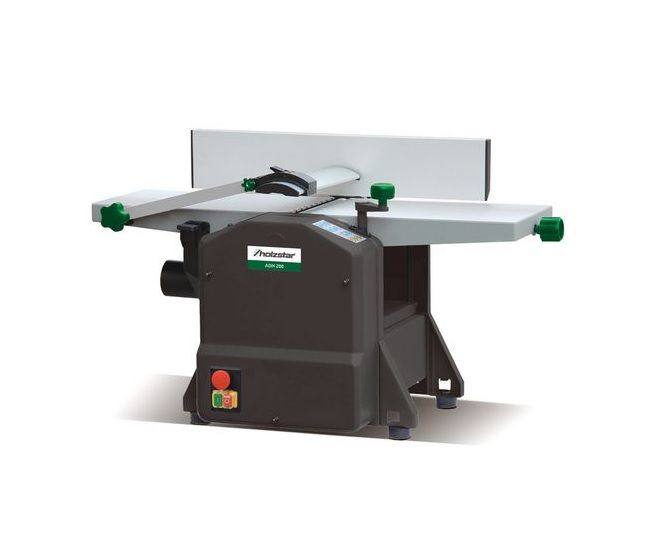

Sturmer Holzstar ADH 200 Bench Top Planer Thicknesser 204mm x 120mm 1500W 230v
Product Code: STU/5905199
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£359.99 Inc. VAT
£299.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Holzstar
ADH 200 Bench Top Planer Thicknesser 204mm x 120mm 1500W 230v
ref: 5905199
Key Features
- ADH 200 204x120mm Planer/Thicknesser + 1500W motor 230v
- Ideal for mobile use thanks to small and compact design
- For angle joints (90°) and precise surface planing of solid wood boards, planks and slats
- Easy and precise adjustment of chip removal in precision thicknessing of up to 2 mm
- Rubberised discharge roller is gentle on the surface in thicknessing operations
- Infinitely pivoting aluminium jointing stop from 90 to +45°
- Jointing and thicknessing table made of cast iron and milled cast aluminium
- Blade shaft with 2 HSS planing knives
- Powerful 230 volt, 1.5 kW motor
- Pluggable chip extraction hood
Technical details
Dimensions and weights
- Length approx.: 790 mm
- Width/depth approx.: 470 mm
- Height approx.: 465 mm
- Weight approx.: 23 kg
Electrical Data
- Drive motor output: 1,5 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter thickness: 58 mm
Feed
- Speed: 7 m/min
Jointing
- Max. cutting depth: 2 mm
- Planing stop pivoting range: 90 – 45 °
Planing knife shaft
- Type: Strip planer blade shaft
- Number of planing blades: 2 St
- Speed: 8500 min¯¹
- Max. planing width: 204 mm
Thickness
- Working height min.: 5 mm
- Working height max.: 120 mm
- VPE: 1
