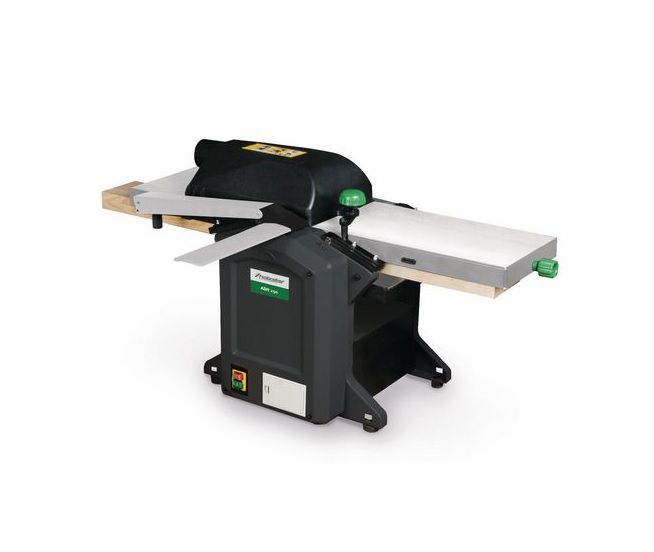

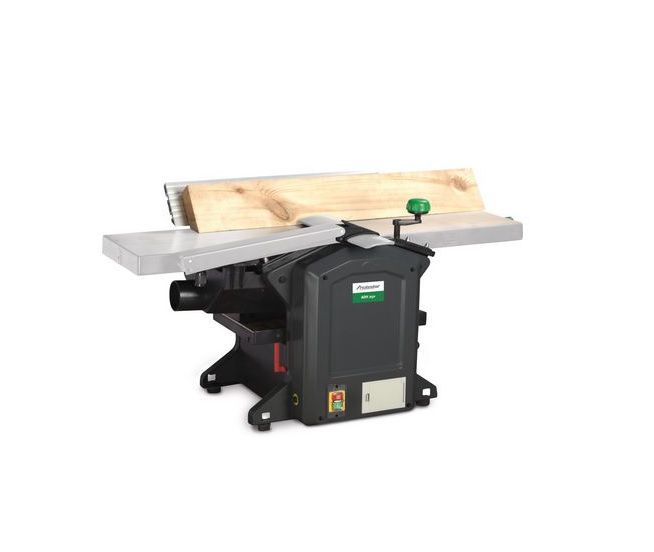

Sturmer Holzstar ADH 250 Bench Top Planer Thicknesser 254mm x 160mm 1500W 230v
Product Code: STU/5905250
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£659.99 Inc. VAT
£549.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Holzstar
ADH 250 Bench Top Planer Thicknesser 254mm x 160mm 1500W 230v
ref: 5905250
Key Features
- ADH 250 254x160mm Planer/Thicknesser + 1500W motor 230v
- Ideal for mobile use due to its small and compact design
- For angular joining (90°) and straightforward dressing of solid wood, boards and strips
- Simple and precise adjustment of the chip removal for dimensionally accurate thickness planing of up to 2 mm
- Automatic workpiece feed
- Rubberised exhaust roller protects the wood surface during thicknessing

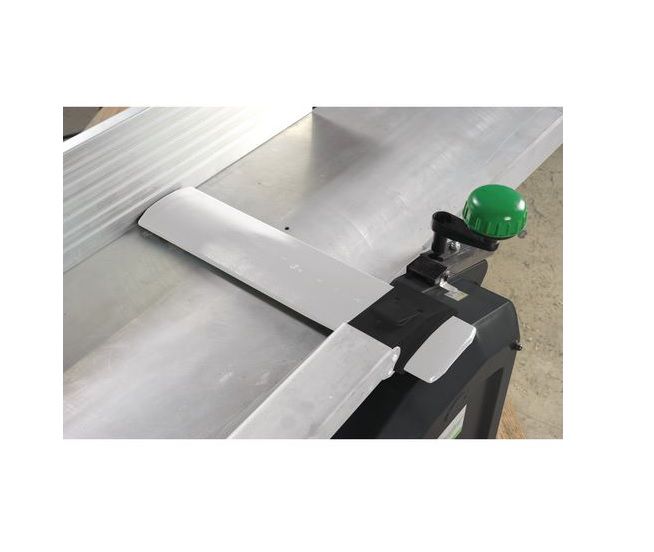

- Infinitely tiltable aluminum dressing stop from 90° to 45°
- Dressing table made of milled cast aluminum
- Knife shaft with 2 HSS planing knives
- Powerful 230 Volt motor with 1.5 kW
- Reversible chip extractor hood
Technical details
Dimensions and weights
- Length approx.: 1105 mm
- Width/depth approx.: 550 mm
- Height approx.: 570 mm
- Weight approx.: 40 kg
Electrical Data
- Drive motor output: 1,5 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter thickness: 80 mm
Feed
- Speed: 7 m/min
Jointing
- Max. cutting depth: 2 mm
- Planing stop pivoting range: 90 – 45 °
Planing knife shaft
- Type: Strip planer blade shaft
- Number of planing blades: 2 St
- Speed: 8500 min¯¹
- Max. planing width: 254 mm
Thickness
- Working height min.: 6 mm
- Working height max.: 160 mm
- VPE: 1
