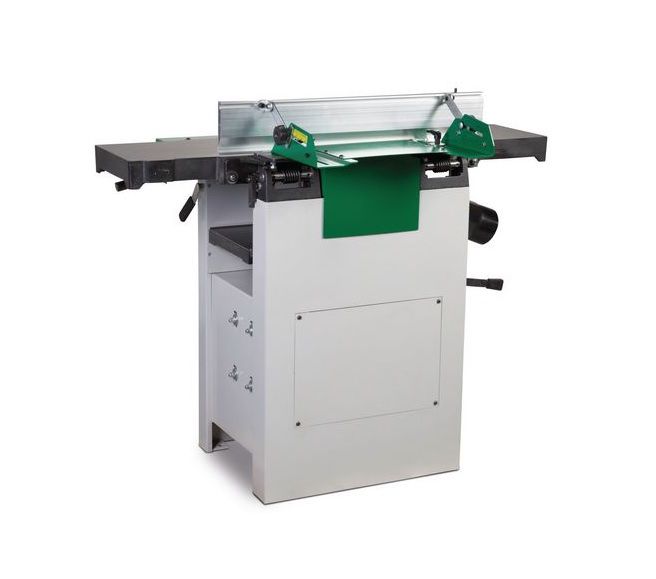

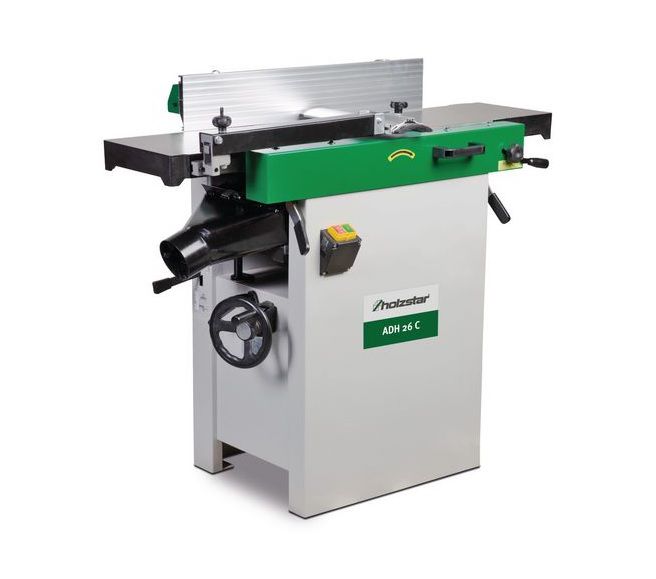

Sturmer Holzstar ADH 26C Planer Thicknesser 258mm x 225mm 1700W 230v
Product Code: STU/5904026
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£1,859.99 Inc. VAT
£1,549.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Holzstar
ADH 26C Planer Thicknesser 258mm x 225mm 1700W 230v
ref: 5904026
Key Features
- ADH 26C 258x225mm Planer/Thicknesser + 3 x HSS planing knives+ 1700W motor 230v
- Surface and thickness planer
- For angular joining (90 °) and straightforward dressing of solid wood boards, planks and strips
- Simple and precise adjustment of the chip removal in dimensionally accurate thickness planing

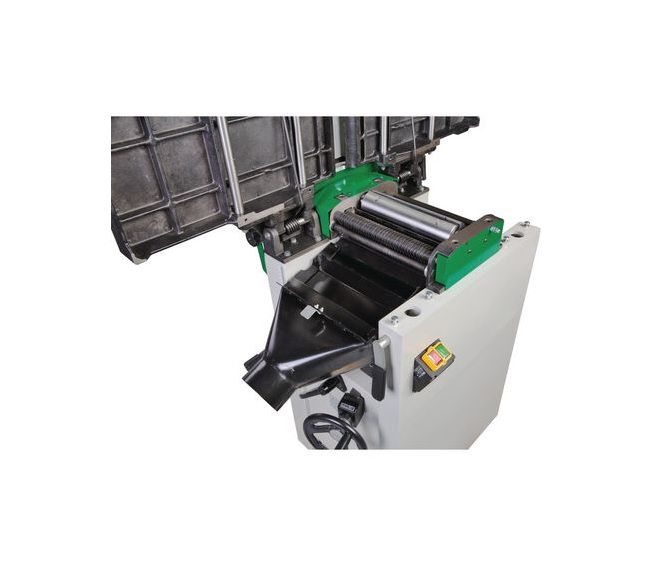

- Automatic workpiece feed

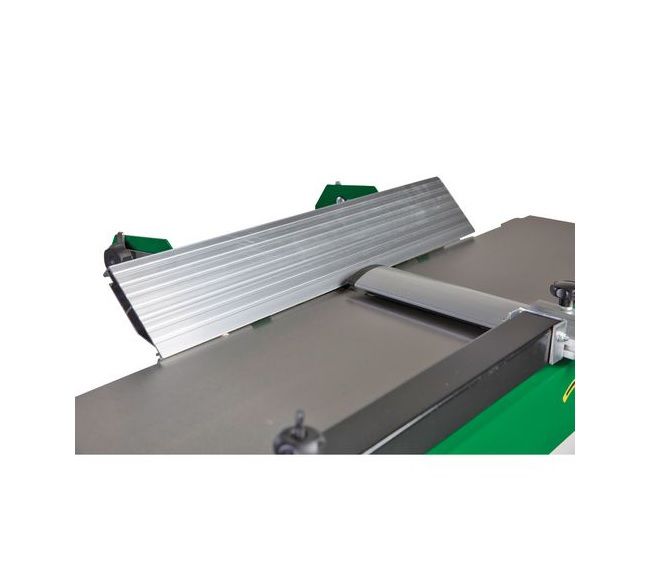

- Easily adjustable aluminum dressing fence, tiltable from 90 ° to + 45 °
- Large dimensioned dressing table made of ribbed die-cast aluminum
- Large thick cast iron table with ground surface
- Integrated, foldable chip extractor hood

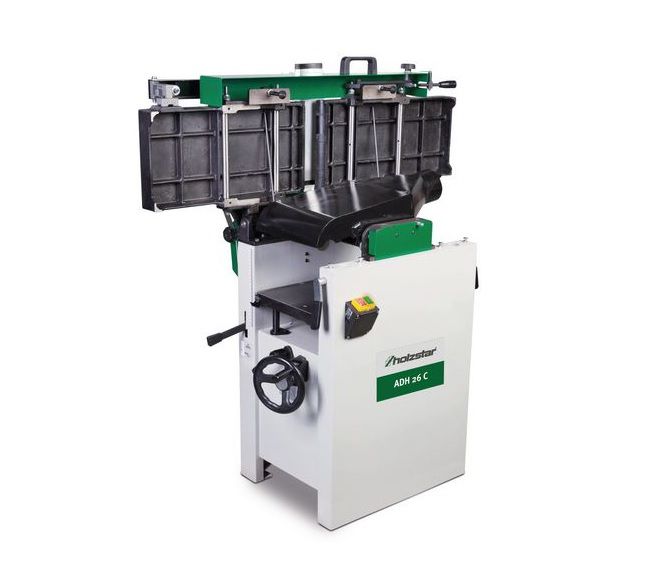

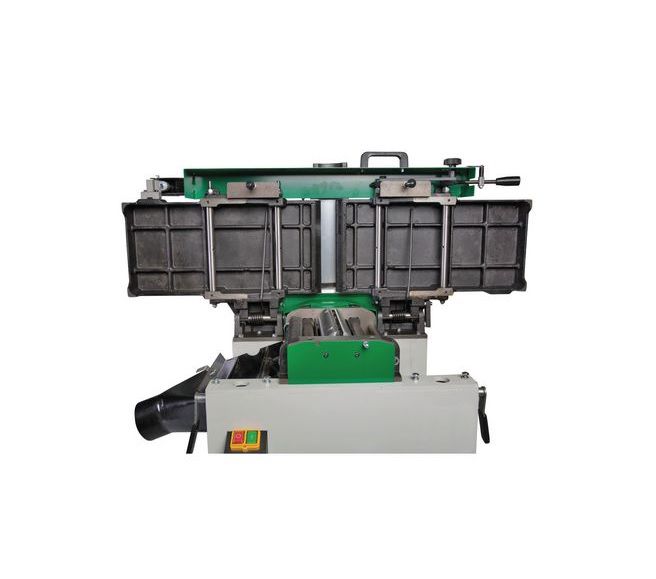

- Simultaneous folding up of the dressing tables with spring support for a quick and easy changeover for thickness planing in seconds
- Thanks to the fixed suction hood, it is no longer necessary to change the suction hose during the conversion
- time-saving
- The table height adjustment is easy and convenient via a handwheel
Technical details
Dimensions and weights
- Length approx.: 1120 mm
- Width/depth approx.: 630 mm
- Height approx.: 960 mm
- Weight approx.: 170 kg
Electrical Data
- Drive motor output: 1.7 kW
- Absorbed power drive motor: 2.3 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter thickness: 100 mm
- Extraction port diameter joints: 100 mm
Feed
- Speed: 5.5 m/min
Jointing
- Max. cutting depth: 3 mm
- Planing stop pivoting range: 90 – 45 °

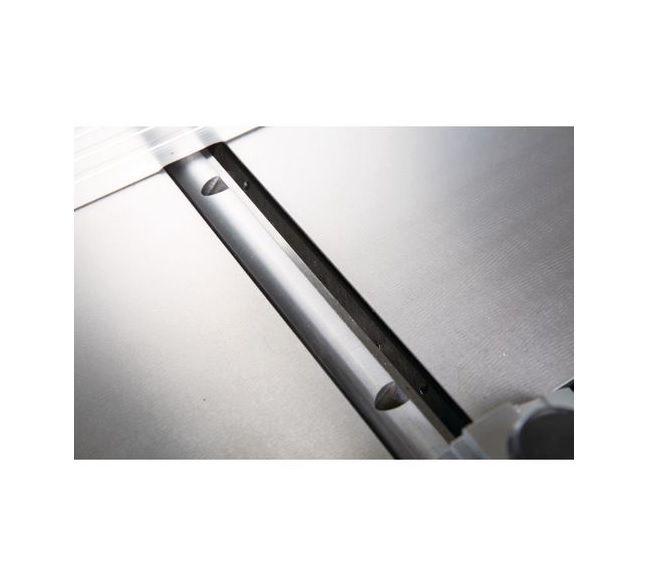

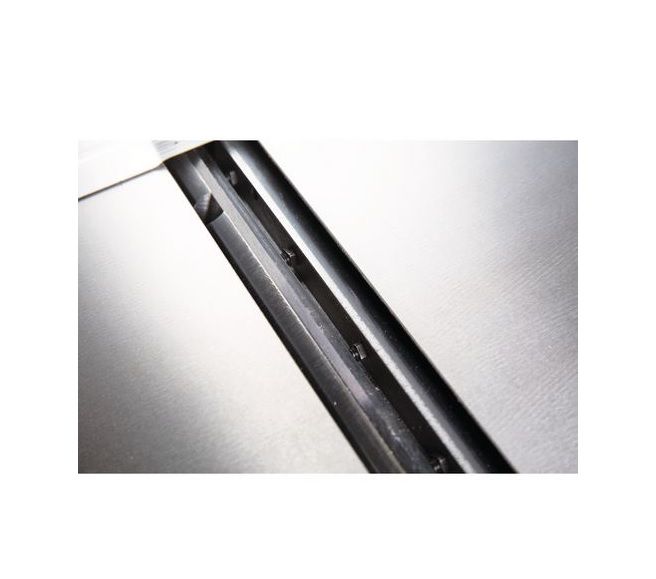

Planing knife shaft
- Type: Strip planer blade shaft
- Number of planing blades: 3
- Speed: 5200 min¯¹
- Max. planing width: 258 mm
Thickness
- Working height min.: 5 mm
- Working height max.: 225 mm
- Max. cutting depth: 3 mm
- VPE: 1
