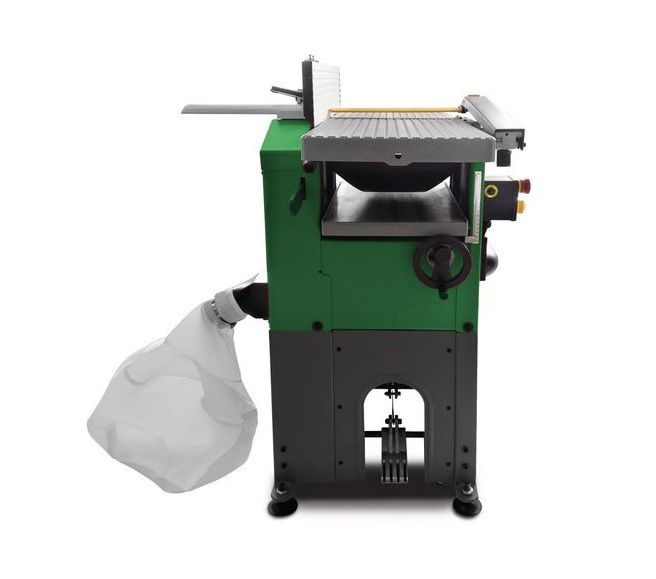

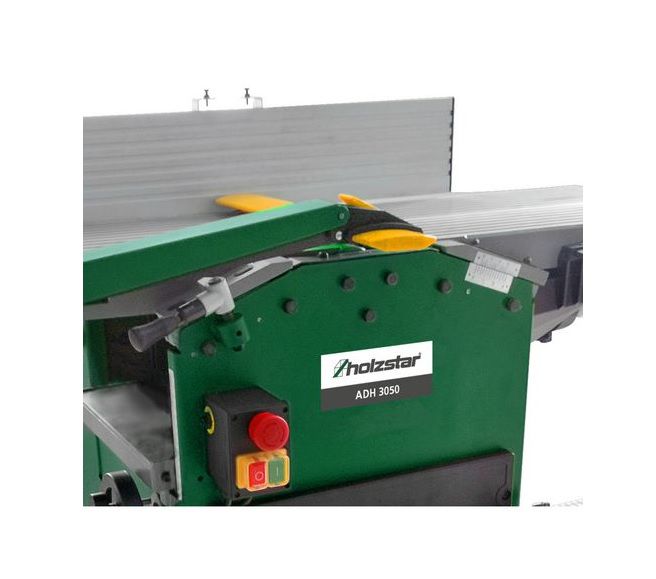

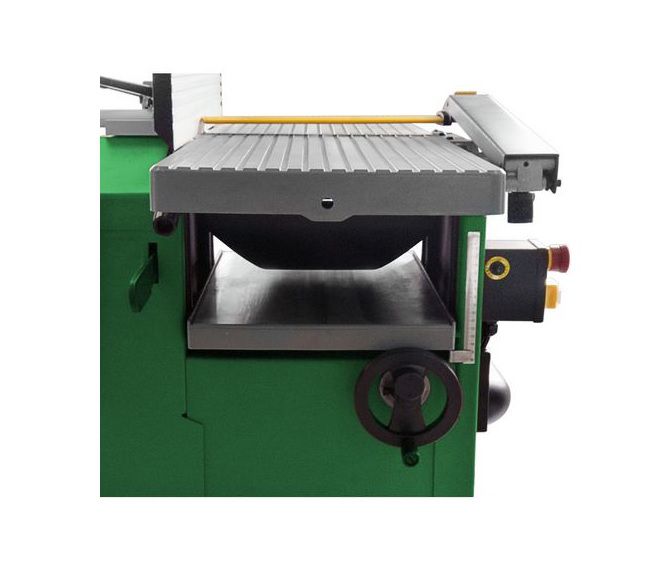

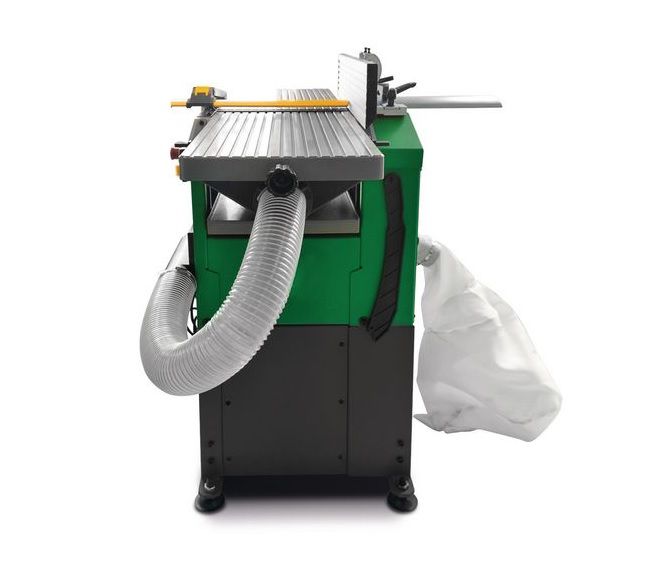

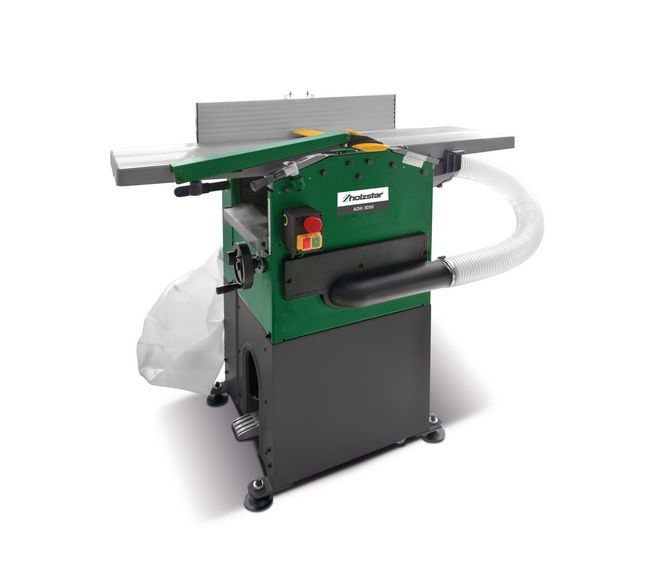

Sturmer Holzstar ADH 3050 Planer Thicknesser 305mm x 160mm 1800W 230v
Product Code: STU/5904130
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£1,439.99 Inc. VAT
£1,199.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Holzstar
ADH 3050 Planer Thicknesser 305mm x 160mm 1800W 230v
ref: 5904130
Key Features
- ADH 3050 AS 305x160mm Planer/Thicknesser + floor stand + Integral dust extraction system + floor standing base unit + 1800W motor 230v
- Surface and thickness planer. Compact model with integrated suction for do-it-yourselfers and craftsmen
- For angular joining (90°) and precise planing of solid wood boards and moldings
- Automatic workpiece feed
- Rubberized extraction roller protects the wood surface when planing thick

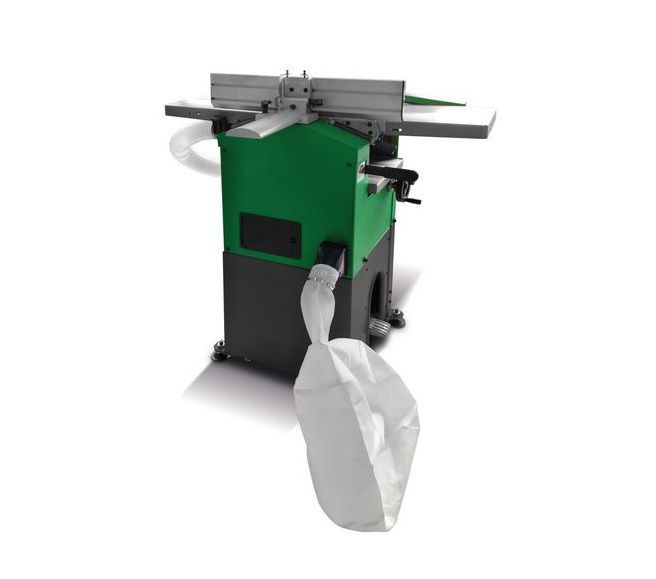

- Suction integrated in the substructure

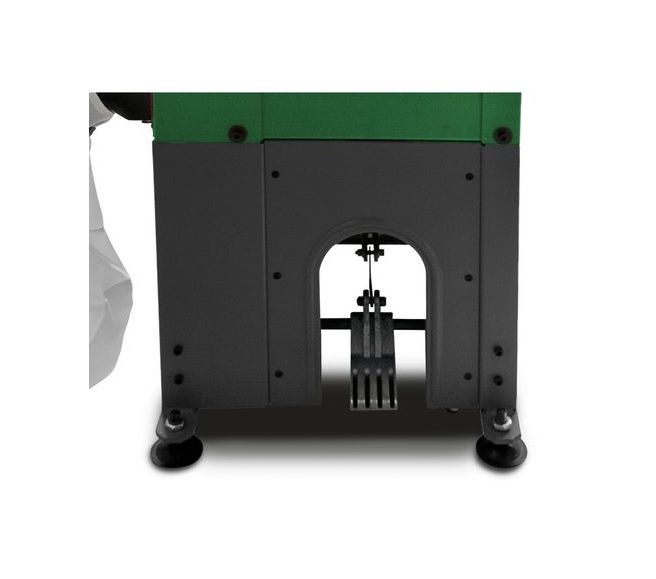

- With chassis as standard
- Simple and precise adjustment of the chip removal
- Dressing table made of milled cast aluminum
- Space-saving compact design
Technical details
Dimensions and weights
- Length approx.: 1140 mm
- Width/depth approx.: 800 mm
- Height approx.: 1075 mm
- Weight approx.: 93 kg
Electrical Data
- Drive motor output: 1.25 kW
- Absorbed power drive motor: 1,8 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Suction hood connection diameter: 100 mm
- Suction unit connection diameter: 75 mm
Feed
- Speed: 8.5 m/min
Jointing
- Max. cutting depth: 3 mm
- Planing stop pivoting range: 90 – 45 °
Planing knife shaft
- Type: Strip planer blade shaft
- Number of planing blades: 2 St
- Speed: 6700 min¯¹
- Max. planing width: 305 mm
Thickness
- Working height min.: 6 mm
- Working height max.: 160 mm
- Working length min.: 250 mm
- Max. cutting depth; 2 mm
- VPE: 1
