Sturmer Holzstar BSM-H 16 Bench Top Mortiser with Chisels 370W 230v

X
Product Code: STU/5906116
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£399.98 Inc. VAT
£333.32 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Holzstar

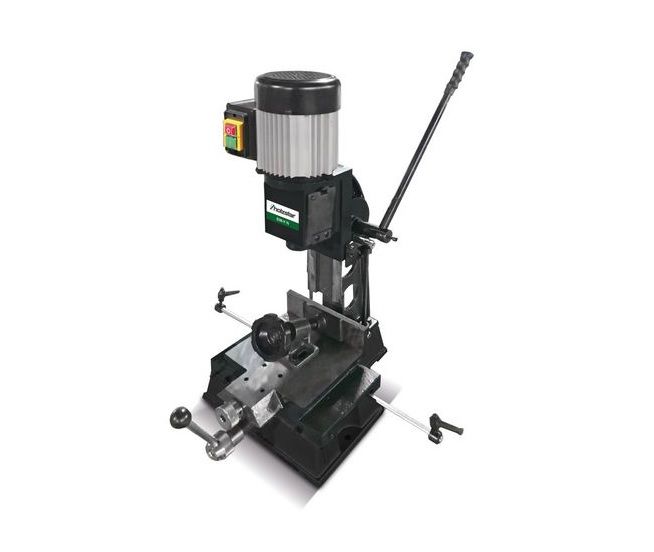

BSM-H 16 Bench Top Mortiser with Chisels 370W 230v

ref: 5906116



Key Features

  • BSM-H 16 Bench top mortiser + cast iron construction + dovetail guides + 6-16mm mortising cap + inc 1/4"/3/8"/1/2" chisels & bits + 370W motor 230v
  • For easy production of slot-pin connections
  • Solid cast construction of the machine frame with precise dovetail guides in each axis
  • Long lever for quill stroke for chiseling out with little effort
  • Movable clamping jaws can be mounted in three different positions
  • Two adjustable stops each for X and Y direction
  • The machine head is additionally held with a gas pressure spring for easier handling
  • Tool holder via drill chuck with gear rim



Items included

  • 1x gouge 6,35mm (1/4")
  • 1x gouge 9,5mm (3/8")
  • 1x gouge 12,7mm (1/2")



Technical details

Dimensions and weights

  • Length approx.: 270 mm
  • Width/depth approx.: 480 mm
  • Height approx.: 780 mm
  • Weight approx.: 39 kg

Electrical Data

  • Rating: 0.37 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Spindle

  • Max. height of workpiece: 110 mm
  • Max. depth of workpiece: 125 mm
  • Max. Chisel stroke: 76 mm
  • Chisel sizes: 6 – 16 mm
  • Drill chuck mount: B16-13mm
  • Speed: 1400 min¯¹

Work top(s)

  • Work table lenth: 180 mm
  • Work table width: 150 mm
  • Table travel X: 80 mm
  • Table travel Y: 65 mm
  • VPE: 1
