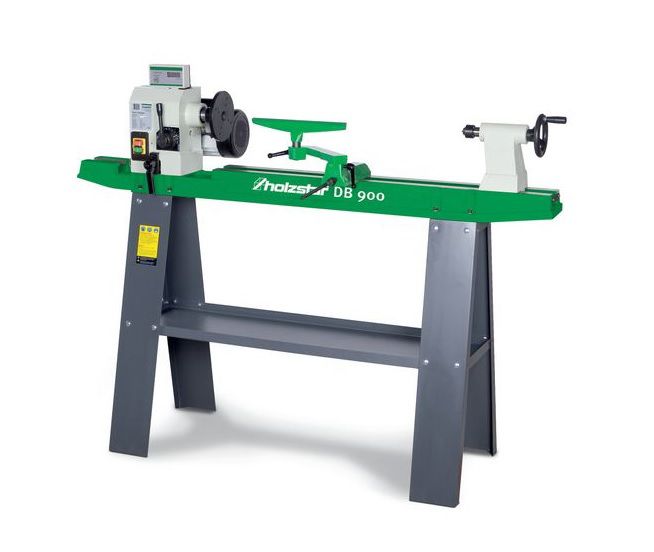

Sturmer Holzstar DB 900 Woodturning Lathe 900mm x 306mm 550W 230v
Product Code: STU/5920900
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£799.99 Inc. VAT
£666.66 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Holzstar
DB 900 Woodturning Lathe 900mm x 306mm 550W 230v
ref: 5920900
Key Features
- DB 900 Woodturning lathe + cast iron machine bed + 900x306mm capacity + variable speed (500-2000 rpm) + digital display + 180dg rotating headstock for large bowl turning 550W motor 230v
- Torsionally rigid gray cast iron machine bed for smooth running and precision
- Tailstock and headstock also made of sturdy gray cast iron
- Wide, easily adjustable turning steel support
- Tailstock with quick release lever and handwheel
- Tailstock (stroke 50 mm) as standard with revolving center point
- Tailstock quill with bore for machining long workpieces
- Variable speed regulation from 500 - 2000 min-1 with digital speed display
- The headstock can be rotated by 180°
- Ideal for turning large diameter
Items included
- Face plate Ø 15 cm
- Revolving tailstock tip
- substructure
- Four zag face driver
Technical details
- Max. turning diameter: 306 mm
- Speeds: 500 - 2000 min¯¹
- Speed stages: 10
- Speed control: Electronically variable
- Travel of tailstock sleeve: 50 mm
- VPE: 1
Dimensions and weights
- Length approx.: 1380 mm
- Width/depth approx.: 330 mm
- Height approx.: 1175 mm
- Weight approx.: 77 kg
Electrical Data
- Supply voltage: 230 V
- Mains frequency: 50 Hz
