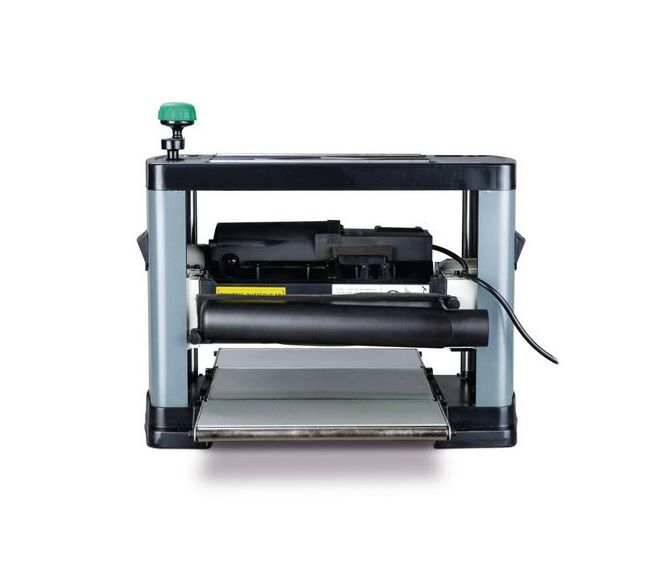

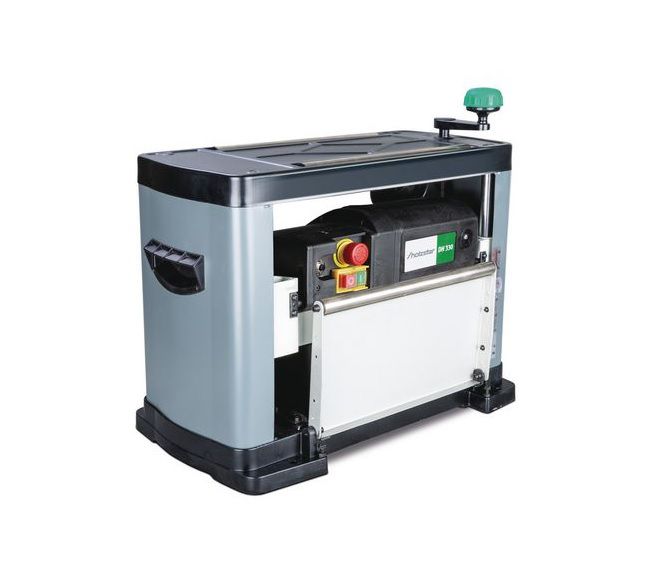

Sturmer Holzstar DH 330 Bench Top Thicknesser 330mm x 152mm 1500W 230v
Product Code: STU/5904330
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£449.99 Inc. VAT
£374.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Holzstar
DH 330 Bench Top Thicknesser 330mm x 152mm 1500W 230v
ref: 5904330
Key Features
- DH 330 330x152mm Thicknesser + Foldaway exten tables & feed rollers + 1500W motor 230v
- portable thicknessing planer with 330 mm planing width

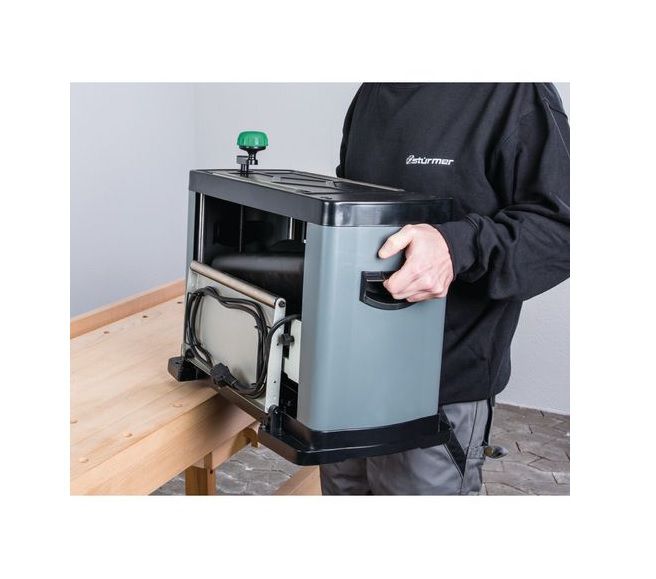

- Ideal for mobile use thanks to small, lightweight and compact design
- Robust welded steel design with stable cast worktop
- For processing solid wood

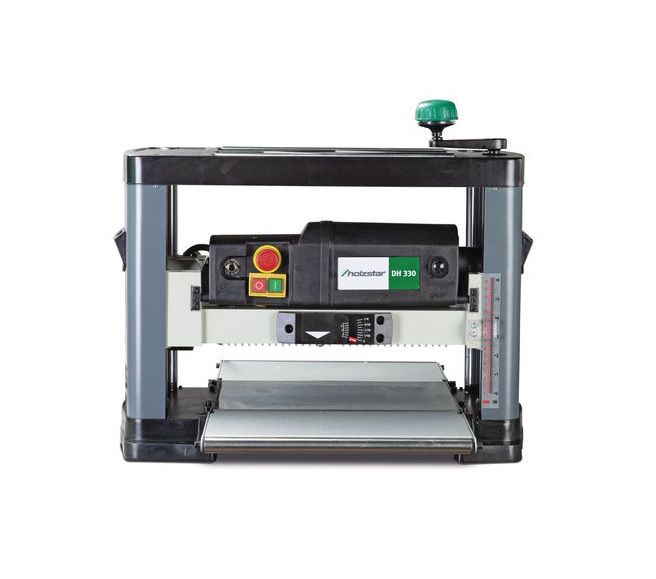

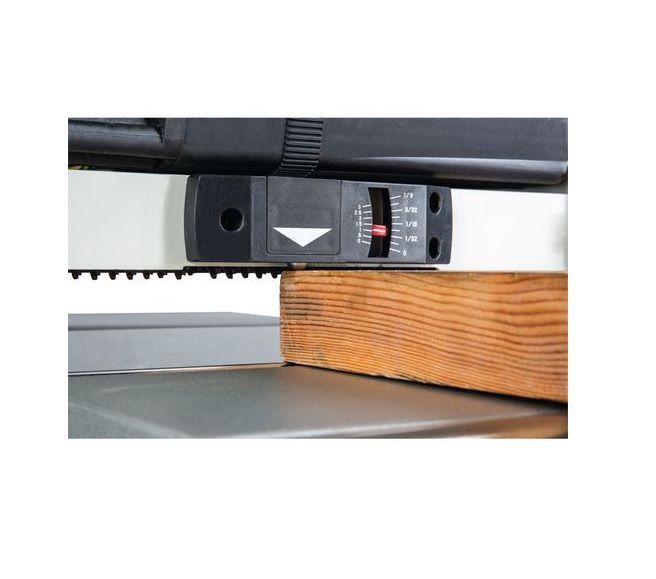

- Easy and precise adjustment of material removal with mechanical display
- Powerful motor with overcurrent protection and restart safeguard

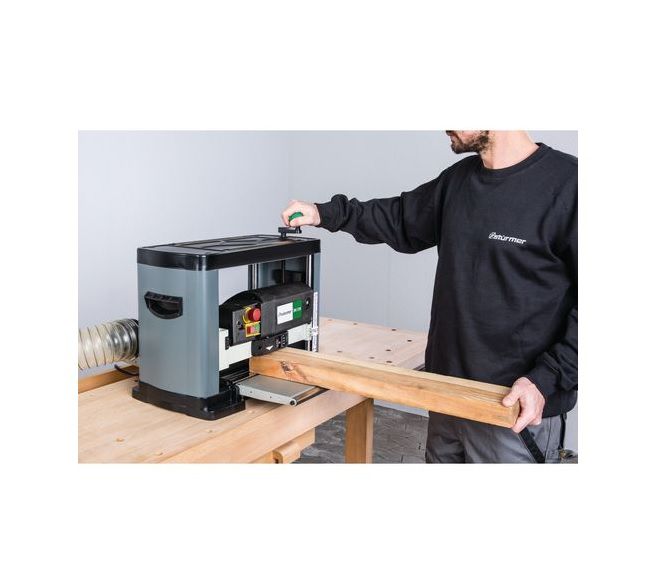

- Easy and precise height adjustment with crank and clear-cut scale

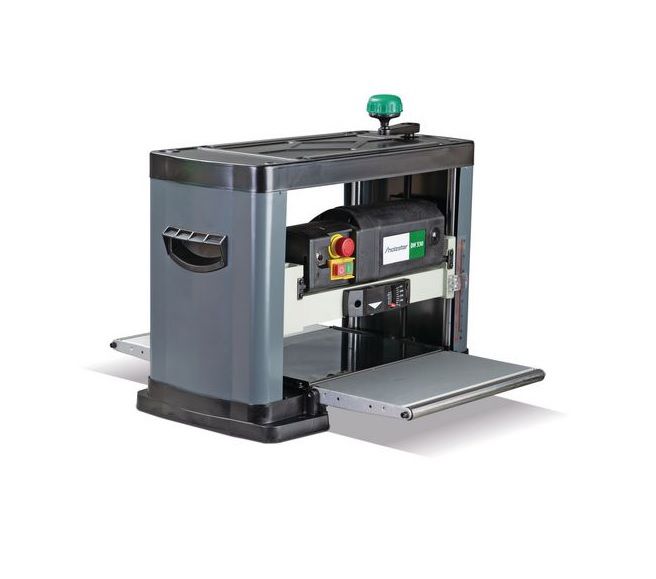

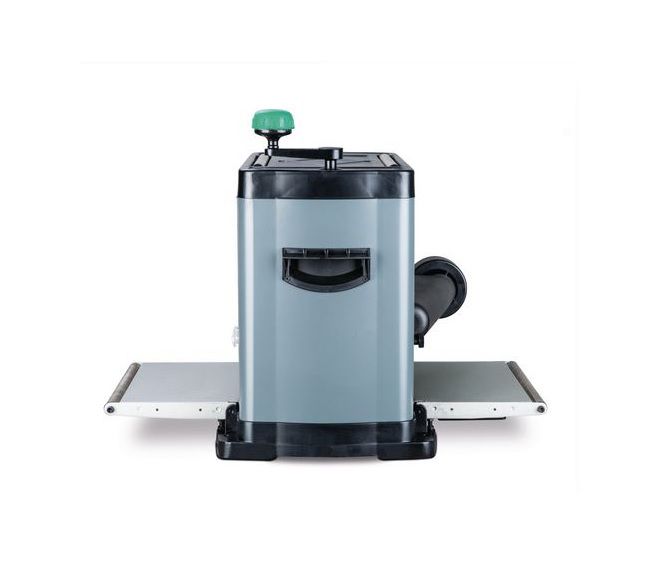

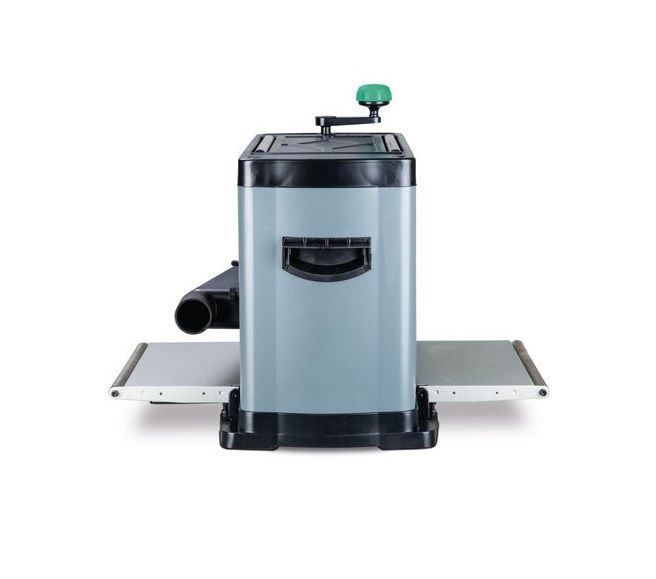

- Fold-away feed and discharge tables with rollers for long workpieces

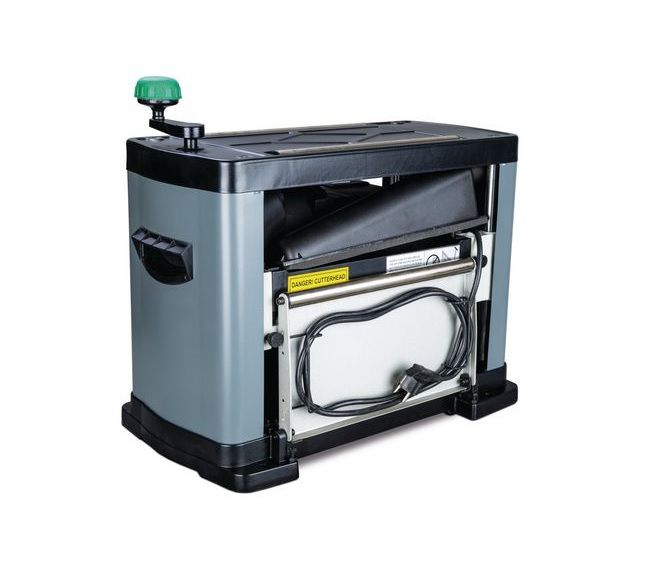

- With mains cable holder below the discharge table
- Integrated extraction funnel Ø 58 mm
- Extraction adapter to Ø 100 mm included in scope of delivery
- Four holes Ø 10 mm in machine base for fastening on workbenches
- Includes: Crank, Extraction funnel, Extraction adapter 64,5 mm / 101 mm, 2 magnets for blade change, Allen key
Technical details
Dimensions and weights
- Length approx.: 640 mm
- Width/depth approx.: 585 mm
- Height approx.: 490 mm
- Weight approx.: 33 kg
Electrical Data
- Drive motor output: 0.9 kW
- Absorbed power drive motor: 1,5 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter thickness: 52.5 mm
Feed
- Speed: 6 m/min
Jointing
- Max. cutting depth: 2.8 mm
Planing knife shaft
- Type: Strip planer blade shaft
- Number of planing blades: 2
- Speed: 8500 min¯¹
- Max. planing width: 330 mm
Thickness
- Working height min.: 6 mm
- Working height max.: 152 mm
- Max. cutting depth: 2,8 mm
- VPE: 1
