Sturmer Holzstar FKS 255-1300 Sliding Table Saw 254mm 2100W 230v
Product Code: STU/5902035
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£1,899.98 Inc. VAT
£1,583.32 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Holzstar

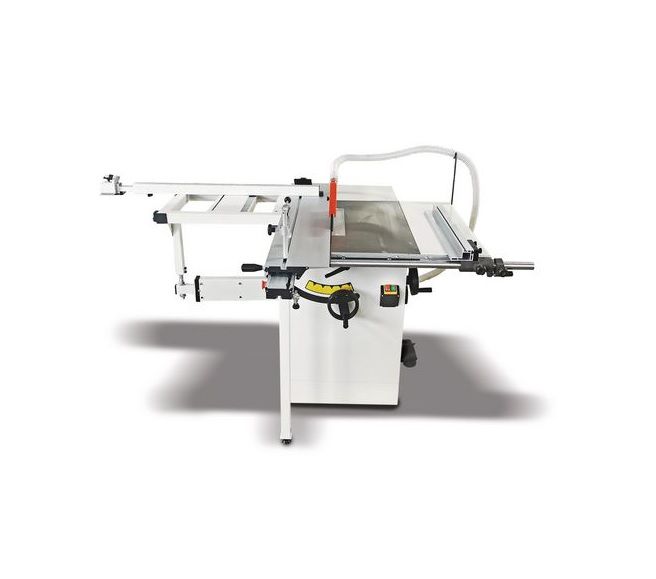

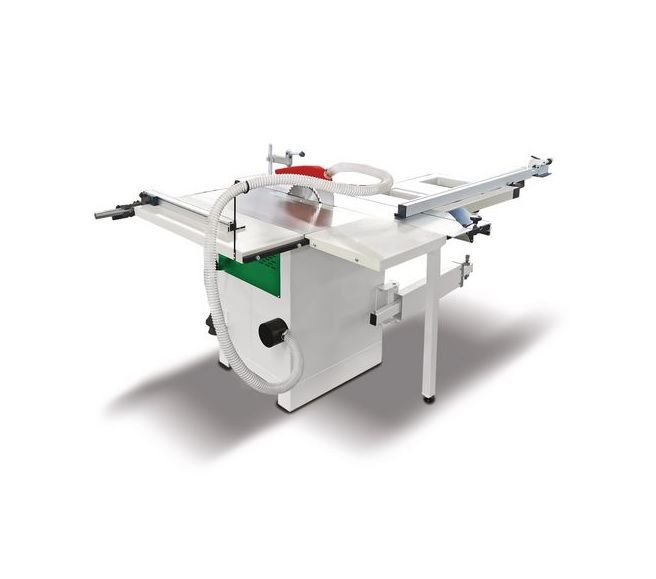

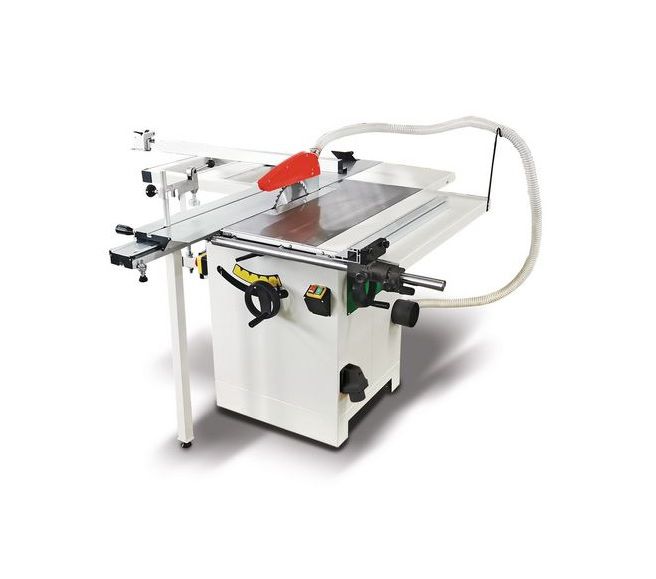

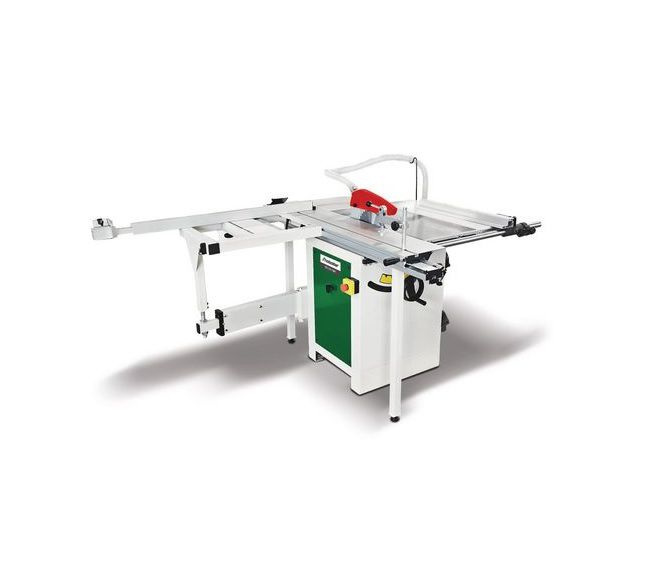

FKS 255-1300 Sliding Table Saw 254mm 2100W 230v
ref: 5902035
Key Features
- FKS 255-1300 254mm Dia sawbench package + 80mm max depth of cut + outrigger sliding table carriage w telescopic support arm + telescopic sliding length extn + table width & length extentions + 2.1 kW motor 230v
- Heavy grey cast iron work table for low-vibration work and precise, straight cuts

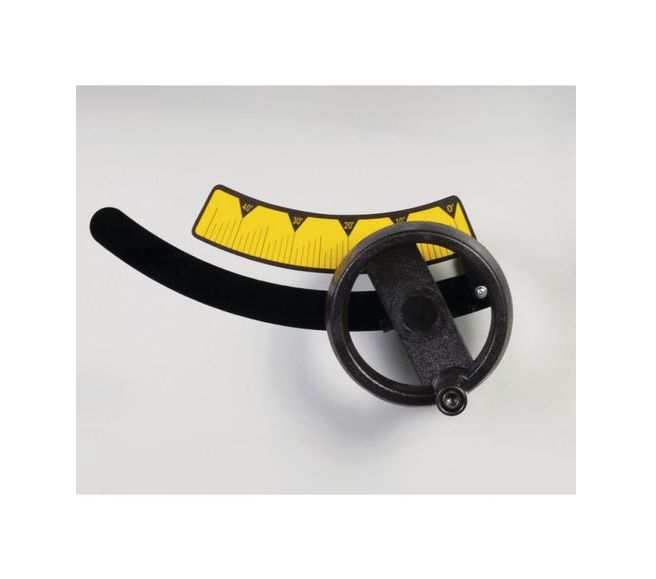

- Saw unit can be swivelled up to 45 degrees, adjustment via handwheel
- Cutting plane directly on the saw blade

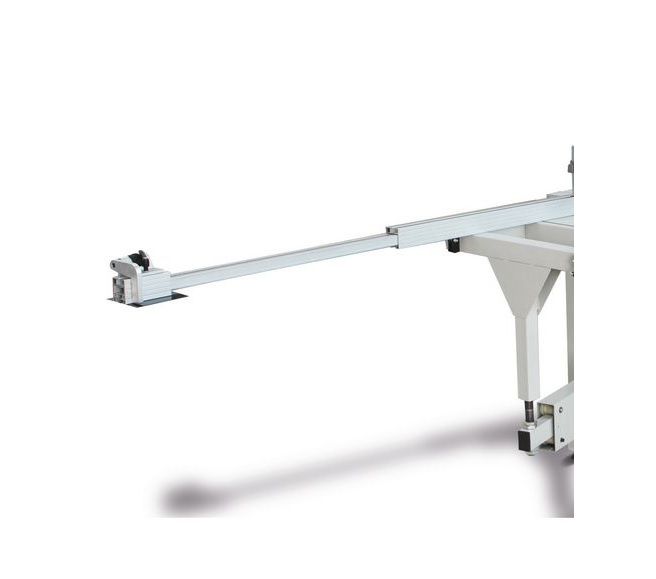

- Table boom with extendable telescopic stop and two folding stops for plates and large workpieces
- Telescopic stop swivelling by 45 degrees on both sides
- Aluminum parallel stop on round rod guide with fine adjustment
- Standard table widening and extension allow easy work with larger workpieces
- Large central suction connection with 100 mm diameter
- Handle for sliding carriage ✔
- Saw rip fence: with round rod guide
- Table broadening ✔
- Table lengthening ✔
- Saw blade cover ✔
- No scoring unit on this machine
Items included
- Trimming shoe
- Eccentric tensioner
- Angular stop -45° to 45°
- Circular saw blade 254 x 30 x 3.0 mm Z40
Technical details
Circular saw unit
- Max. cutting width with rip fence: 610 mm
- Max. cross cut width left from saw blade: 845 mm
- Trimming length: 1250 mm
- Saw blade angle: 90 – 45 °
- Max. cutting height 90°: 80 mm
- Max. cutting height 45°: 54 mm
- (Main) saw blade diameter: 254 mm
- (Main) saw blade speed: 4000 min¯¹
Dimensions and weights
- Length approx.: 1320 mm
- Width/depth approx.: 1750 mm
- Height approx.: 1120 mm
- Weight approx.: 155 kg
Electrical Data
- Absorbed power drive motor: 2.1 kW
- Total rated value: 9.3 A
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter bottom: 100 mm
- Saw blade protection extraction port diameter: 30 mm
Noise emission
- Sound pressure level: 83.7 dB(A)
Sliding carriage and table
- Trimming frame length: 600 mm
- Trimming frame width: 460 mm
- Sliding carriage length: 1320 mm
- Sliding carriage width: 238 mm
- Table length: 790 mm
- Table width: 350 mm
- Work height: 835 mm
- VPE: 1
