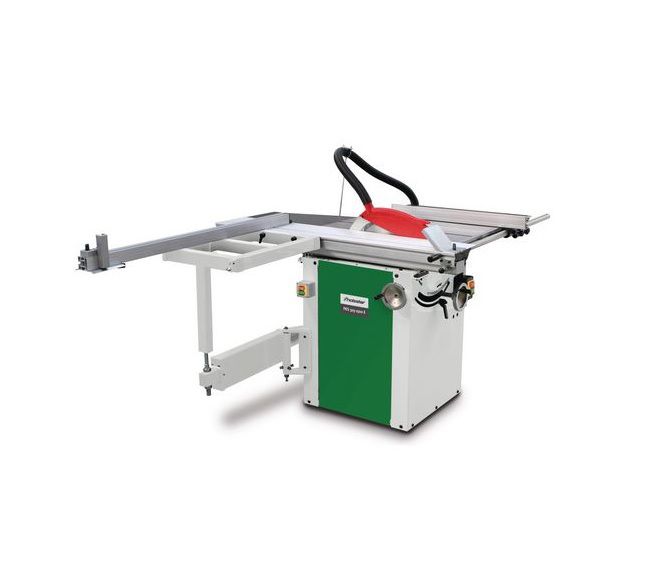

Sturmer Holzstar FKS 315-1500 E Sliding Table Saw 315mm 3000W 415v
Product Code: STU/5900315
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£2,398.80 Inc. VAT
£1,999.00 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Holzstar
FKS 315-1500 E Sliding Table Saw 315mm 3000W 415v
ref: 5900315
Key Features
- FKS 315-1500 E 315mm Dia sawbench package + 100mm max depth of cut + outrigger sliding table carriage w telescopic support arm + telescopic sliding length extn + table width & length extentions + 3 kW motor 415v
- Work table made of grey cast iron for low-vibration work
- Saw unit swivels up to 45 degrees, adjustment via handwheel with scale
- Telescopic stop can be swivelled by 45° on both sides and extendable
- Saw blade height adjustable via handwheel
- Cutting plane directly on the saw blade
- Standard table widening and extension allow easy work with larger workpieces
- Large aluminium parallel stop on round rod guide with fine adjustment
- Large central suction connection with a diameter of 100 mm
- Saw blade protection hood with suction nozzle diameter 38 mm
Items included
- Sliding tray with boom
- Edging shoe
- Rip fence with round bar guide and fine adjustment
- Saw blade guard with suction hose
- Table extension and widening
- Saw blade 315 x 30 x 3 mm 24 teeth
Technical details
Circular saw unit
- Max. cutting width with rip fence: 940 mm
- Trimming length: 1370 mm
- Saw blade angle: 90 – 45 °
- Max. cutting height 90°: 100 mm
- Max. cutting height 45°: 75 mm
- (Main) saw blade diameter: 315 mm
- (Main) saw blade speed: 4250 min¯¹
Dimensions and weights
- Length approx.: 3480 mm
- Width/depth approx.: 2430 mm
- Height approx.: 1270 mm
- Weight approx.: 202 kg
Electrical Data
- Absorbed power drive motor: 3,0 kW
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter bottom: 100 mm
- Saw blade protection extraction port diameter: 38 mm
Sliding carriage and table
- Table length: 760 mm
- Table width: 350 mm
- Work height: 870 mm
- VPE: 1
